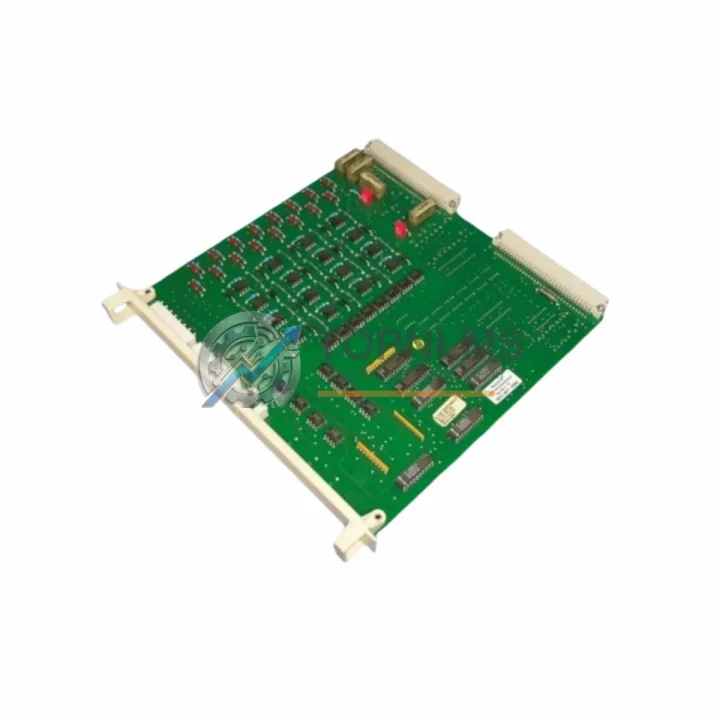

ABB 3BHE012276R0102 Ruggedized Excitation Control Module

Product Overview

ABB 3BHE012276R0102 Ruggedized Excitation Control Module: Industrial Resilience for Harsh Environments

The ABB 3BHE012276R0102 is a high-reliability excitation control board engineered for the UNITROL Series automatic voltage regulator (AVR) platform — one of ABB’s most trusted generator excitation control architectures deployed across global power generation, heavy industry, and critical infrastructure facilities. Designed to operate continuously under demanding electrical and environmental conditions, this module delivers precise voltage regulation and excitation management where failure is not an option.

In industrial environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI), standard control electronics frequently degrade or fail prematurely. The 3BHE012276R0102 addresses these challenges through robust PCB construction, conformal coating on sensitive circuit areas, and ABB’s proven UNITROL signal processing architecture — ensuring stable excitation output even in the most punishing operational conditions.

Whether installed in a synchronous generator control cabinet at a hydroelectric plant, a gas turbine facility, a mining substation, or a steel mill power house, this board maintains consistent AVR performance across the full operating temperature range. Its compatibility with the broader UNITROL 5000 and UNITROL 6000 control system families means it integrates seamlessly with existing ABB excitation hardware, reducing commissioning time and minimizing the risk of system incompatibility during replacement or upgrade projects.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3BHE012276R0102 does not operate in isolation — it is a critical node within a broader excitation and generator protection ecosystem. In a typical UNITROL-based generator control cabinet, this board works in concert with the ABB UNITROL 5000 AVR main controller, which manages the overall voltage regulation loop, and the ABB 3BHE022707R0101 field flashing module, which provides initial excitation current during generator startup sequences.

For installations requiring redundant protection, the board is commonly paired with the ABB REG216 generator protection relay or the ABB REX521 feeder protection relay, both of which monitor generator output parameters and trigger protective shutdowns in the event of over-excitation, under-excitation, or loss-of-field conditions. These protection relays communicate via IEC 61850 GOOSE messaging or hardwired I/O, depending on the substation automation architecture in use.

On the power supply side, the excitation control board draws regulated DC from an ABB CP-E series industrial power supply or equivalent DIN-rail mounted SMPS unit, which must maintain tight voltage regulation to prevent excitation instability. In facilities where power quality is a concern — particularly in arc furnace plants or rolling mills with heavy motor loads — an ABB ACS880 industrial drive or ACS580 variable frequency drive may be installed upstream to condition motor loads and reduce harmonic disturbances that could otherwise affect the excitation control loop.

Communication between the UNITROL AVR and the plant DCS is typically handled through an ABB AC800M controller or via a dedicated PROFIBUS DP communication module, enabling remote monitoring of excitation parameters, reactive power output, and power factor from the central control room. In legacy installations, ABB INSUM intelligent motor control or ABB Advant OCS systems may interface with the UNITROL platform through serial Modbus RTU links.

For field engineers performing maintenance or commissioning, the ABB UNITROL Panel (UNP) local operator interface provides direct access to excitation setpoints, fault logs, and parameter configuration — eliminating the need for a laptop connection during routine checks. This combination of intelligent control, robust protection, and flexible communication makes the 3BHE012276R0102 a cornerstone component in any ABB-based generator excitation system.

Application in Critical Infrastructure

The ABB 3BHE012276R0102 excitation control board finds its most demanding applications in sectors where generator reliability directly determines operational continuity and safety outcomes.

In oil and gas facilities — including offshore platforms, LNG terminals, and onshore processing plants — generator sets must maintain stable voltage output despite rapidly fluctuating load profiles caused by compressor startups, electric heat tracing systems, and variable-speed pump drives. The UNITROL excitation system, anchored by this control board, provides the fast transient response required to prevent voltage collapse during sudden load application events.

In mining operations, particularly underground coal mines and open-pit copper or iron ore facilities, generators powering ventilation fans, hoisting equipment, and dewatering pumps are subject to continuous mechanical vibration, coal dust ingress, and wide ambient temperature swings. The ruggedized construction of the 3BHE012276R0102 ensures sustained performance in these conditions without requiring frequent recalibration or board replacement.

At hydroelectric and thermal power stations, this board is a standard spare part for UNITROL-equipped synchronous generators ranging from small run-of-river units to large utility-scale machines. Plant operators maintain buffer stock of this module to enable rapid swap-out during scheduled maintenance outages, minimizing generation downtime and avoiding costly emergency procurement.

In metallurgical plants — steel mills, aluminum smelters, and copper refineries — the combination of high ambient temperatures, intense electromagnetic fields from arc furnaces, and aggressive airborne contaminants creates one of the harshest environments for electronic control equipment. The 3BHE012276R0102’s design margins and ABB’s industrial-grade component selection make it one of the few excitation control boards capable of delivering long service life in these conditions.

Water treatment and wastewater facilities rely on this module to maintain stable generator output for critical pumping stations and aeration systems, where power interruptions can have immediate environmental and public health consequences. The board’s compatibility with ABB’s protection relay ecosystem ensures that any excitation anomaly is detected and isolated before it can escalate to a generator trip or equipment damage event.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BHE012276R0102?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If the board fails to perform its specified excitation control functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every ABB 3BHE012276R0102 unit dispatched by TOPNLMS undergoes a pre-shipment functional inspection that includes visual examination for PCB damage, component integrity checks, and where applicable, power-on verification testing. Units sourced as surplus new are inspected against ABB’s original packaging and labeling standards. Refurbished units are tested to confirm correct signal processing behavior before dispatch. A test report is available upon request for critical procurement applications.

Q3: Is the 3BHE012276R0102 compatible with all UNITROL AVR variants?
The 3BHE012276R0102 is specifically designed for the UNITROL series AVR platform. Compatibility depends on the specific UNITROL variant (e.g., UNITROL 5000, UNITROL 6000) and the hardware revision of the host system. Buyers are advised to confirm the existing board revision and system configuration before ordering. TOPNLMS technical staff can assist with cross-referencing ABB documentation to verify compatibility for your specific installation.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains ongoing sourcing relationships for ABB UNITROL series components and can support both immediate single-unit requirements and longer-term blanket order arrangements for maintenance programs. For power plants or industrial facilities that rely on UNITROL-equipped generators, we recommend establishing a standing spare parts agreement to ensure availability of the 3BHE012276R0102 and related modules without lead-time risk. Contact our team to discuss volume pricing and supply continuity options.
