ABB 3BHE009319R0001 Replacement Solution for UNS2881B

Product Overview

ABB 3BHE009319R0001 Replacement Solution for UNS2881B: Seamless Transition from Legacy Drive Control Systems

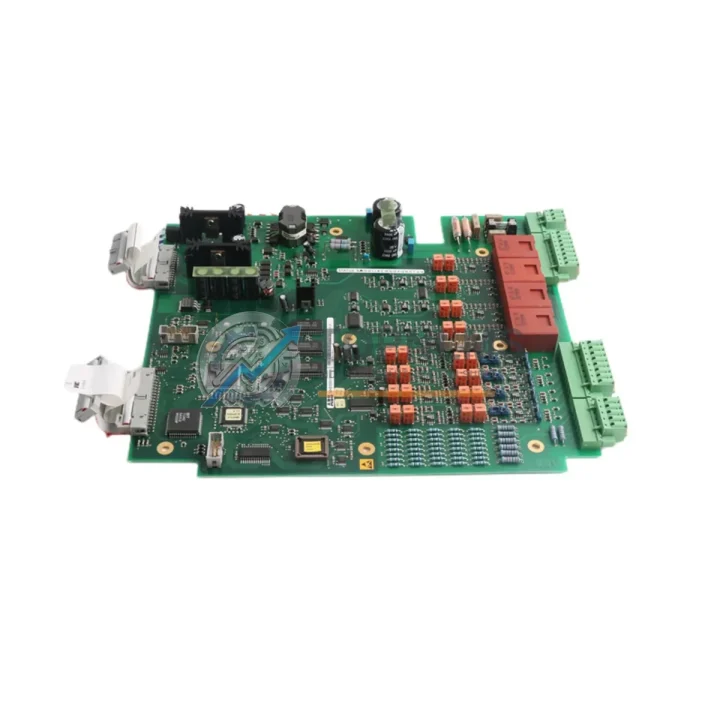

The ABB 3BHE009319R0001 UNS2881B-P is a drive control PC board module engineered for ABB’s UNITROL and AC800PEC excitation and drive control platforms. As legacy UNS2881B-series boards reach end-of-life or suffer field failures, plant engineers and procurement teams face mounting pressure to restore system availability without triggering a full drive cabinet overhaul. This module provides a verified, drop-in replacement path that preserves existing wiring harnesses, backplane connectors, and firmware communication structures — dramatically reducing retrofit engineering hours and unplanned downtime.

Whether you are migrating from a failed UNS2881B board in an ABB UNITROL 5000 or UNITROL 6000 excitation system, or replacing a degraded control card within an AC800PEC-based drive cabinet, the 3BHE009319R0001 restores full drive control functionality without requiring changes to the existing control rack, power supply wiring, or field bus topology. The board interfaces directly with the existing SDCS-CON-4 or compatible control backplane, maintaining the same I/O signal mapping and parameter memory structure that your commissioning team originally configured.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or obsolete UNS2881B-series drive control board rarely involves a single component in isolation. In practice, field engineers replacing the 3BHE009319R0001 UNS2881B-P often simultaneously address adjacent modules that have accumulated equivalent operating hours or that share the same failure mode. Within the same UNITROL or AC800PEC control cabinet, the UNS0776A-P pulse transformer board and the UNS0881A firing circuit module are common co-replacement candidates, as they operate in close electrical coupling with the drive control board and are subject to the same thermal and voltage stress cycles.

For sites running ABB’s AC800PEC platform in a broader DCS architecture, the replacement of the drive control board is frequently coordinated with a review of the PM866 or PM891 processor modules in the main control rack. These processor modules govern the high-level control logic that issues setpoint commands to the drive layer, and ensuring their firmware is current before commissioning the replacement 3BHE009319R0001 eliminates the most common source of post-swap communication faults. Similarly, the CI854 PROFIBUS communication interface module should be verified for correct configuration, as it bridges the drive control board to the plant DCS network.

On the power supply side, the SD831 or SD832 24 VDC power supply modules that feed the UNITROL rack should be inspected during any board-level replacement. A degraded rack power supply is a frequent root cause of repeated drive control board failures, and replacing the 3BHE009319R0001 without addressing an unstable supply voltage risks premature failure of the new board. The TB820 or TB840 I/O terminal base units connected downstream of the drive control layer should also be confirmed for correct termination resistance and signal integrity before the system is returned to service.

For sites where the UNITROL excitation cabinet interfaces with a legacy HMI running ABB’s Panel 800 or PP865 operator panel, the board replacement window is an ideal opportunity to verify HMI communication parameters and update any drive status display tags that reference the replaced module’s diagnostic registers. Completing these checks during the planned outage avoids a secondary maintenance window and ensures the operator interface accurately reflects the restored drive system state.

Retrofit Guidance FAQ

Q: Do I need to re-wire the cabinet when replacing the 3BHE009319R0001?
No. The UNS2881B-P uses the same backplane connector and I/O terminal layout as the outgoing board. All existing field wiring, signal cables, and power connections remain in place. The replacement is a board-level swap only.

Q: Will my existing PROFIBUS configuration remain valid after the swap?
Yes. The 3BHE009319R0001 retains the same PROFIBUS node address and GSD file compatibility as the original UNS2881B-series board. No changes to the PROFIBUS master configuration or PLC program are required in standard replacement scenarios.

Q: Does the replacement board require re-parameterization?
In most cases, the existing parameter set stored in the drive controller or uploaded from a backup file can be restored directly to the replacement board using ABB’s standard commissioning tools. If no parameter backup exists, the board will require re-commissioning from the factory default state. TOPNLMS recommends confirming parameter backup availability before scheduling the replacement outage.

Q: What is the physical installation space requirement?
The 3BHE009319R0001 occupies a single standard slot in the UNITROL rack. No additional mounting hardware, DIN rail adapters, or cabinet modifications are required. The board slides directly into the vacated slot and is secured by the existing front panel locking mechanism.

Q: Can this board be used as a hot-standby spare?
Yes. The 3BHE009319R0001 is suitable for use as a pre-tested cold standby or hot-standby spare in redundant UNITROL configurations. TOPNLMS ships each unit with a pre-dispatch functional test report, allowing the spare to be staged in the cabinet immediately upon receipt.

Q: What communication protocols does this board support?
The UNS2881B-P supports ABB’s internal drive communication bus and PROFIBUS DP as the primary fieldbus interface. It is compatible with the communication architecture used in UNITROL 5000, UNITROL 6000, and AC800PEC-based drive systems without protocol conversion or gateway hardware.

Warranty Assurance

Every ABB 3BHE009319R0001 UNS2881B-P supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection covering power-on self-test, connector integrity, component-level visual inspection, and communication interface verification. Units that do not pass the pre-shipment test protocol are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day for warranty inquiries, technical questions, and return merchandise authorization. Replacement units are dispatched with priority shipping to minimize the impact on your production schedule.

For procurement teams managing critical spare inventories, TOPNLMS offers multi-unit stocking arrangements with documented test records for each unit, supporting your site’s spare parts management and audit requirements. All units are shipped with appropriate ESD-protective packaging and export documentation suitable for international customs clearance.

Stock is available for immediate dispatch from our Xiamen warehouse. Lead time for in-stock units is typically 3–7 business days to major industrial regions. Express shipping options are available for emergency replacement requirements.
