ABB 3BHE006412R0101 UFC762AE101 AC800M Replacement: Smooth Migration from Legacy DCS to Modern Control

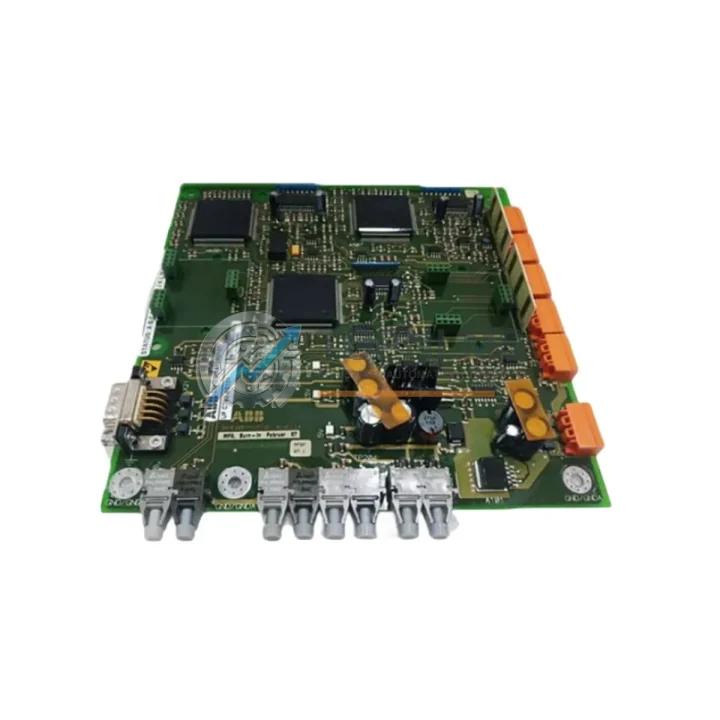

The ABB 3BHE006412R0101 / UFC762AE101 is the central control motherboard of the AC800M Distributed Control System platform — one of ABB’s most widely deployed process automation architectures across power generation, oil & gas, pulp & paper, and chemical processing industries. As legacy AC800M installations age and original hardware reaches end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement units that deliver drop-in compatibility without requiring full system re-engineering.

TOPNLMS specializes in exactly this scenario: supplying tested, shelf-ready 3BHE006412R0101 units to facilities executing planned maintenance shutdowns, emergency replacements, or phased DCS modernization programs. Every unit is inspected, function-tested, and shipped with a 12-month warranty — giving your procurement and maintenance teams the confidence to move forward without extended lead times from OEM channels.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration Ecosystem for AC800M Systems

A successful 3BHE006412R0101 replacement rarely happens in isolation. In most plant environments, the control motherboard sits at the center of a tightly integrated architecture. During migration planning, engineers typically audit the surrounding hardware to ensure the entire control node is fit for continued service.

On the power supply side, the PM856K01 and PM861AK01 power modules are the most common companions to this CPU board. If the existing PM856 shows signs of capacitor aging or voltage instability, replacing it alongside the UFC762AE101 motherboard eliminates a secondary failure point and extends the maintenance interval. Similarly, the PM865K02 is a direct upgrade path for sites requiring higher processing capacity within the same rack footprint.

For I/O infrastructure, the AI810 analog input module and AO810V2 analog output module are standard S800 I/O components that interface directly with the AC800M backplane. Plants migrating from older S800 I/O revisions should verify firmware compatibility with the replacement CPU board — in most cases, no re-wiring is required, and existing terminal blocks and field cables remain fully reusable. The DI810 digital input and DO810 digital output modules follow the same compatibility logic.

Communication infrastructure is another critical consideration. The CI854AK01 PROFIBUS DP communication interface module is frequently deployed alongside the AC800M controller to manage field device networks. When replacing the control motherboard, the CI854AK01 configuration is preserved in the Control Builder M project file and reloads automatically after the new CPU initializes — no manual re-parameterization of the PROFIBUS network is required under normal conditions.

For sites running IEC 61850-based substation automation or power management integration, the CI867K01 IEC 61850 communication module maintains its configuration independently of the CPU board swap, provided the project backup is current. This is a key advantage for utilities and industrial power users who cannot afford communication downtime during the replacement window.

Finally, if the migration scope includes HMI refresh, the PP865A operator panel or third-party SCADA systems connected via OPC DA/UA remain unaffected by the CPU board replacement, as the AC800M’s OPC server configuration is stored in the project file rather than on the hardware itself.

Retrofit Guidance FAQ

Q: Do I need to rewrite my Control Builder M application after installing the 3BHE006412R0101?
No. The application program is stored in the project file on the engineering workstation, not on the CPU board itself. After installing the replacement unit, you restore the application via Control Builder M using your existing project backup. The board initializes, loads the application, and resumes normal operation. Ensure your project backup is current before beginning the swap.

Q: Is the wiring to the S800 I/O backplane affected?
No. The UFC762AE101 motherboard connects to the S800 I/O backplane via the standard AC800M rack interface. Field wiring to terminal blocks on the I/O modules (AI810, DI810, AO810, DO810, etc.) is completely unaffected. No re-termination is required.

Q: What communication protocols does this board support, and will my PROFIBUS network need reconfiguration?
The 3BHE006412R0101 supports PROFIBUS DP (via CI854AK01), MMS/IEC 61850 (via CI867K01), and Modbus TCP. PROFIBUS slave configurations are stored in the GSD-based project file and reload automatically. Under normal replacement conditions, no manual reconfiguration of field devices on the PROFIBUS network is necessary.

Q: Will the replacement board fit in my existing AC800M cabinet without modification?
Yes. The UFC762AE101 uses the standard AC800M module form factor and slots directly into the existing rack. No cabinet modification, DIN rail adjustment, or additional mounting hardware is required. Verify that the rack’s power bus is de-energized before insertion per ABB’s standard maintenance procedure.

Q: How long does a typical field swap take?
For a prepared maintenance team with a current project backup and a tested replacement unit, the physical swap and application restore typically takes 1.5 to 2 hours. This includes controlled shutdown, module extraction, replacement insertion, application download, I/O verification, and return to automatic control.

Q: Can I use this board to replace a unit from an earlier AC800M firmware generation?
In most cases, yes. ABB designed the AC800M platform with backward compatibility across hardware revisions. However, we recommend confirming the firmware version of your existing system against ABB’s compatibility matrix before ordering. Our technical team can assist with compatibility verification prior to purchase.

Warranty Assurance

Every ABB 3BHE006412R0101 UFC762AE101 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment process includes visual inspection, board-level functional testing, and packaging verification to ensure the unit arrives in field-ready condition.

If a unit exhibits a defect or failure within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement or repair at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain buffer stock of high-demand AC800M components to minimize replacement lead times.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen, China via DHL Express, FedEx International Priority, or sea freight — with typical air freight transit times of 3–7 business days to most destinations.

For volume orders, long-term supply agreements, or urgent emergency requirements, contact our technical sales team directly to discuss lead times, pricing, and logistics arrangements.
