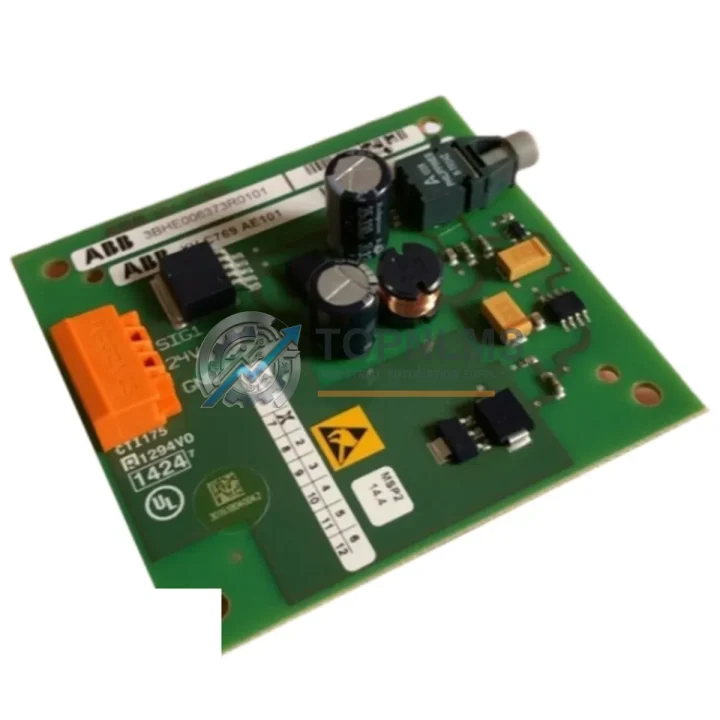

ABB 3BHE006373R0101 XVC769 AE101 AC800M Interface Board

Product Overview

ABB 3BHE006373R0101 XVC769 AE101 AC800M Interface Board – Seamless Replacement & Upgrade Solution

The ABB 3BHE006373R0101 XVC769 AE101 is a critical interface board designed for the ABB AC800M Distributed Control System (DCS) platform. As legacy AC800M installations age and original boards reach end-of-life, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, communication architecture, and control cabinet layout — without triggering a full system overhaul or extended production shutdown.

TOPNLMS maintains verified stock of the 3BHE006373R0101 XVC769 AE101 interface board, sourced from authorized supply chains and subjected to pre-shipment functional testing. Each unit ships with a 12-month warranty, full traceability documentation, and technical support for installation and commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life interface board rarely involves a single component. In practice, field engineers replacing the 3BHE006373R0101 XVC769 AE101 often simultaneously audit adjacent modules to prevent cascading failures during the same maintenance window. The following components are commonly addressed in the same upgrade cycle:

The ABB PM864A processor module is the most frequent companion replacement — when an interface board fails, the CPU module’s firmware version must be verified for compatibility. Similarly, the TB820V2 and TB840A communication interface modules share the same backplane and should be inspected for connector wear or firmware drift. If the system relies on PROFIBUS DP fieldbus communication, the CI854A PROFIBUS master module may require reconfiguration or replacement to restore full network integrity after the interface board swap.

For installations using Modbus TCP or Ethernet-based I/O, the CI873AK Ethernet interface module is a common co-replacement item. Power distribution within the control cabinet typically flows through the SD821 or SD822 power supply modules — these should be load-tested before returning the system to service. On the I/O side, AI810 analog input modules and DO810 digital output modules connected through the same rack should be verified for signal integrity post-replacement.

Where the legacy system includes older HMI panels communicating over serial links, upgrading to an ABB CP600 series operator panel in parallel with the interface board replacement can eliminate a secondary failure point. Finally, if the control cabinet uses signal isolators between field instruments and the AC800M I/O bus, replacing aged MTL or Phoenix Contact signal isolators during the same outage window is strongly recommended to avoid nuisance trips after recommissioning.

Retrofit Guidance FAQ

Q: Can I replace the 3BHE006373R0101 without modifying existing field wiring?
A: Yes. The XVC769 AE101 interface board uses the same connector pinout as the original module. No field wiring changes are required. Verify terminal torque values per ABB installation guidelines before powering up.

Q: Will my existing Control Builder M project run without modification?
A: In the vast majority of cases, yes. The replacement board is firmware-compatible with current AC800M controller revisions. If your project was compiled under a significantly older Automation Builder version, a recompile and download may be required — this is a standard commissioning step, not a redesign.

Q: What communication protocols does this board support?
A: The XVC769 AE101 supports the ABB internal communication bus used within the AC800M rack architecture. External fieldbus protocols (PROFIBUS, Modbus, Ethernet/IP) are handled by dedicated CI-series communication modules in adjacent slots and are unaffected by this replacement.

Q: Does the board fit in the existing cabinet without mechanical modification?
A: Yes. The 3BHE006373R0101 follows the standard AC800M module form factor. It slots directly into the existing rack without any cabinet cutout modification, DIN rail adjustment, or additional mounting hardware.

Q: How do I verify the replacement is functioning correctly after installation?
A: After seating the module and restoring power, use ABB Control Builder M to perform a hardware scan. The module should appear in the hardware tree with a green status indicator. Run a full I/O diagnostic cycle and verify all channel statuses before returning the loop to automatic control.

Warranty Assurance

Every ABB 3BHE006373R0101 XVC769 AE101 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Pre-shipment testing includes power-on verification, communication bus handshake confirmation, and visual inspection for connector integrity and PCB condition. Units that fail to perform as specified within the warranty period are replaced at no additional cost, with priority dispatch to minimize plant downtime.

TOPNLMS maintains bonded stock of critical AC800M components to support emergency procurement requirements. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock items, with express freight options available for urgent plant recovery situations. All shipments include a packing list, test report, and traceability documentation suitable for maintenance records and regulatory audits.

For volume procurement, long-term supply agreements, or technical pre-sales consultation, contact our industrial automation team directly.
