ABB 3BHE004573R0145 UFC760 BE145 Replacement Solution: Seamless UNITROL Excitation System Upgrade

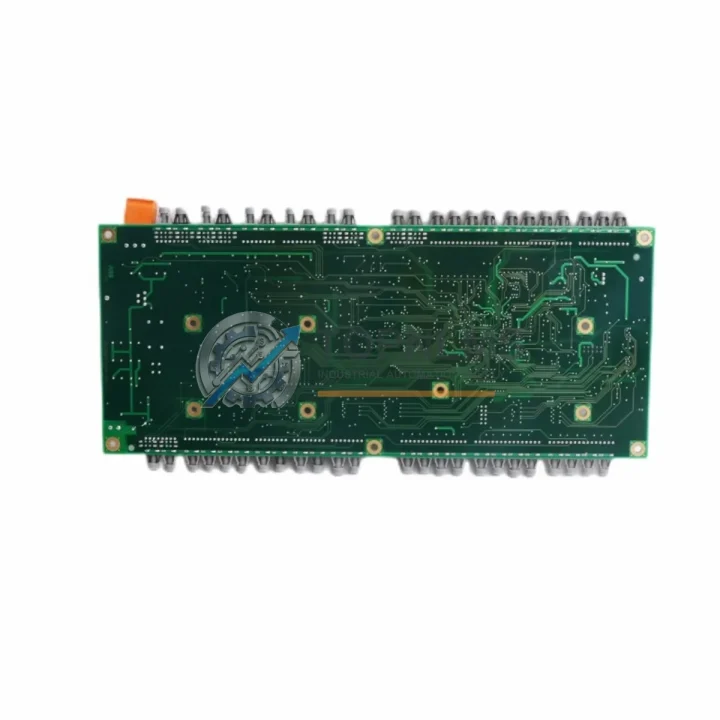

The ABB 3BHE004573R0145 is the UFC760 BE145 Phase Modulator Board, a critical excitation control component within ABB’s UNITROL automatic voltage regulator (AVR) and excitation system platform. This board governs the firing angle of thyristor bridges in synchronous generator excitation circuits, making it indispensable for power plant auxiliary systems, large motor drives, and industrial generator sets. When this module fails or reaches end-of-life, the entire excitation loop is compromised — leading to voltage instability, generator trip events, or unplanned outages.

At TOPNLMS, we maintain ready stock of the ABB 3BHE004573R0145 UFC760 BE145 to support urgent replacement and planned upgrade projects. Each unit is sourced from authorized channels, inspected against ABB factory specifications, and shipped with a 12-month warranty. Our technical team has extensive experience supporting UNITROL 5000, UNITROL 6000, and legacy UNITROL 1000/2000 excitation system migrations, ensuring your replacement is executed with minimal downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UNITROL excitation system migration rarely involves a single board swap. In practice, engineers replacing the ABB 3BHE004573R0145 UFC760 BE145 will also evaluate the surrounding system architecture to ensure full compatibility and long-term reliability.

The UFC760 rack chassis itself is the first item to inspect — if the backplane shows signs of corrosion or connector wear from years of operation, replacing the chassis alongside the phase modulator board eliminates latent failure risk. Within the same rack, the ABB UFC760 Power Supply Module (typically a 24 VDC regulated supply card) should be tested under load, as aging PSU cards are a common root cause of intermittent excitation faults that are misdiagnosed as phase modulator failures.

For sites running UNITROL 5000 or UNITROL 6000 systems, the ABB UNS0881A-P V1 Regulator Board and the ABB UFC760 AIF (Analog Interface) module are frequently replaced in tandem with the BE145 board during planned outages, since these components share the same service interval and are interdependent in the AVR control loop. Similarly, the ABB 3BHE022294R0101 UFC719 AE101 field current measurement board is often upgraded at the same time to ensure the feedback signal chain is fully renewed.

On the communication side, plants integrating UNITROL excitation systems into a DCS or SCADA environment via PROFIBUS DP should verify the ABB UFC760 PROFIBUS Gateway Card firmware version is compatible with the replacement BE145 board. For older sites still using Modbus RTU serial links to the excitation controller, a Modbus-to-PROFIBUS converter module may be required as part of the migration to maintain supervisory control continuity.

In generator protection panels, the ABB REG216 or REG316 generator protection relay interfaces directly with the excitation system’s voltage and current signals. During a phase modulator board replacement, it is good practice to verify relay setpoints and analog input calibration to ensure protection coordination is maintained after the new board is commissioned. Finally, for sites performing a full excitation system overhaul, the ABB UNITROL 6800 all-digital excitation controller represents the modern migration target — offering Ethernet-based configuration, IEC 61850 communication, and a fully redundant control architecture that eliminates the single-board failure risk inherent in older UFC760 platforms.

Retrofit Guidance FAQ

Q: Can I replace the 3BHE004573R0145 without reprogramming the excitation system?
A: In most cases, yes. The UFC760 BE145 board stores firing angle parameters on the rack backplane EEPROM, not on the board itself. A direct slot replacement typically restores operation without re-parameterization. However, we recommend connecting ABB’s CMT configuration tool after installation to verify all parameters are correctly read by the new board before returning the generator to service.

Q: Is the wiring compatible with my existing UNITROL rack installation?
A: Yes. The 3BHE004573R0145 uses the standard UFC760 rack edge connector. No rewiring of the thyristor firing pulse cables or feedback signal wiring is required. The board slides directly into the existing slot.

Q: What communication protocols does this board support?
A: The UFC760 BE145 communicates via the ABB proprietary UFC760 backplane bus. Integration with PROFIBUS DP, Modbus RTU, or Ethernet-based DCS systems is handled by dedicated gateway modules within the UNITROL rack — the BE145 board itself does not require protocol reconfiguration.

Q: Will this board fit in a UNITROL 1000 or UNITROL 2000 rack?
A: The 3BHE004573R0145 is designed for the UFC760 rack platform used in UNITROL 5000 and UNITROL 6000 systems. Installation in older UNITROL 1000/2000 racks requires a mechanical and electrical adapter. Please contact our technical team to confirm compatibility with your specific rack revision before ordering.

Q: How do I minimize downtime during the replacement?
A: We recommend pre-staging the replacement board at site before the planned outage window. Power down the excitation system per ABB’s lockout/tagout procedure, swap the board, restore power, and verify firing pulse outputs with an oscilloscope before reconnecting the thyristor bridge. Total replacement time for an experienced technician is typically under 30 minutes.

Q: What if my system uses a redundant excitation configuration?
A: In redundant UNITROL configurations, the standby channel can remain active while the faulty board is replaced in the primary channel, enabling a hot-swap procedure with zero generator downtime. Confirm your system’s redundancy architecture with the site electrical drawings before proceeding.

Warranty Assurance

Every ABB 3BHE004573R0145 UFC760 BE145 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional bench testing against ABB reference specifications. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period — no lengthy RMA bureaucracy. Our average response time for warranty inquiries is under 24 hours. We maintain buffer stock specifically reserved for warranty replacements, so your replacement unit ships within 1–3 business days of claim approval.

For procurement teams, we can provide a test report, certificate of conformity, and packing list with each shipment upon request. We support T/T bank transfer, and can issue commercial invoices in USD or CNY. Bulk orders for MRO stocking programs are welcome — contact us for volume pricing and lead time commitments.

All units are packed in anti-static ESD bags, placed in foam-lined cartons, and shipped via DHL, FedEx, or UPS Express with full tracking. Export documentation for customs clearance is prepared by our logistics team for international shipments.
