ABB 3BHE004573R0141 UFC760BE141 Replacement for Symphony+

Product Overview

ABB 3BHE004573R0141 UFC760BE141 Replacement for Symphony+: Seamless DCS Migration & Upgrade Solution

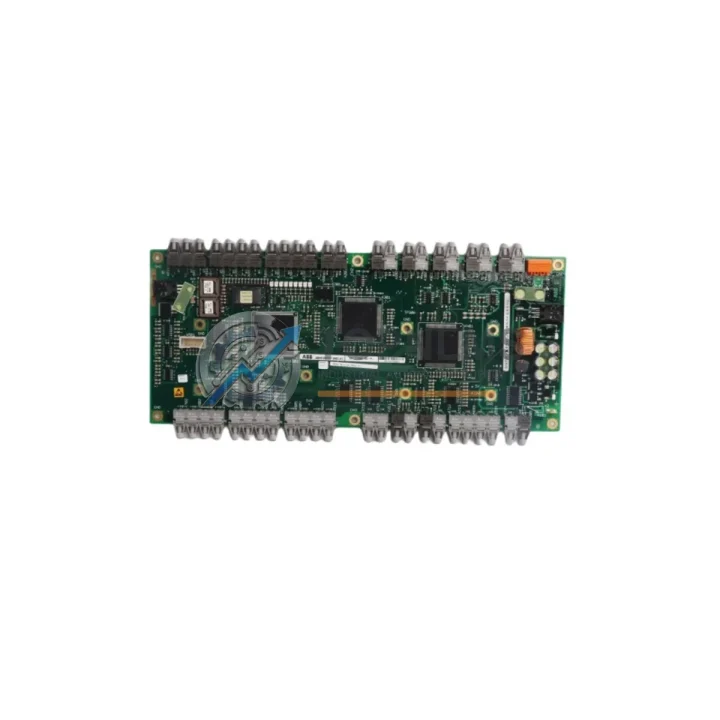

The ABB 3BHE004573R0141 UFC760BE141 is a high-performance DCS Interface Board engineered for the ABB Symphony Plus distributed control system platform. As legacy DCS installations age and original hardware reaches end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing wiring, communication protocols, and control cabinet layouts. This listing addresses that need directly — offering a tested, in-stock replacement that supports smooth migration from discontinued or degraded hardware without requiring a full system overhaul.

Whether your facility is running an aging ABB Harmony or early-generation Symphony DCS architecture, or you are mid-migration toward a modernized Symphony Plus platform, the UFC760BE141 interface board serves as a critical bridge component. It maintains compatibility with the existing AC 800M controller backplane and integrates directly into standard S800 I/O rack configurations, eliminating the need for costly re-engineering of field wiring or control cabinet modifications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS migration rarely involves a single module swap. In practice, replacing the UFC760BE141 interface board is often part of a broader system refresh that touches multiple hardware layers. During the upgrade process, engineers commonly address the AC 800M PM866 processor module alongside the interface board, ensuring that the controller firmware and communication stack are aligned for stable operation under the Symphony Plus architecture.

On the I/O side, the S800 I/O modules — including analog input modules such as the AI810 and digital output modules such as the DO810 — are frequently evaluated for replacement during the same maintenance window. Keeping the I/O layer current reduces the risk of cascading failures and simplifies spare-parts management across the plant.

Communication integrity is another key concern. The CI854 PROFIBUS DP communication interface is a common companion module in Symphony Plus installations, handling fieldbus connectivity between the controller and field devices. Ensuring this module is in good condition — or replacing it as part of the same upgrade cycle — prevents communication dropouts that can mask the root cause of process anomalies.

Power supply reliability underpins the entire control cabinet. The SD821 24 VDC power supply module is widely used in S800-based cabinets and should be inspected or replaced when undertaking a board-level upgrade. A degraded power supply can cause intermittent faults that are difficult to diagnose and may shorten the service life of newly installed modules.

For facilities that rely on human-machine interface visibility, the ABB CP600 series HMI panels are a natural complement to a Symphony Plus upgrade, providing modern touchscreen operator interfaces that integrate natively with the AC 800M controller via OPC or direct Ethernet connectivity. Upgrading the HMI in parallel with the interface board ensures that operators have accurate, real-time process visibility throughout the transition.

Where signal isolation is required between legacy field instruments and the new DCS I/O layer, signal isolators and barriers — such as those in the ABB HART-compatible range — provide galvanic separation and protect the new interface board from transient voltages originating in the field. This is particularly relevant in retrofit projects where older, unshielded cabling remains in place.

Finally, commissioning and configuration of the replacement board requires a compatible programming cable and Control Builder Plus (CBP) software license. Ensuring these tools are available before the maintenance window begins is essential to minimizing downtime during the cutover.

Retrofit Guidance FAQ

Q: Can I replace the UFC760BE141 without rewiring the field terminals?
A: Yes. The 3BHE004573R0141 UFC760BE141 is a direct form-fit-function replacement. Field terminal blocks and existing cable harnesses connect to the same physical interface, so no rewiring is required under normal replacement conditions.

Q: Is the replacement board compatible with my existing Control Builder M project files?
A: The UFC760BE141 is compatible with Control Builder Plus (CBP), the successor to Control Builder M. Existing project files can typically be imported and compiled in CBP with minimal modification. We recommend verifying firmware version alignment between the replacement board and your AC 800M controller before commissioning.

Q: Will the board fit in my existing S800 rack without cabinet modifications?
A: Yes. The module maintains the standard S800 rack form factor and DIN-rail mounting dimensions. No cabinet modifications, additional mounting hardware, or spacer plates are required.

Q: What communication protocols does the UFC760BE141 support?
A: The board supports PROFIBUS DP and Modulebus communication, consistent with the Symphony Plus platform architecture. It is compatible with existing PROFIBUS segment configurations and does not require changes to fieldbus addressing or baud rate settings in standard replacement scenarios.

Q: How do I verify the board is functioning correctly after installation?
A: After seating the module in the rack and restoring power, use Control Builder Plus to perform a hardware scan and confirm the module is recognized by the controller. Check diagnostic LEDs on the board face for normal operating status. Run a full I/O channel check against your process values before returning the loop to automatic control.

Q: What if my system uses an older Harmony DCS architecture rather than Symphony Plus?
A: Compatibility depends on the specific Harmony variant and firmware revision. Contact our technical team with your system configuration details before ordering. We can advise on compatibility and, where necessary, recommend alternative modules or migration paths.

Warranty Assurance

Every ABB 3BHE004573R0141 UFC760BE141 shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and basic electrical performance. This process is designed to catch latent defects before the module reaches your facility, reducing the risk of a failed installation during a critical maintenance window.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing. Our after-sales response team is reachable via email and phone to coordinate return logistics, issue replacement authorizations, and provide technical guidance during the exchange process. We understand that unplanned downtime in industrial environments carries significant operational and financial consequences, and our warranty process is structured to minimize the time between fault identification and resolution.

Stock availability is maintained to support urgent procurement requirements. Orders placed before the daily cut-off are processed for same-day or next-business-day dispatch, with tracking information provided upon shipment. We ship internationally from Xiamen, China, with export documentation prepared to facilitate customs clearance in major industrial markets.

For procurement teams requiring documentation, we can provide product datasheets, test records, and certificate of conformance upon request. Volume pricing and framework agreements are available for facilities managing multi-site DCS upgrade programs.
