ABB 3BHE003855R0001 Replacement for UNS2882A Series

Product Overview

ABB 3BHE003855R0001 Replacement for UNS2882A Series: Seamless Transition & Legacy System Upgrade

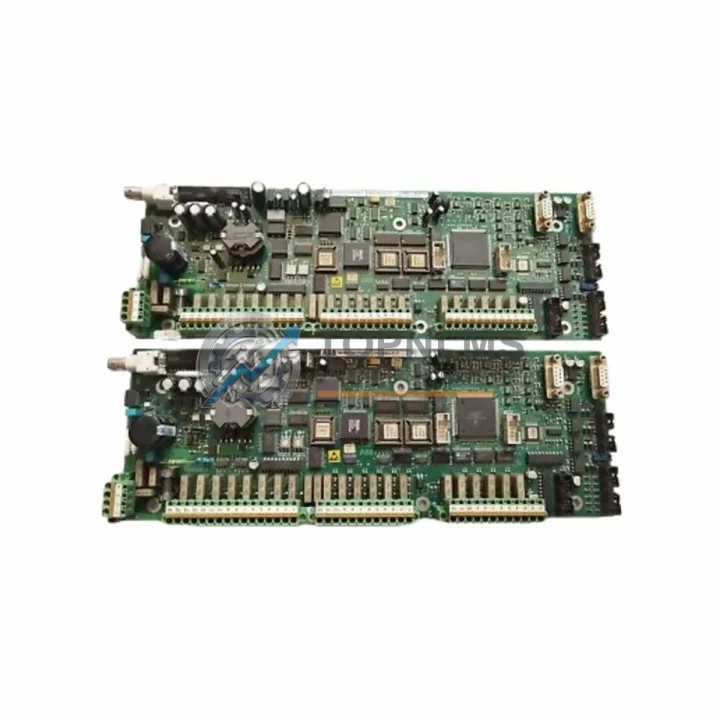

The ABB 3BHE003855R0001 (UNS2882A-P, V1) is a precision-engineered excitation interface board designed for ABB’s AC800M distributed control system and associated generator excitation platforms. As legacy excitation controllers and discontinued DCS I/O modules reach end-of-life, plant engineers and procurement teams increasingly rely on verified replacement units to maintain uptime without committing to full system overhauls. This module provides a direct, pin-compatible upgrade path for facilities operating aging ABB UNITROL or Symphony Plus excitation architectures, enabling a smooth migration with minimal rewiring, no PLC reprogramming, and no changes to existing control cabinet layouts.

When replacing a failed or obsolete excitation interface board in an ABB-based power generation or industrial drive system, the 3BHE003855R0001 slots directly into the existing backplane without requiring mechanical modifications. The board maintains full compatibility with the UNS2882A series signal conditioning chain, preserving the original analog and digital I/O mapping. Field engineers report that wiring terminations on the existing terminal blocks — including those shared with companion modules such as the ABB UNS2881A analog output board and the ABB 3BHE022291R0101 UNS0880A field bus communication module — remain unchanged during the swap, dramatically reducing commissioning time on live plant sites.

From a communications standpoint, the 3BHE003855R0001 is fully compatible with ABB’s proprietary DDCS (Distributed Drives Communication System) fiber-optic protocol, which is the backbone of many AC800M and ACS800 drive system architectures. Plants that have standardized on DDCS for coordinating multiple drive axes — including those using the ABB RDCO-02C DDCS communication adapter or the ABB RPBA-01 PROFIBUS adapter for legacy fieldbus integration — will find that the replacement board integrates without protocol reconfiguration. For sites running PROFIBUS DP or Modbus RTU alongside the native DDCS backbone, no gateway changes are required.

Physical installation is equally straightforward. The board occupies a standard single-slot position within the ABB S800 I/O or excitation rack, and its form factor is identical to the original V1 revision. Control cabinet space constraints — a common concern during brownfield retrofits — are not a factor. The power supply requirements remain at 24 VDC nominal, compatible with existing ABB DSQC 661 or equivalent 24 V rail-mounted PSUs already installed in the cabinet. No additional power conditioning or isolation transformers are needed.

For facilities upgrading from older ABB UNITROL 5000 or UNITROL 6000 excitation systems, the 3BHE003855R0001 serves as the interface layer between the new digital excitation controller and legacy generator field winding circuits. During such migrations, it is common to simultaneously replace associated components including the ABB 3BHE004573R0002 UNS0880A-P pulse encoder interface board and the ABB 3BHE022294R0101 measurement board to ensure the entire signal chain is refreshed. Replacing these boards as a coordinated set — rather than individually — reduces the risk of intermittent faults caused by mixed firmware revisions or degraded connectors on adjacent modules.

On the software and programming side, no changes to the AC800M application program are required when substituting this board on a like-for-like basis. The hardware descriptor files (HDF) and I/O configuration within ABB Control Builder M remain valid, and the module will be recognized automatically upon power-up. For sites performing a broader DCS migration — for example, transitioning from an older ABB Advant OCS or ABB Master platform to a modern AC800M architecture — the 3BHE003855R0001 can be incorporated into the new rack configuration while retaining the original field wiring, provided the signal ranges and loop impedances are verified during FAT (Factory Acceptance Testing).

Procurement teams will note that this unit ships fully tested and burned-in, with each board subjected to functional verification under simulated load conditions prior to dispatch. Units are available from stock in Xiamen, with standard lead times of 3–7 business days for international destinations. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Replacement or repair support is available throughout the warranty period, with a dedicated technical response within 24 hours of fault notification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful excitation system migration rarely involves a single board. When upgrading or replacing the 3BHE003855R0001, the following components are commonly addressed in the same maintenance window to ensure system-wide integrity:

• ABB UNS2881A — Analog output board; shares the same rack and terminal block layout, often replaced simultaneously to eliminate signal drift from aged DAC circuits.
• ABB 3BHE022291R0101 UNS0880A — Field bus communication module; ensures the DDCS fiber-optic link between the excitation controller and the AC800M CPU remains at full specification.
• ABB 3BHE004573R0002 UNS0880A-P — Pulse encoder interface board; critical for speed feedback loops in generator excitation control; typically refreshed alongside the interface board.
• ABB 3BHE022294R0101 — Measurement board for voltage and current sensing; replacing this unit together with the interface board eliminates cross-module calibration discrepancies.
• ABB RDCO-02C — DDCS communication adapter for ACS800 drives; ensures the drive-side DDCS node remains compatible with the refreshed excitation interface.
• ABB RPBA-01 — PROFIBUS DP adapter; for plants running legacy PROFIBUS segments alongside the DDCS backbone, this adapter maintains fieldbus continuity post-upgrade.
• ABB S800 I/O Rack / Backplane — If the existing rack shows signs of connector wear or corrosion, replacing the backplane during the same outage prevents future intermittent faults.
• 24 VDC Rail-Mounted PSU (ABB CP-E 24/5.0 or equivalent) — Power supply modules in aging control cabinets should be inspected and replaced if output ripple exceeds specification, protecting the new interface board from premature failure.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when installing the 3BHE003855R0001?
A: No. The terminal block pinout is identical to the original UNS2882A-P revision. All existing field cables connect to the same positions without modification.

Q: Will my AC800M application program need to be modified?
A: Not for a direct like-for-like replacement. The hardware descriptor file (HDF) in Control Builder M remains valid. If you are migrating from an older Advant or Master platform, a configuration import and I/O remapping step will be required.

Q: Is the board compatible with PROFIBUS DP and Modbus RTU networks?
A: The board itself interfaces via DDCS. PROFIBUS DP and Modbus RTU connectivity is handled by the associated communication adapter modules (e.g., RPBA-01, RMBA-01) installed elsewhere in the rack — these do not need to be changed for a direct board swap.

Q: How much physical space does the replacement board require?
A: The 3BHE003855R0001 occupies a single standard slot in the ABB S800 excitation rack. No additional space is required compared to the original unit.

Q: What commissioning steps are needed after installation?
A: Power-cycle the rack, verify the board is recognized in Control Builder M, confirm I/O signal levels against the loop test records, and perform a functional excitation test at reduced load before returning the generator to full service.

Warranty Assurance

Every ABB 3BHE003855R0001 UNS2882A-P V1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a full functional test under simulated operating conditions, including power-on self-test, I/O channel verification, and communication link validation. Units that do not meet ABB’s original performance specifications are quarantined and not shipped.

In the event of a warranty claim, our technical team responds within 24 hours. Depending on fault diagnosis, we offer direct replacement from stock or repair and return, whichever minimizes your downtime. Shipping costs for warranty replacements are covered by TOPNLMS for the first occurrence. Our procurement guarantee includes accurate part number verification before shipment, so you receive exactly the revision and hardware version specified in your purchase order.

For urgent requirements — including same-day quotation, expedited air freight, and pre-shipment inspection reports — contact our team directly.
