ABB 3BHB020538R0001 Replacement for GV C714 Series

Product Overview

ABB 3BHB020538R0001 Replacement for GV C714 Series: Seamless IGCT Stack Upgrade for ACS6000 & PCS6000 Systems

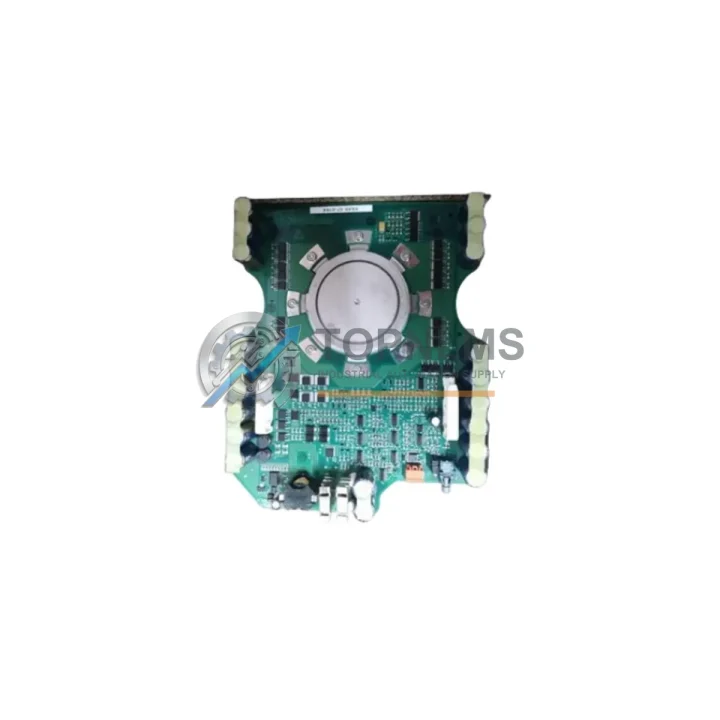

When a critical IGCT stack fails in a high-power drive system, every hour of unplanned downtime translates directly into production loss. The ABB 3BHB020538R0001 IGCT Gate Unit — paired with the 5SHX1060H0003 Press-Pack Thyristor and the 3BHE024415R0101 Gate Driver Board — forms the core switching assembly of the GV C714 A101 power stack, widely deployed in ABB ACS6000 medium-voltage variable-speed drives, PCS6000 power conversion systems, and MEGADRIVE-LCI load-commutated inverter configurations. TOPNLMS stocks this complete assembly and ships from Xiamen with full pre-shipment functional verification, enabling your engineering team to execute a smooth, low-risk retrofit without extended lead times.

The GV C714 A101 stack architecture integrates the gate unit, thyristor wafer, and driver electronics into a mechanically and electrically matched assembly. Replacing only one sub-component without sourcing the matched set risks impedance mismatch, gate timing deviation, and premature re-failure. Our supply covers the complete 3BHB020538R0001 / 5SHX1060H0003 / 3BHE024415R0101 combination, ensuring that the replacement assembly meets the original ABB factory specification for gate charge, on-state voltage drop, and turn-off current capability.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IGCT stack replacement in an ACS6000 or PCS6000 cabinet rarely involves only the switching device itself. During the retrofit process, engineers typically inspect and often replace several adjacent components to restore full system reliability and avoid a repeat outage within the same maintenance window.

The AMC Board (NAMC-11 / NAMC-12) — the Application and Motor Control board that generates the gate firing pulses via DDCS fiber-optic links — should be verified for firmware revision compatibility with the replacement stack. If the AMC board is running an outdated firmware version, a coordinated upgrade of both the IGCT assembly and the AMC board eliminates the risk of gate timing mismatch. Similarly, the RDCO-01 / RDCO-02 fiber-optic communication module that bridges the AMC board to the gate driver should be inspected; a degraded fiber link is a common root cause of nuisance IGCT fault trips that are misdiagnosed as thyristor failure.

On the power supply side, the APOW power supply board (part of the ACS6000 control section) provides the low-voltage auxiliary rails to the gate driver electronics. A failing APOW board can produce intermittent gate undervoltage faults that stress the IGCT and accelerate wear. Replacing the APOW board in parallel with the IGCT stack is a recognized best practice in ACS6000 major overhauls. Likewise, the AINT interface board and AINP I/O expansion board — which handle analog and digital I/O between the drive controller and the plant DCS — should be functionally tested during the commissioning phase to confirm that speed reference, torque limit, and fault relay signals are correctly mapped after the hardware swap.

For installations where the ACS6000 communicates with a plant-level DCS or SCADA system via PROFIBUS-DP or Modbus RTU, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter module should be confirmed operational before returning the drive to service. These fieldbus adapter modules are mounted in the drive’s option slot and are sensitive to power cycling sequences; a post-replacement power-up procedure that follows the ABB commissioning checklist will prevent adapter initialization failures. In cabinets where the drive feeds a high-inertia load such as a compressor or mill, the du/dt output filter and common-mode filter choke installed on the motor cable side should also be inspected for insulation degradation, as a compromised output filter can impose abnormal voltage stress on the new IGCT stack during the first load test.

Finally, for sites performing a broader control system migration — for example, retiring a legacy ABB Advant AC450 or MOD 300 DCS and transitioning to an ABB System 800xA or ABB Ability™ Symphony Plus platform — the ACS6000 drive can be re-integrated via its DDCS or fieldbus interface without requiring a drive hardware change, provided the new DCS I/O module assignments and function block logic are correctly configured. TOPNLMS can supply the IGCT stack assembly as a standalone component to support this type of phased migration, where the drive hardware is retained while the supervisory control layer is modernized.

Retrofit Guidance FAQ

Q: Can I replace only the 5SHX1060H0003 thyristor wafer without replacing the 3BHB020538R0001 gate unit?
A: Technically possible, but not recommended. The gate unit and thyristor wafer are characterized as a matched pair at the ABB factory. Replacing the wafer alone without re-characterizing the gate charge parameters risks suboptimal turn-off performance. For field replacements, sourcing the complete GV C714 A101 assembly is the lower-risk approach.

Q: Does the replacement require any changes to the ACS6000 drive parameters?
A: In most cases, no parameter changes are required if the replacement assembly carries the same part numbers. The drive’s IGCT configuration data is stored in the AMC board, not in the stack itself. However, after installation, ABB recommends running the IGCT self-test routine (accessible via the drive’s control panel or DriveWindow software) to confirm gate integrity before applying load.

Q: What is the correct clamp torque for the press-pack assembly?
A: The clamping force specification is defined in the ABB GV C714 installation manual. Incorrect clamping — either under-torque or over-torque — is the leading cause of premature IGCT failure in field replacements. Use a calibrated torque wrench and follow the sequential tightening pattern specified in the documentation. TOPNLMS can provide the relevant technical reference upon request.

Q: Is the fiber-optic gate signal interface compatible with all ACS6000 hardware revisions?
A: The 3BHE024415R0101 driver board uses the standard ABB IGCT fiber-optic interface that has been consistent across ACS6000 hardware generations. Verify the fiber connector type (ST or FSMA) on your existing installation before ordering to confirm physical compatibility.

Q: What is the lead time and shipping arrangement?
A: Stock items ship from Xiamen within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Export documentation, including commercial invoice and packing list, is prepared to support customs clearance in the destination country. Emergency same-day dispatch is available for confirmed urgent orders — contact us directly at [email protected] or +86 18359293191.

Warranty Assurance

Every ABB 3BHB020538R0001 / 5SHX1060H0003 / 3BHE024415R0101 assembly supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination for mechanical damage, connector integrity check, and where applicable, electrical continuity verification of the gate driver circuit. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will assess the returned unit and, subject to confirmation that the failure is not attributable to installation error, incorrect clamping, overvoltage, or unauthorized modification, will provide a replacement unit or issue a credit at our discretion. Our after-sales response target is 24 hours for initial acknowledgment and 5 business days for resolution proposal. We maintain a dedicated stock buffer for warranty replacements to minimize the time between claim approval and replacement dispatch.

For procurement teams requiring formal quality documentation, we can provide a certificate of conformity and, upon request, traceability records for the supplied components. We support standard industrial procurement terms including net payment, TT wire transfer, and trade assurance arrangements through verified B2B platforms.
