ABB 3BHB007030R0103 UFC760BE103 Original Industrial Spare UFC760 Compatible: System Stability and Industrial Spare Maintenance Value

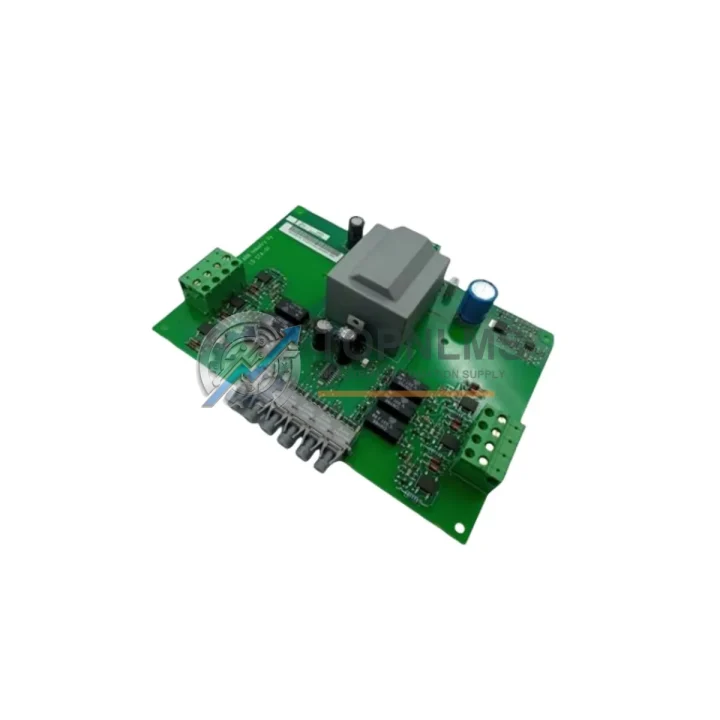

The ABB 3BHB007030R0103 UFC760BE103 is an original status board module designed for the ABB AC800M Distributed Control System (DCS) platform, operating within the UFC760 series architecture. In process-critical environments — petrochemical plants, power generation facilities, pulp and paper mills, and large-scale manufacturing lines — this module plays a foundational role in maintaining real-time system status visibility, fault diagnostics, and controller health monitoring. Sourcing a verified original replacement unit is not merely a procurement decision; it is a system stability and uptime assurance strategy.

When a status board module fails or degrades, operators lose critical visibility into controller states, I/O health, and communication bus integrity. The result is extended troubleshooting cycles, unplanned downtime, and elevated risk of cascading faults across the control loop. Stocking the UFC760BE103 as a certified spare eliminates this exposure and enables same-shift replacement without waiting on extended lead times from OEM channels.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for ABB AC800M-based control systems extends well beyond replacing a single status board. During any scheduled shutdown or corrective maintenance event involving the 3BHB007030R0103 UFC760BE103, experienced maintenance engineers routinely inspect and, where necessary, replace a broader set of interdependent components to prevent repeat failures and maximize the interval before the next intervention.

The PM800 processor module and CI854 PROFIBUS communication interface are the most common co-inspection items when a status board fault is detected, as communication integrity issues often manifest first as status board anomalies. Simultaneously, the TB820 I/O bus interface module should be checked for connector wear and firmware currency, since degraded I/O bus communication can generate false status alerts that mask the true fault source.

Power supply integrity is equally critical. The SD821 and SD822 power supply modules feeding the AC800M rack should be load-tested during any planned outage — a marginal power supply will cause intermittent status board resets that are difficult to diagnose under live conditions. Alongside power supply inspection, the AI810 analog input module and DI810 digital input module in the same rack should be visually inspected for terminal corrosion, loose wiring, and LED fault indicators.

For systems operating in high-vibration or high-humidity environments, the TK850 fiber optic modem and associated fiber patch cables connecting controller racks to remote I/O clusters are a frequent source of intermittent communication faults. Replacing aging fiber connectors during the same maintenance window as the status board is a cost-effective strategy that avoids a second shutdown within the same quarter.

Finally, the TP830 termination panel and field terminal blocks should be torque-checked and cleaned. Loose field wiring terminations are a leading cause of nuisance alarms that overload the status board’s diagnostic capacity and reduce its effective service life. A complete inspection of the control cabinet — including the CI801 fieldbus communication interface and any installed AF100 fieldbus modules — rounds out a thorough preventive maintenance cycle and ensures the entire AC800M system is returned to full operational specification.

Strategic Replacement Solutions

The ABB AC800M platform has been deployed globally since the late 1990s and remains in active service across thousands of process facilities. Many of these installations are operating on extended lifecycle plans, with OEM support timelines that have already passed or are approaching end-of-service. In this context, sourcing original spare modules such as the UFC760BE103 from specialist industrial spare parts suppliers is not a workaround — it is the primary strategy for sustaining system availability without the capital expenditure of a full DCS migration.

The 3BHB007030R0103 is a direct plug-in replacement for the original factory-installed status board. No firmware reconfiguration, no rack modification, and no engineering change order is required for a like-for-like swap. This means a trained maintenance technician can complete the replacement within a single shift, restoring full system visibility and controller health monitoring without involving the OEM’s field service team.

For facilities managing multiple AC800M racks across a plant, establishing a minimum stock level of one UFC760BE103 per controller cluster is a widely adopted best practice. The module’s compact form factor and stable shelf life under proper storage conditions (cool, dry, ESD-protected environment) make it practical to hold as a long-term strategic spare. Compared to the cost of a single hour of unplanned process downtime, the procurement cost of a verified original spare is negligible — and the operational insurance value is substantial.

Facilities transitioning from older ABB Advant or MOD300 controller architectures to AC800M will also find the UFC760BE103 relevant during the migration period, as hybrid control environments often require maintaining both legacy and current-generation spare inventories simultaneously. Our team can advise on compatible cross-reference modules and assist with multi-unit procurement planning for phased migration projects.
