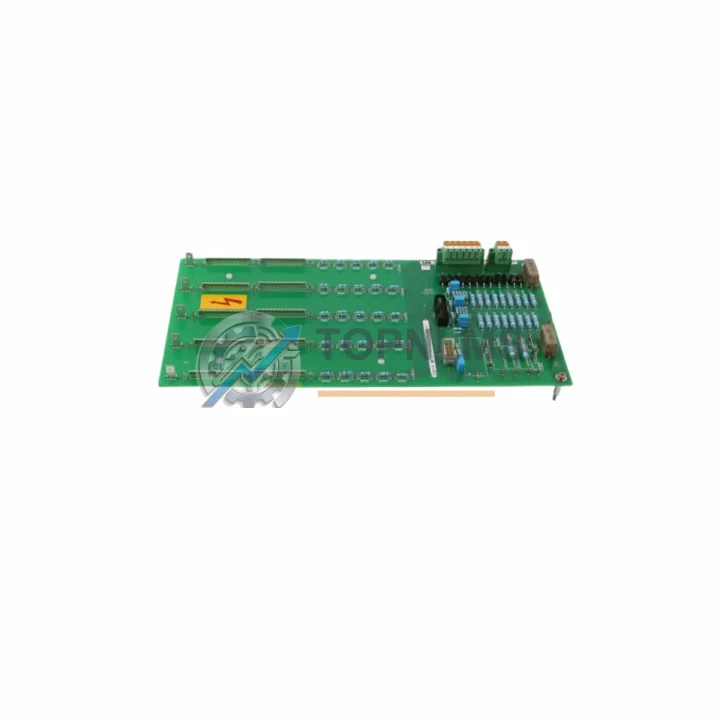

ABB 3BHB006309R0001 UNS0882A-PV1 Replacement for AC800M: Seamless DCS Control System Transition

When your ABB AC800M Distributed Control System reaches end-of-life or a critical control board fails unexpectedly, unplanned downtime can cost thousands of dollars per hour. The ABB 3BHB006309R0001 UNS0882A-PV1 is the factory-designated processor and control board for the AC800M controller platform — one of ABB’s most widely deployed DCS architectures across power generation, oil & gas, pulp & paper, and chemical processing industries. This listing provides a verified, tested replacement unit sourced directly from authorized supply channels, ready to ship from our Xiamen warehouse.

Whether you are executing a planned maintenance swap, responding to a board failure, or undertaking a phased system modernization, this replacement module is engineered to restore full AC800M controller functionality with no firmware re-engineering, no rack modification, and no rewiring of existing I/O terminations. The UNS0882A-PV1 variant is fully compatible with the AC800M hardware revision family and integrates directly with ABB’s Control Builder M engineering environment, preserving your existing application logic and configuration databases.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC800M control board replacement rarely involves a single component in isolation. In practice, field engineers replacing the 3BHB006309R0001 UNS0882A-PV1 will typically audit the surrounding system architecture to ensure the entire control loop remains stable after the swap. The AC800M controller communicates with distributed I/O through CI854A PROFIBUS DP communication interface modules, which handle the fieldbus traffic between the controller and remote I/O stations. If the CI854A units in your rack are approaching their service life, replacing them concurrently with the control board eliminates a second maintenance window.

On the I/O side, the S800 I/O module family — including analog input modules such as the AI810 and AI820, analog output modules like the AO810, and digital I/O modules such as the DI810 and DO810 — connects to the AC800M via the S800 I/O bus. These modules mount on TB820 ModuleBus Modem termination units and use standard screw-terminal field wiring, meaning your existing field cable connections remain completely undisturbed during a controller board swap. Engineers performing a full rack audit should also inspect the PM860 or PM861 processor modules if the system runs a redundant controller pair, as mismatched hardware revisions between primary and standby processors can cause redundancy synchronization faults.

Power integrity is another critical factor. The AC800M rack is powered by a dedicated SD821 or SD822 power supply unit, which delivers regulated 24 VDC to the backplane. Before commissioning the replacement 3BHB006309R0001, verify that the power supply output voltage is within specification — a marginal power supply that was previously masked by a failing board can cause intermittent faults on the new unit. For systems where the control cabinet also houses ABB ACS800 or ACS880 series variable frequency drives, ensure that the drive communication adapters (typically RPBA-01 PROFIBUS adapters or FENA-21 Ethernet adapters) are correctly configured to re-establish drive communication after the controller restart.

For sites running ABB Symphony Plus or legacy Advant OCS systems in parallel with AC800M controllers, the replacement process should include a review of the AF100 fieldbus or MasterBus 300 communication segments to confirm that the new board’s network addressing matches the outgoing unit’s configuration. Programming cable connectivity — typically via the TK212A USB programming cable or Ethernet direct-connect — should be verified before the board is installed in the live rack to allow pre-loading of the application program and parameter set, minimizing the live commissioning window to under 30 minutes in most cases.

Retrofit Guidance FAQ

Q: Do I need to rewrite my Control Builder M application after installing the 3BHB006309R0001?
No. The UNS0882A-PV1 is a hardware replacement within the same AC800M platform. Your existing Control Builder M project — including function block diagrams, structured text programs, and hardware configuration — can be downloaded directly to the new board without modification, provided the firmware version on the replacement unit is compatible with your project version. We recommend confirming the firmware revision before installation.

Q: Will my existing field wiring need to be changed?
No. The 3BHB006309R0001 installs into the same rack slot as the outgoing board. All I/O terminations on the S800 I/O modules and CI854A communication interfaces remain connected throughout the swap. Only the controller board itself is removed and replaced.

Q: Is PROFIBUS DP communication automatically restored after the swap?
Yes, provided the PROFIBUS node address and baud rate settings stored in the Control Builder M hardware configuration are downloaded to the new board. The CI854A interface modules retain their physical connections and do not require reconfiguration.

Q: Can this board be used in a redundant AC800M configuration?
Yes. The 3BHB006309R0001 UNS0882A-PV1 supports hot-standby redundancy. When replacing one board in a redundant pair, the standby unit takes over control while the primary is swapped, eliminating process interruption. After installation, the new board synchronizes automatically with the active controller.

Q: What if my cabinet has limited space for removal and reinstallation?
The 3BHB006309R0001 occupies the same physical slot as the original board. No additional cabinet space is required. The module uses the standard AC800M rack guide rails and front-panel locking mechanism, allowing single-technician installation in confined control cabinet environments.

Q: How do I verify the replacement board is functioning correctly after installation?
After downloading the application and hardware configuration via Control Builder M, monitor the board’s status LEDs and the system diagnostic display in the engineering tool. All I/O channels should report healthy status within 60 seconds of a successful program download. PROFIBUS DP communication status can be verified via the CI854A diagnostic LEDs and the fieldbus diagnostic view in Control Builder M.

Warranty Assurance

Every 3BHB006309R0001 UNS0882A-PV1 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a functional verification process including power-on self-test, communication interface check, and visual inspection for physical damage. Units that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, our technical support team responds within 24 business hours. Confirmed defective units are eligible for replacement dispatch within 3–5 business days, subject to stock availability. We maintain a dedicated inventory buffer of critical AC800M components specifically to support warranty replacement commitments without extended lead times.

Our procurement guarantee includes: verified unit authenticity, pre-shipment functional test, secure anti-static packaging, full traceability documentation, and responsive after-sales support. For urgent plant maintenance scenarios, expedited shipping options are available to most global destinations.

For volume procurement, spare parts planning, or technical pre-sales consultation, contact our industrial automation team directly.
