ABB 3BHB006208R0001 UNS0883A-P V1 Replacement for UNITROL: Smooth Migration from Legacy Excitation Systems

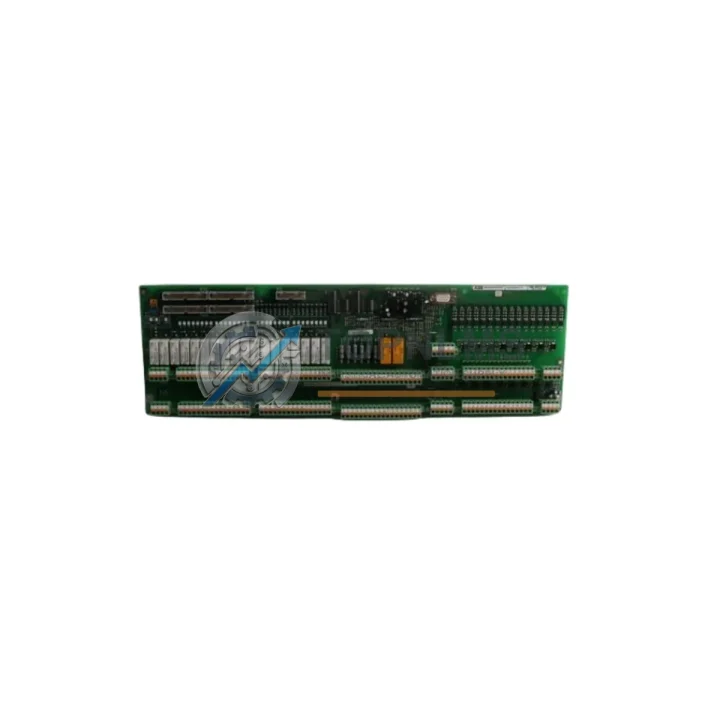

The ABB 3BHB006208R0001 UNS0883A-P V1 is a precision PCB board assembly at the heart of ABB’s UNITROL excitation control platform — one of the most widely deployed generator excitation systems across power generation, hydroelectric, and heavy industrial applications worldwide. As ABB progressively phases out legacy UNITROL 1000 and UNITROL 5000 hardware, plant operators, OEM integrators, and maintenance engineers face the critical challenge of sourcing verified replacement boards that maintain full electrical, mechanical, and functional compatibility with existing excitation cubicles, AVR regulation loops, and field forcing circuits.

TOPNLMS maintains verified stock of the 3BHB006208R0001 UNS0883A-P V1, tested and ready for immediate dispatch from our Xiamen facility. Each unit undergoes pre-shipment functional verification — confirming signal integrity, power rail stability, and communication bus continuity — before leaving our warehouse. Whether you are executing a planned maintenance replacement, responding to an unplanned board failure, or undertaking a broader excitation system modernization, this unit provides a reliable, cost-effective path forward without requiring cubicle redesign or firmware re-engineering.

For sites where the original UNITROL board has reached end-of-life or is no longer available through ABB’s standard supply chain, the 3BHB006208R0001 UNS0883A-P V1 serves as a direct functional equivalent. The board preserves the original connector footprint, mounting dimensions, and internal bus protocol, enabling a drop-in installation that minimizes downtime and eliminates the need for panel rewiring or control logic modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UNITROL excitation system migration rarely involves a single board swap in isolation. In practice, engineers replacing the UNS0883A-P V1 board typically audit the surrounding hardware simultaneously to eliminate latent failure points and reduce future unplanned downtime.

Within the same UNITROL cubicle, the UNS0880A-P and UNS0881A-P regulator boards share the same backplane and power distribution architecture as the 3BHB006208R0001. If one board has reached end-of-life, adjacent boards are often at similar wear levels and should be evaluated for simultaneous replacement. The 3BHB006209R0001 and 3BHB006210R0001 assemblies — commonly installed in the same excitation cubicle rack — are frequently requested alongside this unit as part of a complete cubicle refresh.

On the power supply side, the UNITROL PSU module (typically a 24 VDC regulated supply feeding the PCB rack) should be inspected for capacitor aging and output ripple before commissioning a new regulation board. A degraded power supply is a leading cause of premature PCB failure in excitation systems and is often overlooked during single-board replacement projects. Similarly, the ABB SDCS-CON-4 control board — used in DCS 800 and ACS 800 drive platforms that frequently interface with UNITROL excitation systems — may require firmware alignment when the excitation regulation chain is updated to ensure coordinated AVR and drive response.

For sites integrating the excitation system with a broader DCS or SCADA architecture, the ABB CI854A PROFIBUS DP communication interface module and the TB820V2 media converter are commonly part of the same modernization scope. These components enable the upgraded excitation controller to communicate reliably with ABB System 800xA or Freelance DCS platforms without requiring changes to the supervisory control layer. Where legacy serial links are being replaced or extended, the ABB NMBP-01 Modbus adapter provides a cost-effective bridge between the UNITROL platform and modern SCADA or energy management systems.

Field engineers should also verify the condition of the field flashing contactor, excitation transformer secondary terminals, and any signal isolation barriers installed between the AVR output and the field winding circuit. These passive and semi-passive components are outside the PCB scope but directly affect commissioning success, long-term AVR stability, and the accuracy of reactive power regulation under load.

Retrofit Guidance FAQ

Q: Is the 3BHB006208R0001 UNS0883A-P V1 a direct drop-in replacement for the original UNITROL board?
A: Yes. The board uses the same connector footprint, mounting dimensions, and internal bus protocol as the original UNITROL installation. No mechanical modification to the cubicle or panel is required.

Q: Do I need to re-flash or reconfigure firmware after installation?
A: In most cases, no. The replacement board is compatible with existing UNITROL firmware. However, if the site is running a significantly older firmware baseline, we recommend verifying the firmware revision against ABB’s compatibility matrix before installation. Our technical team can assist with this pre-installation assessment.

Q: Are the wiring terminations identical to the original board?
A: Yes. Terminal assignments and signal polarities are preserved. Existing field wiring can be reconnected without modification. As standard commissioning practice, label and photograph all connections before removing the original board.

Q: What communication protocols does this board support?
A: The UNS0883A-P V1 operates on ABB’s proprietary internal excitation bus. External communication to DCS or SCADA systems is handled by upstream gateway modules — such as PROFIBUS or Modbus adapters — and is not affected by this board replacement.

Q: Can this board be installed in a UNITROL 5000 cubicle originally configured for UNITROL 1000?
A: Compatibility depends on the specific cubicle revision and backplane version. Please provide your cubicle nameplate data and existing board part numbers when inquiring, and our engineers will confirm fit before shipment.

Q: What is the physical installation space requirement?
A: The board dimensions match the original OEM specification. No additional clearance or cubicle modification is needed. Standard ESD precautions apply during handling and installation.

Q: How do I minimize downtime during the board swap?
A: Pre-stage the replacement board and verify all tools and documentation before taking the excitation system offline. Coordinate with operations to schedule the swap during a planned outage window. TOPNLMS can provide a pre-shipment test report to support your internal commissioning approval process.

Warranty Assurance

Every 3BHB006208R0001 UNS0883A-P V1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes power-on functional testing, visual inspection for component damage, connector integrity verification, and secure packaging in anti-static shielding with foam-lined export cartons suitable for international air and sea freight.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our average response time for warranty inquiries is under 24 hours. We maintain reserve stock of high-demand UNITROL boards specifically to support rapid warranty replacements without extended lead times.

For procurement and engineering teams, we can provide a formal pre-shipment test report, packing list, and commercial invoice with HS code documentation to support customs clearance and internal purchasing approval processes. DDP and DAP shipping terms are available for international orders. Bulk order pricing and consignment stock arrangements are available for MRO and OEM customers with recurring demand.

Contact our technical sales team to confirm availability, request a formal quotation, or discuss system-level compatibility before placing your order.
