ABB 3BHB004661R0101 KUC711AE Replacement Upgrade for AC800M

Product Overview

ABB 3BHB004661R0101 KUC711AE Replacement Upgrade for AC800M: Seamless Transition from Legacy Gate Drive Systems

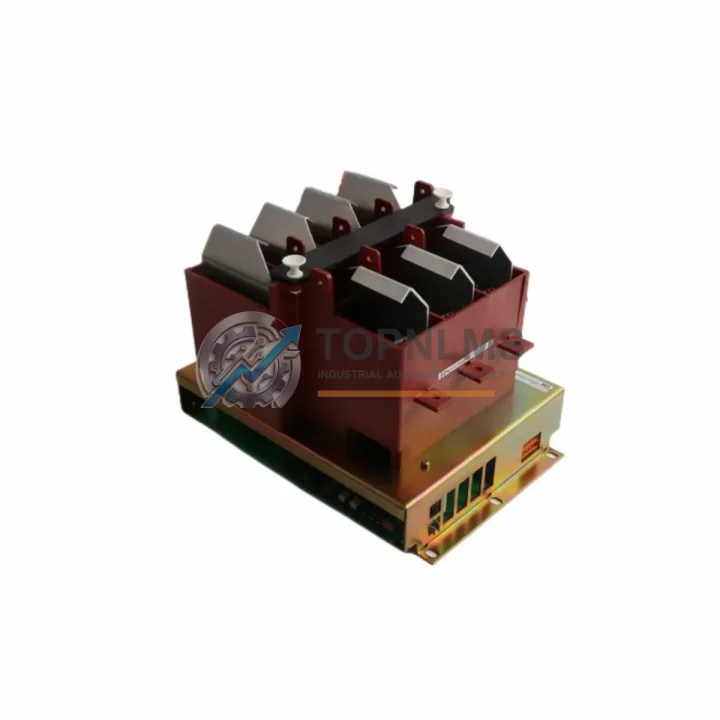

The ABB 3BHB004661R0101 KUC711AE is a Gate Unit Power Supply module engineered for high-power IGCT-based drive and converter systems within ABB’s AC800M and ACS series control architecture. As legacy gate drive boards reach end-of-life or become increasingly difficult to source, facilities running ABB ACS6000, ACS5000, or PEC (Power Electronics Controller) platforms face mounting pressure to identify reliable, drop-in compatible replacements that preserve existing wiring infrastructure, communication topology, and control cabinet layout.

This module serves as a direct functional replacement for obsolete or failed KUC711AE units, delivering the same gate pulse generation, power conditioning, and IGCT firing control required by the original system design. Whether your plant is executing a scheduled overhaul, responding to an unplanned trip, or proactively building a critical spare inventory, the 3BHB004661R0101 KUC711AE is available in stock and ready for immediate dispatch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KUC711AE replacement rarely happens in isolation. In most AC800M and ACS6000 retrofit projects, engineers simultaneously address adjacent components to ensure system-wide reliability. During the gate unit swap, it is common practice to inspect and replace the SDCS-CON-4 converter control board and the RINT-5611C RDCO fiber optic interface module, both of which share the same communication backbone and are subject to similar aging cycles. If the IGCT thyristor itself shows elevated gate resistance or leakage, the 5SHY 35L4522 IGCT module should be evaluated for concurrent replacement to avoid a second outage.

On the control side, facilities running AC800M CPUs — particularly the PM864A or PM866A processor modules — should verify firmware compatibility and back up the Control Builder M project before the swap. The TB820V2 ModuleBus modem and CI854A PROFIBUS DP interface modules, which handle field I/O and drive communication respectively, should also be confirmed operational, as a degraded communication link can mask the root cause of a gate unit fault and lead to misdiagnosis.

For cabinet-level work, the DSQC661 power supply unit (where applicable in hybrid ABB robot-drive installations) and the UFC760BE101 gate driver board are frequently co-sourced alongside the KUC711AE to consolidate shipping, reduce logistics overhead, and complete the overhaul in a single maintenance window. Signal isolation between the gate drive fiber outputs and the control rack is typically maintained through existing AGDR-71C gate driver interface assemblies, which should be cleaned and inspected during installation.

Retrofit Guidance FAQ

Q: Can I replace the KUC711AE without modifying existing cabinet wiring?
A: Yes. The 3BHB004661R0101 KUC711AE is a direct form-fit-function replacement. The 24 VDC auxiliary power connector, fiber-optic gate pulse cables, and module rail mount are identical to the original. No rewiring is required.

Q: Do I need to re-download the AC800M application after replacement?
A: No application re-download is necessary. The gate unit does not store application logic. Back up your AC800M project using Control Builder M before the swap, restore parameters post-installation, and perform a controlled test start to verify gate pulse timing.

Q: Is the DDCS fiber communication link affected during replacement?
A: The DDCS/RDCO fiber link connects the AC800M CPU to the drive’s RINT interface, not directly to the KUC711AE. Replacing the gate unit does not interrupt the communication topology. Confirm fiber connector cleanliness and RDCO channel assignment after installation.

Q: What physical space is required in the control cabinet?
A: The KUC711AE occupies the same slot footprint as the original module. No cabinet modifications, additional DIN rail space, or ventilation changes are required. Confirm module orientation markings before seating.

Q: How do I verify the replacement is functioning correctly after installation?
A: After restoring parameters and performing a no-load test start, monitor gate pulse feedback signals via the AC800M diagnostic interface. Confirm IGCT firing confirmation signals are present on all phases before applying load. Log the first 10 start cycles for baseline comparison.

Warranty Assurance

Every ABB 3BHB004661R0101 KUC711AE shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes functional verification including power-on self-test, gate pulse output check, and visual inspection for connector integrity and PCB condition. Units are packed in anti-static shielding with foam-lined cartons to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing. Our technical team is available to assist with installation guidance, fault diagnosis, and compatibility confirmation before and after purchase. Typical dispatch for in-stock units is within 1–3 business days via DHL Express, FedEx International Priority, or TNT, with tracking provided at time of shipment.

For bulk procurement, spare inventory programs, or urgent AOG (Aircraft on Ground equivalent) industrial emergency orders, contact our sales team directly for expedited handling and volume pricing.
