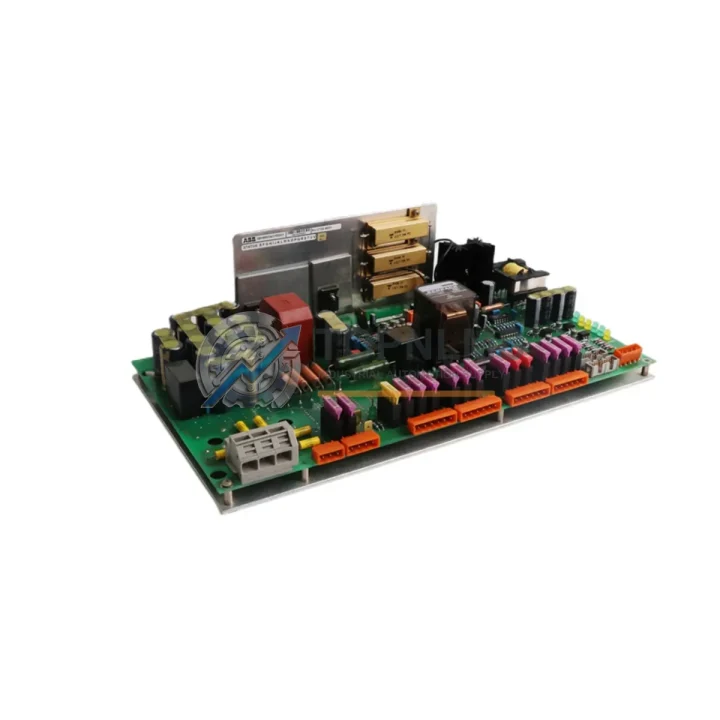

ABB 3BHB003431R0101 KUC720 AE01 Ruggedized Excitation Module

Product Overview

ABB 3BHB003431R0101 KUC720 AE01 Ruggedized Excitation Module: Industrial Resilience for Harsh Environments

The ABB 3BHB003431R0101 KUC720 AE01 is a high-performance excitation control board engineered for continuous, fault-tolerant operation in the most demanding industrial environments. As a core component of ABB’s UNITROL excitation control system, this module delivers precision voltage regulation and generator field control under conditions of extreme temperature variation, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in power generation, oil and gas, mining, metallurgy, and heavy process industries.

Manufactured in Germany to ABB’s stringent quality standards, the KUC720 AE01 board integrates seamlessly within the UNITROL 5000 and UNITROL 6000 platform architectures, providing the excitation backbone that keeps synchronous generators and large AC motors operating within safe, stable parameters. Its ruggedized PCB design, conformal coating, and industrial-grade component selection ensure reliable performance across the full lifecycle of a power plant or process facility — not just during commissioning, but through years of continuous 24/7 operation.

Rugged Specifications Table

Comprehensive Protection Solutions

The KUC720 AE01 excitation control board does not operate in isolation — it is the nerve center of a broader protection and control architecture. In a typical UNITROL-based power generation panel, this board works in concert with the ABB KUC711 AE01 power interface module, which conditions and distributes the DC excitation current to the generator field winding. Upstream, the ABB SDCS-CON-4 control board or equivalent DCS I/O module provides the setpoint references and interlock signals that the KUC720 AE01 executes in real time.

For installations requiring redundant protection, the KUC720 AE01 is typically paired with an ABB REG216 or REG316 generator protection relay, ensuring that any excitation anomaly — overvoltage, loss of field, or rotor earth fault — triggers a coordinated trip before equipment damage occurs. In facilities where the generator feeds directly into a high-voltage bus, the excitation system also interfaces with ABB REF615 feeder protection IEDs via hardwired binary I/O or IEC 61850 GOOSE messaging through a dedicated communications module.

Within the control cabinet, the KUC720 AE01 shares the backplane with ABB UNITROL 6000 I/O expansion modules that handle analog measurement inputs — stator voltage, stator current, and reactive power — feeding the automatic voltage regulator (AVR) algorithm running on the KUC720 AE01 itself. Terminal modules such as the ABB TU810V1 or compatible S800 I/O terminal units provide the field-side wiring interface, simplifying maintenance and reducing the risk of wiring errors during replacement. Industrial power supply units rated for 24 VDC auxiliary power — such as the ABB CP-E 24/5.0 — provide the stable, noise-filtered supply voltage that the excitation board demands for accurate analog signal processing.

In facilities running mixed automation architectures, the UNITROL excitation system communicates upstream to ABB AC500 PLC controllers or third-party DCS platforms via PROFIBUS DP or Modbus RTU, enabling centralized supervisory control and SCADA integration without compromising the real-time response of the local excitation loop. Safety relay modules — such as the ABB JOKAB SMILE series — are often installed in the same cabinet to provide emergency stop and safe-state logic that overrides the excitation system during personnel access or fault conditions.

Application in Critical Infrastructure

The ABB 3BHB003431R0101 KUC720 AE01 is deployed across the full spectrum of critical infrastructure where generator stability is non-negotiable:

Power Generation & Utilities: In thermal, hydro, and gas turbine power plants, the KUC720 AE01 maintains terminal voltage within ±0.5% of setpoint across load swings from no-load to full rated output. Grid-connected generators depend on precise reactive power control — a function the UNITROL excitation system performs continuously, preventing voltage collapse during peak demand events.

Oil & Gas Facilities: Offshore platforms and onshore processing plants operate captive generators in classified hazardous areas. The KUC720 AE01, installed in pressurized or purged control enclosures, provides the excitation control that keeps these generators online through process upsets, motor starting transients, and fault-ride-through events mandated by facility safety cases.

Mining & Mineral Processing: High-power synchronous motors driving ball mills, SAG mills, and conveyor systems in underground and open-pit mines rely on UNITROL-based excitation for power factor correction and soft-start capability. The KUC720 AE01’s vibration-tolerant design withstands the constant mechanical shock transmitted through the mine structure.

Metallurgy & Steel Production: Arc furnace installations and rolling mill drives generate severe harmonic disturbances and voltage flicker. The KUC720 AE01’s fast AVR response — with closed-loop bandwidth optimized for generator excitation dynamics — suppresses these disturbances before they propagate to sensitive process instrumentation.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating pump stations with standby generators use the UNITROL excitation system to ensure seamless transfer from grid to generator power during outages, protecting continuous treatment processes from interruption.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3BHB003431R0101 KUC720 AE01?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified excitation control function within the warranty period, we will repair or replace it at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification.

Q2: How is each unit tested before shipment?
Every KUC720 AE01 board undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional verification, and where applicable, bench-level AVR loop testing to confirm analog I/O response and communication interface integrity. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 3BHB003431R0101 compatible with both UNITROL 5000 and UNITROL 6000 platforms?
Yes. The KUC720 AE01 is designed for use within the UNITROL 5000 and UNITROL 6000 excitation system families. The alternate part number 3BHB000652R0101 is a functionally equivalent variant used in certain regional configurations. Customers should confirm the exact platform revision with their site documentation before ordering; our technical team can assist with cross-referencing if the original part number is unclear.

Q4: Can you support long-term spare parts supply and replacement planning?
Yes. We maintain stock of the KUC720 AE01 and related UNITROL excitation modules to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For facilities with aging UNITROL installations, we recommend holding at least one spare KUC720 AE01 on-site given the lead times associated with OEM procurement. Contact our team to discuss volume pricing, consignment stock arrangements, or obsolescence management programs.
