ABB 3BHB003230R0101 Original Industrial Spare UNITROL 5000 Compatible

Product Overview

ABB 3BHB003230R0101 5SXE05-0152 Original Spare UNITROL 5000: System Stability & Industrial Spare Maintenance Value

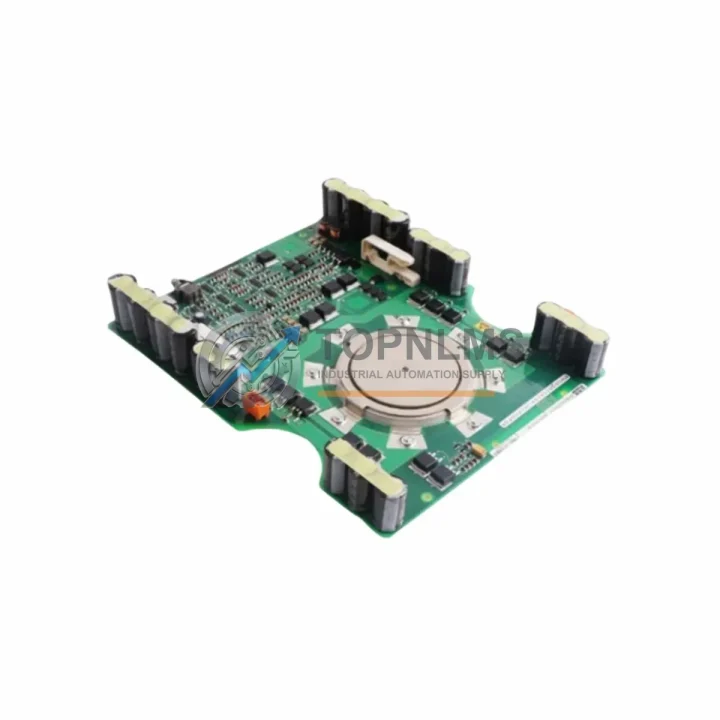

The ABB 3BHB003230R0101 / 5SXE05-0152 is a genuine original excitation drive board engineered for the ABB UNITROL 5000 automatic voltage regulator (AVR) and excitation control system. Deployed extensively in power generation facilities, large motor drive applications, and heavy industrial plants, this board governs the precise regulation of generator field current — a function absolutely critical to grid stability, voltage quality, and continuous production uptime. When this component degrades or fails, the consequences extend far beyond a single machine: uncontrolled voltage excursions, generator trips, and cascading shutdowns can halt an entire production line or power station.

Sourced from ABB’s authorized supply chain and shipped from verified stock, every unit undergoes pre-shipment functional verification. This listing covers the genuine OEM part number, ensuring full pin-compatible, firmware-compatible, and parameter-compatible drop-in replacement for existing UNITROL 5000 installations — without requiring system reconfiguration or re-commissioning of the AVR controller.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that an excitation drive board failure rarely occurs in isolation. The UNITROL 5000 excitation system is an integrated architecture: the 3BHB003230R0101 drive board works in concert with the UNITROL 5000 AVR controller board (3BHB003230R0102), the thyristor bridge assembly, and the field flashing circuit. When scheduling a planned outage to replace this board, it is best practice to simultaneously inspect — and where service hours are elevated, proactively replace — the UNITROL 5000 pulse transformer board and the measurement input board, as these share the same thermal and electrical stress cycles within the excitation cabinet.

Within the same control cabinet, the 24 VDC auxiliary power supply module feeding the UNITROL 5000 logic circuits should be load-tested during the same maintenance window. A marginal PSU is a common root cause of intermittent excitation faults that are frequently misdiagnosed as drive board failures, leading to unnecessary component replacement and extended troubleshooting time. Similarly, the fiber optic communication links between the AVR and the plant DCS or SCADA system should be cleaned and signal-level verified — degraded fiber connections can cause spurious AVR trips that accelerate drive board wear through repeated inrush events.

At the generator terminal box level, inspect the current transformer (CT) secondary wiring and the potential transformer (PT) fuse modules that feed the UNITROL 5000 measurement inputs. Blown PT fuses are a frequently overlooked cause of AVR instability and voltage regulation drift. If the plant operates multiple generators in parallel, also verify the cross-current compensation (reactive droop) resistor modules and the synchronizing check relay settings, as these interact directly with the excitation control loop and can mask underlying drive board degradation.

For facilities running legacy ABB UNITROL 1000 or UNITROL 2000 systems alongside UNITROL 5000 units, this is an ideal time to audit the UNITROL 1000 regulator cards and UNITROL 2000 firing boards for end-of-life indicators. Maintaining a consolidated spare parts inventory that covers multiple UNITROL generations significantly reduces emergency procurement lead times and supports a unified preventive maintenance schedule across the entire power generation fleet. A single planned inspection event that addresses the drive board, PSU module, fiber links, PT fuses, and communication interfaces delivers far greater system reliability than reactive single-component replacement.

Strategic Replacement Solutions

The ABB UNITROL 5000 platform has been in service at power stations and industrial plants worldwide for over two decades. As OEM production of certain sub-assemblies transitions to newer platforms, securing verified original spare boards like the 3BHB003230R0101 / 5SXE05-0152 from a reliable distributor becomes a strategic priority — not merely a reactive maintenance task.

Unlike third-party remanufactured boards, this original ABB unit retains the factory-calibrated gate firing timing, protection thresholds, and EMC characteristics that the UNITROL 5000 system was commissioned with. This means zero re-commissioning time: the replacement board is installed, the system is powered up, and the generator returns to service on the existing parameter set. For plants operating under tight maintenance windows — particularly those with contractual uptime obligations or grid dispatch commitments — this plug-and-play compatibility directly translates to reduced mean time to repair (MTTR) and lower total maintenance cost.

Facilities managing aging control infrastructure should consider holding at least one cold-standby unit of the 3BHB003230R0101 on-site. Given typical lead times for specialty industrial electronics, a local spare eliminates the risk of extended generator outages caused by procurement delays. Combined with a documented inspection and replacement interval, this approach converts excitation system maintenance from a reactive, high-cost emergency into a planned, budget-predictable activity that supports long-term asset lifecycle management and operational continuity.

Support FAQ

Q1: Is this an original ABB part or an aftermarket compatible replacement?
This is a genuine original ABB part bearing part number 3BHB003230R0101 / 5SXE05-0152. It is not a remanufactured, cloned, or third-party compatible board. Every unit is sourced from verified ABB supply channels and undergoes pre-shipment functional inspection before dispatch.

Q2: Will this board work as a direct drop-in replacement without re-commissioning the UNITROL 5000?
Yes. The 3BHB003230R0101 is a pin-compatible, firmware-compatible OEM replacement. In standard installations, no parameter re-entry or AVR re-commissioning is required. The existing UNITROL 5000 parameter set remains intact after board swap. If the system has been modified from factory defaults, a parameter backup prior to replacement is recommended as a precaution.

Q3: What does the 12-month warranty cover, and how do I initiate a claim?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with the order number, a description of the fault, and photographic evidence. Replacement or refund will be processed within the agreed service timeline.

Q4: How should this board be stored if purchased as a standby spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, relative humidity below 70%, non-condensing). Avoid proximity to strong magnetic fields or high-voltage equipment. Inspect packaging integrity annually. Properly stored, the board maintains full functional reliability for 3–5 years as a standby spare, making it a cost-effective inventory investment for facilities with long-term UNITROL 5000 commitments.
