ABB 3BHB003041R0101 Original Industrial Spare UFC719 Compatible: Ensuring System Stability in High-Power Drive Environments

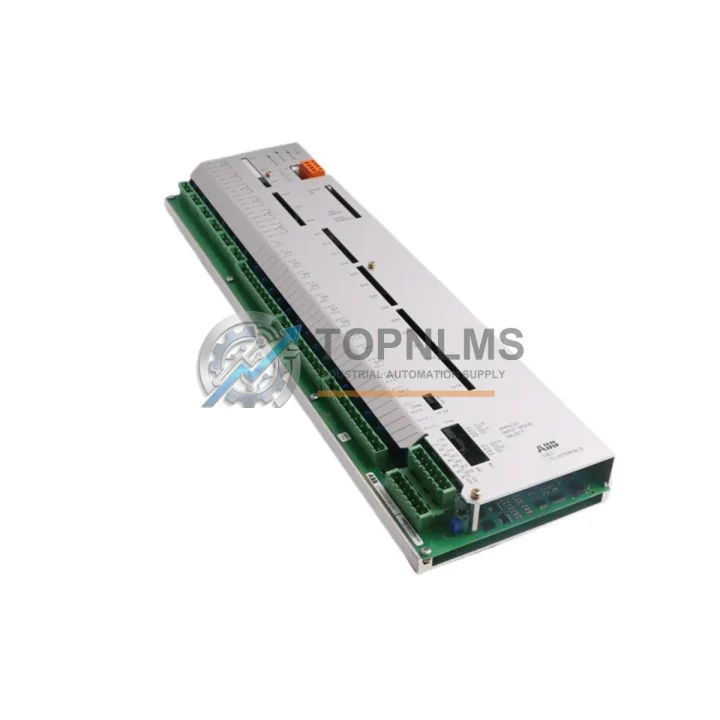

The ABB 3BHB003041R0101 UFC719 AE101 IOEC I/O Expander Card is a mission-critical original spare part designed for ABB’s high-power drive systems, most notably the ACS6000 medium-voltage drive platform. In industrial facilities where continuous operation is non-negotiable — steel mills, cement plants, marine propulsion systems, oil & gas compressor stations, and large-scale pump/fan applications — this module serves as the backbone of I/O signal expansion within the drive control architecture. Sourced directly from ABB’s manufacturing chain in Germany, this card carries the full engineering pedigree required for reliable long-term deployment in demanding environments.

When a high-power drive system experiences unexpected shutdowns, erratic speed control, or loss of feedback signals, the IOEC expander card is frequently among the first components to be evaluated during fault diagnosis. Its role in bridging the drive controller with field-level sensors, actuators, and protection circuits makes it indispensable to both normal operation and emergency response. Stocking a verified original 3BHB003041R0101 eliminates the risk of extended downtime caused by sourcing delays — a cost that routinely exceeds the value of the spare part itself within the first hour of unplanned stoppage.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for ACS6000-based drive systems should treat the 3BHB003041R0101 UFC719 AE101 as part of a broader inspection cycle rather than an isolated component. During scheduled cabinet shutdowns — typically aligned with annual or biennial plant turnarounds — maintenance teams should simultaneously evaluate the condition of the UFC760 main control board, which coordinates all I/O expander cards within the drive. A degraded UFC760 can cause false fault signals that are often misattributed to the IOEC card itself, leading to unnecessary replacements.

The SDCS-CON-4 converter control board and associated SDCS-PIN-48 power interface board should be inspected for capacitor aging and solder joint integrity during the same maintenance window. These components share the same control bus and their degradation directly impacts the reliability of I/O signal transmission through the expander card. Similarly, the UFC718 fiber optic communication module — which handles high-speed data exchange between the drive controller and the IOEC layer — should be checked for connector contamination and fiber bend radius compliance.

Power supply integrity is equally critical. The NPOW-41C or equivalent 24VDC auxiliary power supply module feeding the control card rack should be load-tested during each inspection cycle. A marginal power supply operating near its rated capacity will cause intermittent resets of the I/O expander card, producing fault logs that are difficult to reproduce and diagnose. Pairing a replacement 3BHB003041R0101 with a freshly tested power supply module eliminates this variable entirely.

Terminal block integrity on the IOEC wiring harness and field-side terminal strips should be verified with a torque screwdriver and thermal imaging camera during energized inspections. Loose terminations on analog input channels — particularly 4–20 mA process feedback loops from speed sensors or temperature transmitters — are a leading cause of nuisance trips in high-power drive applications. Alongside terminal inspection, the signal isolation barriers protecting analog inputs from ground loops should be tested for leakage current and isolation resistance.

For facilities running legacy ACS6000 installations beyond their original design life, a proactive spares kit should include the 3BHB003041R0101 UFC719 AE101 alongside the UFC722 pulse encoder interface card, RDCO-03 DDCS communication adapter, and at least one spare AINT-02C inverter control interface board. These components collectively cover the most failure-prone elements of the drive’s control and I/O architecture, and their combined procurement cost is a fraction of a single day’s production loss in most heavy industrial settings.

Strategic Replacement Solutions

The 3BHB003041R0101 UFC719 AE101 is a direct original-specification replacement for any UFC719 AE101 card installed in ACS6000 drive cabinets. Unlike third-party alternatives that may require firmware reconfiguration or parameter re-mapping, this original ABB card installs as a plug-in replacement with no software changes required — provided the drive firmware version is compatible with the AE101 hardware revision. This compatibility assurance is critical in facilities where drive parameter sets represent years of tuning effort and cannot be easily reconstructed.

For sites managing aging ACS6000 fleets where ABB factory support has been reduced or discontinued, maintaining a stock of original IOEC expander cards is the most effective strategy for extending system operational life by 5–10 years beyond the nominal end-of-support date. The alternative — full drive replacement — typically involves capital expenditure 50–100 times the cost of a spare card, plus extended installation and commissioning downtime.

When replacing a failed UFC719 AE101 in the field, the recommended procedure includes: (1) documenting all I/O channel assignments and signal types before card removal; (2) verifying the replacement card’s hardware revision matches the original; (3) performing a controlled power-up sequence with all field wiring disconnected; (4) re-connecting field signals one channel group at a time while monitoring drive fault logs. This systematic approach reduces the risk of secondary faults caused by wiring errors during the replacement process and ensures the drive returns to service in a verified, stable state.

Support FAQ

Q1: Is the 3BHB003041R0101 UFC719 AE101 compatible with all ACS6000 drive variants?
The UFC719 AE101 IOEC card is designed for the ACS6000 medium-voltage drive platform. Compatibility depends on the specific drive cabinet configuration and firmware version. We recommend confirming the hardware revision (AE101) matches your existing installation before ordering. Our technical team can assist with compatibility verification based on your drive serial number or cabinet drawing reference.

Q2: What pre-shipment testing is performed on this module?
Every 3BHB003041R0101 unit is function-tested prior to dispatch. Testing covers I/O channel continuity, power rail integrity, and communication interface verification. A test report is available upon request. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receiving the returned unit, with replacement or full refund options available.

Q4: How should this spare part be stored if not immediately installed?
Store the 3BHB003041R0101 in its original ESD-safe packaging in a dry environment at 15–30°C with relative humidity below 70% (non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the card annually if held in long-term storage, and verify connector pin condition before installation. Properly stored, the card maintains full functionality for 5+ years.
