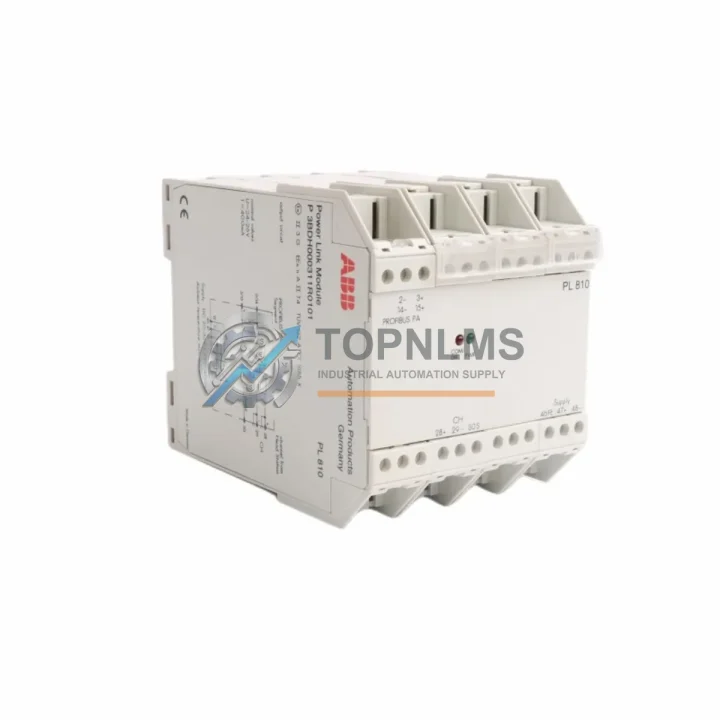

ABB 3BDH000311R0101 PL810 Ruggedized Power Link Module

Product Overview

ABB 3BDH000311R0101 PL810 Ruggedized Power Link Module: Industrial Resilience for Harsh Environments

The ABB 3BDH000311R0101 PL810 Power Link Module is a mission-critical communication backbone component engineered for the ABB AC800M controller platform and S800 I/O system. Designed and manufactured in Germany to ABB’s stringent industrial standards, the PL810 delivers deterministic, high-integrity data exchange between the AC800M process controller and distributed S800 I/O stations across the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery bays, and electromagnetically noisy power generation switchgear rooms.

Where conventional communication modules falter under thermal cycling, conducted EMI, or mechanical shock, the PL810’s ruggedized design maintains continuous, error-free Power Link communication. Its optical fiber-ready architecture eliminates ground-loop interference and provides galvanic isolation, making it the preferred choice for safety-instrumented systems and critical infrastructure where a single communication dropout can trigger costly unplanned shutdowns or, worse, a safety incident.

Rugged Specifications Table

Comprehensive Protection Solutions

The PL810 does not operate in isolation — it is the communication nerve of a tightly integrated ABB AC800M control architecture. In a typical process control cabinet, the PL810 interfaces directly with the ABB PM866 AC800M CPU module, which handles the real-time control logic, while the PL810 manages the high-speed Power Link bus that connects to remote ABB S800 I/O stations such as the AI810 analog input module and DO810 digital output module. These I/O modules collect field signals from transmitters, valve positioners, and motor starters across the plant floor.

For power integrity, the PL810 relies on a stable 24 V DC rail typically supplied by an ABB SD831 or SD832 power supply unit, which provides redundant, regulated DC power to the entire S800 backplane. In safety-critical loops, the PL810 works alongside the ABB AI830A safety analog input module and the ABB DO830 safety digital output module, both certified to IEC 61508 SIL 2/3, ensuring that the communication path from sensor to actuator maintains functional safety integrity.

On the network side, the PL810 communicates upstream to the ABB AC800M PM891 high-performance controller via the internal module bus, while downstream field devices — including ABB ACS880 variable frequency drives and intelligent motor control centers — are integrated through the S800 I/O layer. The ABB CI854 PROFIBUS DP communication interface module often complements the PL810 in hybrid architectures where legacy PROFIBUS field devices must coexist with modern Power Link I/O stations.

In control cabinets where terminal density is high, the PL810 is typically installed alongside ABB TB820V2 media redundancy modules that provide ring-topology redundancy on the Power Link bus, ensuring that a single cable fault does not interrupt process control. This level of redundancy is non-negotiable in continuous production lines — petrochemical crackers, paper mills, and steel rolling mills — where even a 30-second communication loss translates to significant production loss and potential equipment damage.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ABB 3BDH000311R0101 PL810 is deployed in wellhead control panels, compressor station PLCs, and pipeline SCADA outstations. The module’s galvanic isolation and EMI immunity are essential in environments where high-voltage switching transients from compressor motor starters and cathodic protection systems can corrupt unprotected communication buses.

In coal and hard-rock mining operations, the PL810 is installed in explosion-proof control enclosures at the surface and in ventilation control rooms. Its wide operating temperature range accommodates the thermal extremes of underground electrical rooms in tropical mining regions, while its vibration tolerance handles the continuous mechanical shock transmitted through the mine structure from blasting and heavy haulage equipment.

In thermal and hydroelectric power generation, the PL810 serves as the I/O communication link in turbine control systems and boiler management systems. Reliability here is paramount: a communication fault in a turbine protection loop can trigger an emergency trip, costing tens of thousands of dollars per hour in lost generation revenue. The PL810’s deterministic Power Link protocol ensures that protection signals are transmitted within guaranteed cycle times, supporting the fast response requirements of turbine overspeed and flame-failure protection.

In municipal water treatment and wastewater facilities, the PL810 manages I/O communication for pump station automation, chemical dosing control, and effluent monitoring systems. Its resistance to high ambient humidity — common in wet-well pump stations and aeration tank control rooms — ensures long-term reliability without the corrosion-related failures that affect lesser-quality modules.

In metallurgical and steel production, the PL810 operates in rolling mill automation systems where radiated EMI from high-current induction furnaces and large DC drive systems creates one of the most electromagnetically hostile environments in industry. The module’s robust EMC design, combined with fiber-optic Power Link cabling, provides the isolation needed to maintain clean, reliable communication in these conditions.

Security & Quality FAQ

Q1: What warranty does the ABB 3BDH000311R0101 PL810 carry?
Every PL810 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. All modules undergo functional testing prior to dispatch, including power-on verification and communication interface checks. If a unit fails within the warranty period under normal operating conditions, we provide a replacement or full refund — no questions asked.

Q2: How is the module tested before shipment?
Each 3BDH000311R0101 PL810 is inspected for physical integrity, firmware version verification, and electrical continuity before packaging. Units sourced from ABB-authorized channels are cross-referenced against ABB’s genuine part markings and serial number ranges. We do not supply refurbished or remarked modules — only genuine, tested stock.

Q3: Is the PL810 compatible with all AC800M controller versions?
The 3BDH000311R0101 PL810 is compatible with the ABB AC800M controller family, including PM860, PM861, PM864, PM866, and PM891 CPU modules, when used with the corresponding S800 I/O backplane and ABB Control Builder M engineering software. We recommend confirming your firmware revision with our technical team before ordering if you are integrating into an existing system with a specific software baseline.

Q4: Can TOPNLMS support long-term or repeat supply of the PL810?
Yes. TOPNLMS maintains standing inventory of high-demand ABB AC800M and S800 I/O components, including the PL810, to support planned maintenance shutdowns, emergency spare parts programs, and multi-site rollout projects. We can provide volume pricing, reserved stock agreements, and expedited shipping for critical plant requirements. Contact our team at [email protected] or +86 18359293191 to discuss your procurement needs.
