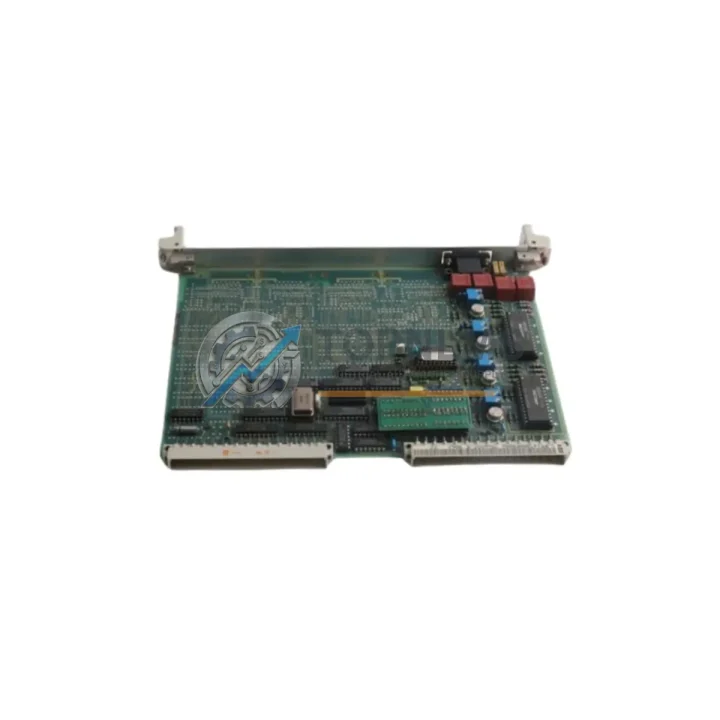

ABB 35TP90 GJR5143600R0001 Original Industrial Spare AC500 Compatible

Product Overview

ABB 35TP90 GJR5143600R0001 Original Industrial Spare AC500 Compatible: Ensuring System Stability in Demanding Automation Environments

In modern industrial facilities, the reliability of a PLC analog output module is not merely a performance metric — it is the foundation of uninterrupted production. The ABB 35TP90 (GJR5143600R0001) is an original analog output module designed for the ABB AC500 PLC platform, one of the most widely deployed programmable logic controller families in process automation, manufacturing, and infrastructure control. Whether you are managing a continuous production line, a water treatment facility, or a complex energy distribution system, this module plays a critical role in translating digital control signals into precise analog outputs that drive field devices such as control valves, variable frequency drives, and positioners.

Sourcing an original, tested spare unit of the 35TP90 GJR5143600R0001 is a proactive decision that separates reactive maintenance teams from those operating at world-class reliability standards. Downtime caused by a failed analog output channel can cascade rapidly — a single unresponsive output can halt a dosing pump, freeze a valve in position, or disable a drive, triggering process shutdowns that cost far more than the component itself. Stocking this module as a verified spare eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your AC500 Control System

A structured preventive maintenance program for an ABB AC500-based control cabinet extends well beyond replacing a single module. When scheduling a planned inspection or responding to an unplanned shutdown involving the 35TP90 GJR5143600R0001, experienced maintenance engineers know that the surrounding components deserve equal scrutiny. Analog output modules operate in close electrical relationship with several other system elements, and a failure in one often signals stress or degradation in adjacent hardware.

Begin any inspection by verifying the AC500 CPU module — typically a PM554, PM564, or PM583 — for firmware integrity and communication health. The CPU is the orchestrator of all I/O activity; a marginal CPU can produce erratic analog output behavior that is incorrectly attributed to the output module itself. Alongside the CPU, inspect the AC500 power supply module (such as the CP502 or CP503) for output voltage stability. Undervoltage conditions on the 24 V DC bus are a leading cause of premature analog module failure and signal drift.

Next, examine the AC500 digital input modules (e.g., DA501 or DA502 series) and digital output modules sharing the same expansion rack. Loose backplane connectors or oxidized bus contacts affect all modules in the rack simultaneously. While the 35TP90 is being replaced or tested, it is efficient practice to reseat all adjacent modules and inspect the AC500 expansion rack or terminal unit for mechanical damage or corrosion on the bus interface.

Field wiring connected to the analog output channels should be inspected for insulation integrity, correct shielding, and proper grounding. Poorly shielded signal cables running parallel to power conductors introduce noise that degrades output accuracy. At the field device end, verify that control valve positioners, variable frequency drive (VFD) analog input cards, and current loop isolators or signal conditioners are within specification — a failed isolator can back-feed voltage onto the output channel and damage the module.

For facilities running mixed analog and digital I/O architectures, it is advisable to maintain spares of the AC500 analog input module (such as the AI523 or AI531) alongside the analog output module. These modules share similar failure modes and are often sourced together during planned maintenance windows. Additionally, AC500 communication modules — including PROFIBUS DP, Modbus TCP, or EtherNet/IP interface cards — should be inspected for connector wear and firmware currency, as communication faults can manifest as frozen analog output values at the field level.

Finally, review the terminal blocks and wiring duct within the control cabinet. Loose screw terminals on analog signal wiring are a disproportionate source of intermittent faults. Spring-clamp terminal blocks are preferred in high-vibration environments. Documenting the as-found condition of all these components during a 35TP90 replacement event transforms a reactive repair into a comprehensive system health audit — maximizing the value of every maintenance window.

Strategic Replacement Solutions: Minimizing Downtime with Original Spares

The ABB AC500 platform has been in active deployment since the mid-2000s, meaning many installed systems are now operating with aging hardware that is no longer in active production at the factory level. The 35TP90 GJR5143600R0001 represents a category of original spare parts that bridges the gap between legacy system continuity and modern reliability expectations.

Unlike generic or counterfeit replacements, an original ABB 35TP90 module is manufactured to the exact electrical tolerances specified in the AC500 system design. This matters critically for analog output accuracy: a module with even a 0.5% calibration deviation can cause a control valve to operate outside its setpoint band, leading to process quality issues or safety system activations. Original spares eliminate this risk entirely.

For facilities managing end-of-life AC500 systems, stocking the 35TP90 alongside compatible CPU and power supply spares creates a self-sufficient maintenance inventory that extends system life by 5–10 years without requiring a full PLC platform migration. This approach is particularly valuable in industries where control system revalidation or re-commissioning carries significant regulatory or operational cost — such as pharmaceutical manufacturing, water treatment, or power generation.

When a 35TP90 failure occurs, the replacement procedure is straightforward: the module is hot-swappable within the AC500 architecture (subject to CPU configuration), meaning a trained technician can restore analog output functionality within minutes. All units supplied by TOPNLMS are tested prior to shipment, with functional verification of all output channels across the full signal range. This pre-shipment testing protocol ensures that the replacement module performs correctly from the moment it is installed, eliminating the risk of receiving a defective spare during a critical production outage.

Support FAQ

Q1: What is the expected service life of the ABB 35TP90 GJR5143600R0001, and how should I plan my spare parts inventory?
The AC500 analog output module is designed for a service life exceeding 10 years under normal operating conditions (ambient temperature within specification, clean power supply, no excessive vibration). For critical production environments, we recommend maintaining at least one spare unit per installed system. Facilities with multiple AC500 racks should consider a 1:4 or 1:6 spare ratio depending on criticality. The 12-month warranty provided on all TOPNLMS units covers functional defects discovered after installation.

Q2: Is the 35TP90 GJR5143600R0001 compatible with all AC500 CPU variants, and can it replace older analog output modules in the same rack?
The 35TP90 is compatible with the ABB AC500 PM5xx CPU family, including PM554, PM564, PM573, PM583, and their ETH variants. It is designed to fit standard AC500 expansion racks and terminal units. If you are replacing an older analog output module from an earlier AC500 generation, verify the terminal unit type (TB5xx series) to ensure mechanical and electrical compatibility. Our technical team can assist with compatibility verification prior to purchase.

Q3: What pre-shipment testing does TOPNLMS perform on the 35TP90, and what documentation is provided?
All 35TP90 units undergo functional output channel testing across the full 4–20 mA and 0–10 V signal ranges prior to shipment. Units are inspected for physical condition, connector integrity, and firmware label verification. A test report is available upon request. Each unit ships with original packaging where available, and all orders include a 12-month warranty certificate. Expedited shipping options are available for urgent maintenance requirements.

Q4: What should I do if the replacement 35TP90 module does not restore normal analog output operation after installation?
If installing a new 35TP90 does not resolve the fault, the issue is likely upstream or downstream of the module. Check the AC500 CPU configuration to confirm the module address and channel parameters are correctly mapped. Verify 24 V DC supply voltage at the rack bus. Inspect field wiring for short circuits or open loops on the affected output channels. If the CPU is reporting a hardware fault code, consult the AC500 system error log. TOPNLMS technical support is available at [email protected] to assist with fault diagnosis and, if required, warranty replacement processing.
