ABB 1SVR427026R0000 Original Industrial Spare CP-C Compatible

Product Overview

ABB 1SVR427026R0000 Original Industrial Spare CP-C Compatible: System Stability for Mission-Critical Automation

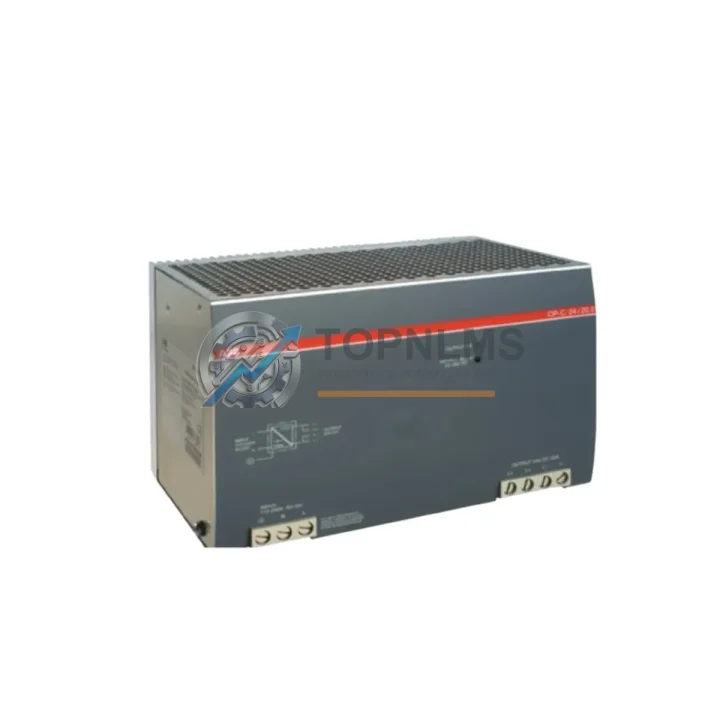

The ABB 1SVR427026R0000 — commercially designated as the CP-C 24/20.0 — is a high-capacity 24 VDC, 20 A DIN rail-mounted power supply engineered for continuous-duty industrial control applications. As a cornerstone component in PLC cabinets, DCS marshalling panels, and distributed I/O enclosures, this unit delivers the stable, regulated DC bus voltage that downstream automation hardware depends on for reliable operation. Whether you are managing a scheduled shutdown, responding to an unplanned trip, or building a strategic spare-parts inventory, sourcing an original ABB 1SVR427026R0000 is a direct investment in uptime and system longevity.

Industrial facilities running ABB CP-C series power supplies across multiple control cabinets understand the operational risk of a single power supply failure. A 24 VDC rail collapse can simultaneously disable PLC CPU modules, remote I/O racks, relay output modules, and field instrument loops — cascading a single component fault into a full-line shutdown. Keeping a verified original 1SVR427026R0000 on the shelf eliminates that risk and reduces mean time to repair (MTTR) from hours to minutes.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply replacement is rarely an isolated event. When a CP-C 24/20.0 (1SVR427026R0000) is flagged for replacement — whether due to output ripple exceeding tolerance, thermal derating, or outright failure — experienced maintenance engineers treat the intervention as an opportunity for a broader cabinet health audit. The 24 VDC bus feeds a chain of interdependent components, and a degraded power supply often masks or accelerates wear in adjacent hardware.

During the replacement procedure, it is standard practice to inspect the ABB CP-C 24/5.0 and CP-C 24/10.0 units installed in the same cabinet for output voltage drift and capacitor aging — these smaller-rated siblings share the same CP-C platform and exhibit similar end-of-life characteristics. Simultaneously, the ABB S800 I/O modules (such as the AI810 analog input or DO810 digital output cards) powered from this rail should be checked for communication errors logged in the DCS historian, as intermittent power fluctuations often manifest as sporadic I/O faults before a hard failure occurs.

The terminal blocks and DIN rail bus connectors feeding the power supply output should be torque-checked and inspected for oxidation — loose connections at 20 A loads generate localized heat that accelerates insulation degradation. If the cabinet includes ABB S200 series miniature circuit breakers on the 24 VDC distribution, their trip curves and contact condition should be verified during the same outage window. This is also the right moment to inspect any ABB E200 fuse modules protecting individual 24 VDC branch circuits to confirm fuse element integrity and holder contact resistance.

For facilities running ABB AC500 PLC systems, the CPU module (such as the PM573 or PM591) and its associated TB521 or TB541 terminal base units draw directly from the 24 VDC rail. A power supply swap is the ideal moment to confirm firmware versions, battery backup status on the CPU, and the integrity of the PROFIBUS or CS31 communication cables routed through the cabinet. RS-485 signal isolators in the same enclosure are low-cost items that are frequently overlooked until they cause a network fault — replacing them proactively during a planned outage costs a fraction of an unplanned trip.

Where the control system includes ABB Panel Builder 600 HMI terminals or third-party operator panels powered from the same 24 VDC bus, screen brightness degradation and touch-response latency are early indicators of undervoltage conditions — symptoms that disappear once a fresh 1SVR427026R0000 is installed. Proactive inspection of the HMI’s internal fuse module during the same maintenance window eliminates a common nuisance fault. Finally, if the facility operates a redundant power supply configuration using an ABB CP-A RU redundancy module, the diode module and load-sharing balance should be re-verified after installing the new unit to ensure both supplies share the 20 A load symmetrically.

Strategic Replacement Solutions

The ABB 1SVR427026R0000 is a direct, form-fit-function replacement for any CP-C 24/20.0 unit regardless of production batch or firmware revision. Its wide-range AC input (100–240 VAC) makes it universally deployable across facilities with different grid standards — a significant advantage for multinational manufacturers standardizing their spare-parts catalog across plants in Europe, Asia, and the Americas.

For aging installations originally built around earlier ABB power supply generations, the CP-C 24/20.0 provides a drop-in upgrade path: same DIN rail footprint, same output connector pitch, and identical output voltage setpoint — meaning no rewiring, no PLC parameter changes, and no re-commissioning of downstream I/O. Maintenance teams can complete the swap within a single planned maintenance window, restoring full system capacity without extended downtime.

In facilities where the original 1SVR427026R0000 has been discontinued from local distributor stock, sourcing a verified original unit from a specialist industrial MRO supplier ensures that the replacement carries the same quality certifications (CE, UL, cUL) required for compliance with local electrical installation standards. Counterfeit or grey-market power supplies in this power class are a documented source of premature field failures and, in worst cases, fire risk in enclosed control cabinets.

Each unit supplied by TOPNLMS undergoes functional output voltage and load regulation testing prior to dispatch. Units are shipped in anti-static, impact-resistant packaging with full traceability documentation. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions, providing procurement teams with the confidence needed to approve the purchase through standard MRO channels.

Support FAQ

Q1: Is the 1SVR427026R0000 a direct drop-in replacement for my existing CP-C 24/20.0 without any wiring changes?
Yes. The 1SVR427026R0000 is the OEM part number for the CP-C 24/20.0 and is a direct drop-in replacement. Output voltage, current rating, DIN rail mounting dimensions, and terminal block positions are identical across all production batches. No rewiring or reconfiguration is required.

Q2: How is compatibility with my ABB AC500 or S800 DCS system verified before shipment?
Compatibility is confirmed against ABB’s published CP-C series documentation and cross-referenced with the 1SVR427026R0000 datasheet. Each unit is bench-tested for output voltage accuracy (24 VDC ±1%) and load regulation at rated current before dispatch. If you require a specific compatibility statement for your system configuration, contact [email protected] with your cabinet BOM.

Q3: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions (correct input voltage, rated load, specified ambient temperature). To initiate a claim, contact [email protected] with your order reference and a fault description. We will arrange return logistics and either repair or replace the unit at no additional cost.

Q4: What is the recommended inventory strategy for CP-C 24/20.0 units in a multi-cabinet facility?
For facilities with three or more control cabinets sharing the CP-C 24/20.0 platform, a minimum of one spare unit per five installed units is the industry-standard recommendation. Given the 480 W output class and the critical nature of the 24 VDC bus in PLC and DCS architectures, many maintenance managers opt for a two-unit buffer to cover simultaneous failures during peak production periods. Bulk procurement pricing is available — contact [email protected] for volume quotations.
