ABB 1SFB536068D1001 Original Industrial Spare AF Series Compatible

Product Overview

ABB 1SFB536068D1001 Original Industrial Spare AF Series Compatible: System Stability & Industrial Maintenance Value

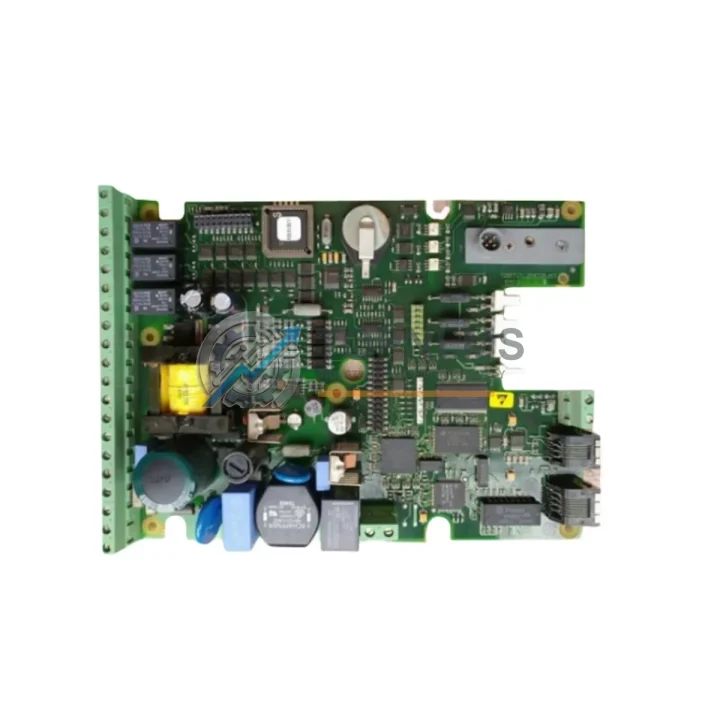

The ABB 1SFB536068D1001 is an original control PCB designed for ABB’s AF Series contactor platform — one of the most widely deployed contactor families in industrial motor control centers, switchgear panels, and process automation cabinets worldwide. When this board fails, the entire contactor becomes inoperable, triggering unplanned downtime that can cascade across production lines, HVAC systems, pump stations, and conveyor drives. Stocking a verified original replacement is the single most effective measure a maintenance team can take to compress mean time to repair (MTTR) and protect system uptime.

At TOPNLMS, every 1SFB536068D1001 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Worldwide logistics are supported, with most orders processed within 1–2 business days.

Critical Technical Specs

Preventive Maintenance Strategy

A control PCB failure in an AF Series contactor rarely occurs in isolation. In most field cases, the root cause involves voltage transients, coil overheating from repeated switching cycles, or moisture ingress — conditions that simultaneously stress adjacent components in the same control cabinet. A disciplined preventive maintenance program should treat the 1SFB536068D1001 replacement as a trigger for a broader cabinet inspection rather than a single-point fix.

When replacing this control board, maintenance engineers should concurrently inspect the AF Series main contact assemblies (AF09, AF16, AF26, AF38, AF65) for contact wear and arc erosion — worn main contacts accelerate coil board stress through increased inrush cycling. The auxiliary contact blocks (such as the 1SBN010000R1000 series) mounted on the contactor should be checked for mechanical play and contact resistance, as degraded auxiliary contacts can cause false feedback signals to the PLC or DCS, masking the true fault source.

Upstream of the contactor, the ABB CP-S series DIN-rail power supplies feeding the control circuit should be load-tested; an aging power supply with rising output ripple is a common but overlooked cause of electronic coil board degradation. Similarly, ABB S200 series miniature circuit breakers protecting the control circuit should be verified for correct trip characteristics — an undersized MCB that nuisance-trips under motor inrush can subject the PCB to repeated voltage interruptions.

For installations using motor protection, the ABB EF series electronic overload relays or T series thermal overload relays paired with the AF contactor should be recalibrated or replaced if the motor has been rewound or if load conditions have changed. Overload relay miscoordination is a leading cause of repeated contactor cycling that shortens PCB service life.

In networked automation environments, the ABB fieldbus adapter modules (FECA, FEPL, or FDNA series) connected to the AF contactor for DeviceNet, PROFIBUS, or EtherNet/IP integration should be inspected for firmware currency and connector integrity. A corrupted fieldbus adapter can generate spurious coil energization commands that thermally stress the control PCB over time.

Finally, ABB CM-series monitoring relays for voltage, current, and phase monitoring, along with OT series rotary disconnect switches in the same feeder circuit, should be included in the inspection checklist. A comprehensive cabinet audit at the time of PCB replacement transforms a reactive repair into a proactive maintenance event — reducing the probability of a repeat failure within the next 12–24 months.

Strategic Replacement Solutions

The 1SFB536068D1001 is a direct OEM replacement for the original control board fitted to AF Series contactors at the factory. Unlike third-party aftermarket boards, the original ABB PCB maintains full compatibility with the wide-range AC/DC coil architecture that defines the AF platform — ensuring correct pick-up voltage thresholds, drop-out timing, and EMC performance without recalibration or parameter adjustment.

For facilities managing aging AF Series installations originally commissioned 10–15 years ago, this board provides a cost-effective path to system life extension without the capital expenditure of full contactor replacement. A single board swap restores the contactor to factory specification, preserving the existing wiring, DIN-rail footprint, and control circuit topology. This is particularly valuable in legacy MCC lineups where replacing the entire contactor would require panel modifications, re-termination of load cables, and extended outage windows.

Procurement teams managing multi-site industrial facilities are advised to maintain a minimum buffer stock of 2–3 units per site, particularly for critical process lines where contactor failure triggers a safety shutdown. The compact form factor and stable shelf life of the PCB make it an efficient stocking item with low carrying cost relative to the downtime risk it mitigates.

Support FAQ

Q1: How do I verify that 1SFB536068D1001 is the correct board for my AF Series contactor?
Locate the part number label on the existing control board inside the contactor housing. The 1SFB536068D1001 designation should appear on the PCB silkscreen or on the contactor’s internal component label. If the label is damaged, cross-reference the contactor’s full model number (e.g., AF09-30-10, AF26-30-10) against ABB’s spare parts documentation or contact our technical team at [email protected] for confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 1SFB536068D1001 unit undergoes visual inspection for PCB damage, component integrity checks, and functional coil circuit verification prior to packaging. Units that do not pass inspection are quarantined and not dispatched. A test record is retained for each shipped unit and is available upon request.

Q3: What does the 12-month warranty cover, and how is a claim initiated?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order reference, a description of the failure mode, and photographic evidence of the defect. Replacement or refund will be processed within 5 business days of claim approval.

Q4: Can this board be used as a long-term inventory spare for facilities with multiple AF Series contactors?
Yes. The 1SFB536068D1001 is compatible across the AF Series platform range and is well-suited for consolidated spare parts inventory programs. Its stable shelf life under standard storage conditions (dry, temperature-controlled environment, original anti-static packaging) supports multi-year stocking strategies. Facilities with 10 or more AF Series contactors in service are advised to maintain at least 2 units on-hand to ensure same-shift replacement capability during unplanned outages.
