ABB 1SAP150100R0277 Ruggedized PLC CPU Module for Harsh Environments

Product Overview

ABB 1SAP150100R0277 Ruggedized PLC CPU Module for Harsh Environments

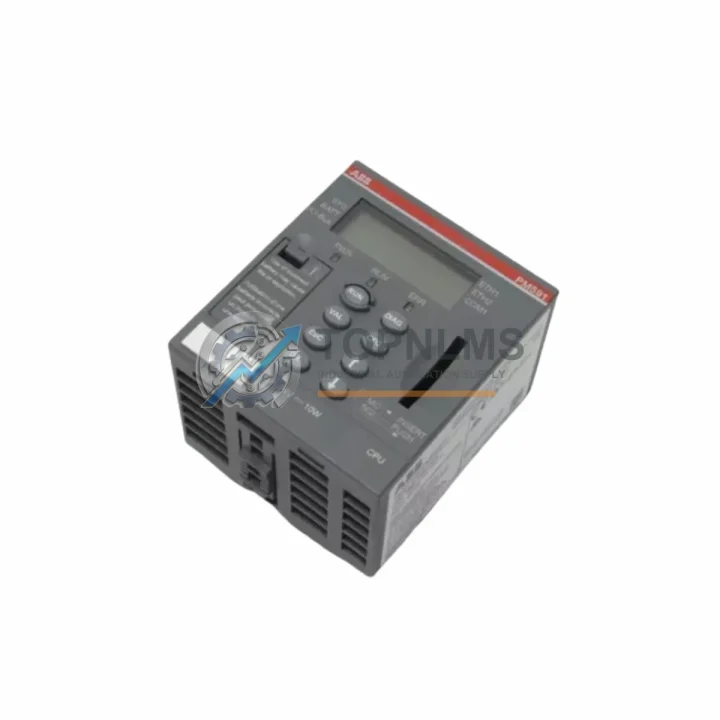

The ABB 1SAP150100R0277 — commercially designated as the PM571-ETH — is a high-performance CPU module within ABB’s proven AC500 PLC platform, engineered to deliver uncompromising control reliability in the most demanding industrial environments. Designed and manufactured in Germany to ABB’s stringent quality standards, this module is purpose-built for continuous operation in conditions characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed on a petrochemical processing line, a deep-shaft mining conveyor system, or a high-voltage power substation, the PM571-ETH maintains deterministic scan-cycle performance and communication integrity where lesser controllers fail.

At its core, the PM571-ETH integrates an onboard Ethernet port supporting MODBUS TCP, FTP, and web-server diagnostics — enabling seamless integration into modern SCADA architectures and IIoT-ready plant networks without additional communication gateways. Its compact DIN-rail form factor and tool-free terminal connection system reduce installation time in congested control cabinets, while its wide operating temperature range and conformal-coated PCB ensure long-term reliability in environments where condensation and corrosive airborne particulates are routine hazards.

For procurement engineers and maintenance planners managing critical infrastructure, the 1SAP150100R0277 represents a direct, specification-matched replacement for aging AC500 CPU modules, eliminating costly re-engineering of existing I/O wiring, fieldbus configurations, and application programs. TOPNLMS maintains verified stock of this module, with each unit passing pre-shipment functional testing before dispatch.

Rugged Specifications Table

Comprehensive Protection Solutions

The PM571-ETH CPU module is the command center of a broader AC500-based control architecture. In a fully configured control cabinet, it operates in close coordination with ABB TB521-ETH terminal base units, which provide the physical backplane connectivity for I/O expansion. Digital and analog signals from the field are marshaled through ABB DC532 digital input modules and ABB DA501 analog input modules, feeding real-time process data directly to the PM571-ETH’s scan cycle.

For applications requiring functional safety compliance — such as emergency shutdown (ESD) systems in oil and gas facilities — the PM571-ETH can be paired with ABB AC500-S Safety PLC modules, which handle SIL 2/3 safety loops while sharing the same engineering environment (Automation Builder). Power integrity for the entire rack is maintained by ABB CP502 or CP503 AC500 power supply modules, which deliver regulated 24 V DC with built-in diagnostics and redundancy options for mission-critical installations.

Communication-intensive plants benefit from the PM571-ETH’s native Ethernet port, which can interface directly with ABB CI502-PNIO PROFINET I/O adapter modules for distributed I/O over PROFINET, or with ABB CI504-PNIO for PROFIBUS DP master/slave configurations. In legacy installations where CS31 fieldbus is still in use, the PM571-ETH’s COM ports natively support the ABB CS31 remote I/O bus, allowing seamless integration of existing ABB 07KT98 or 07KT97 remote I/O stations without protocol converters.

For drive control applications, the PM571-ETH can supervise ABB ACS880 or ACS580 variable frequency drives via MODBUS TCP or PROFIBUS, enabling coordinated motor speed and torque management across conveyor systems, pump stations, and compressor trains. Relay output modules such as the ABB DO531 provide hardwired interlock signals to contactors and safety relays, closing the control loop between the PLC and field actuators in a fully integrated, diagnostics-capable architecture.

Application in Critical Infrastructure

The ABB 1SAP150100R0277 PM571-ETH has established a strong operational track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it controls wellhead automation panels, pipeline SCADA RTUs, and compressor station logic — environments where ambient temperatures routinely exceed 50°C and where unplanned downtime carries significant safety and financial consequences. Its conformal-coated PCB and wide thermal tolerance make it a preferred choice for outdoor junction box installations in desert and tropical climates alike.

In mining operations, the PM571-ETH manages conveyor belt sequencing, crusher interlocks, and ventilation fan control in underground environments characterized by coal dust, methane risk, and constant mechanical vibration. Its robust EMI immunity — validated to IEC 61000-4 standards — ensures reliable communication even in the presence of large variable-speed drives and high-current switching equipment operating in close proximity.

Within power generation and transmission facilities, including thermal power plants and hydroelectric stations, the PM571-ETH serves as the local controller for auxiliary systems such as cooling water pumps, lubrication oil circuits, and transformer protection panels. Its Ethernet connectivity enables direct integration with plant DCS systems and energy management platforms via MODBUS TCP, providing operators with real-time diagnostics and remote parameter access.

In water and wastewater treatment plants, the module controls dosing pump sequences, UV disinfection systems, and sludge handling conveyors — applications where continuous 24/7 operation and resistance to high-humidity, chemically aggressive atmospheres are non-negotiable. Metallurgical and steel mill applications leverage the PM571-ETH for rolling mill auxiliary control, ladle transfer car positioning, and furnace atmosphere management, where radiant heat and electromagnetic noise from induction furnaces present extreme challenges to conventional control hardware.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the ABB 1SAP150100R0277?
Every ABB 1SAP150100R0277 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects identified under normal operating conditions. In the event of a confirmed defect, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed within 5 business days of defect confirmation.

Q2: How is each unit tested before shipment?
All units undergo a structured pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional verification, communication port continuity testing, and firmware version confirmation. Units sourced as surplus new are additionally inspected for storage condition compliance. A test report is available upon request for OEM and EPC customers requiring documented traceability.

Q3: Is the 1SAP150100R0277 compatible with existing AC500 installations and ABB Automation Builder software?
Yes. The PM571-ETH is fully compatible with the ABB AC500 hardware ecosystem, including all S500 I/O expansion modules, TB521/TB541 terminal bases, and CI5xx communication adapter modules. It is programmed and configured using ABB Automation Builder (based on IEC 61131-3), ensuring that existing application programs can be transferred to a replacement PM571-ETH without modification to I/O mapping, fieldbus configuration, or HMI tag databases — minimizing commissioning time during emergency replacements.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
TOPNLMS maintains a dedicated inventory of ABB AC500 series components, including the 1SAP150100R0277, to support both planned maintenance schedules and emergency breakdown scenarios. For customers managing large installed bases of AC500 systems, we offer reserved stock arrangements and priority dispatch with same-day or next-business-day shipping for in-stock items. Our technical team can also assist with cross-reference verification to confirm compatibility with your specific system revision and firmware baseline.
