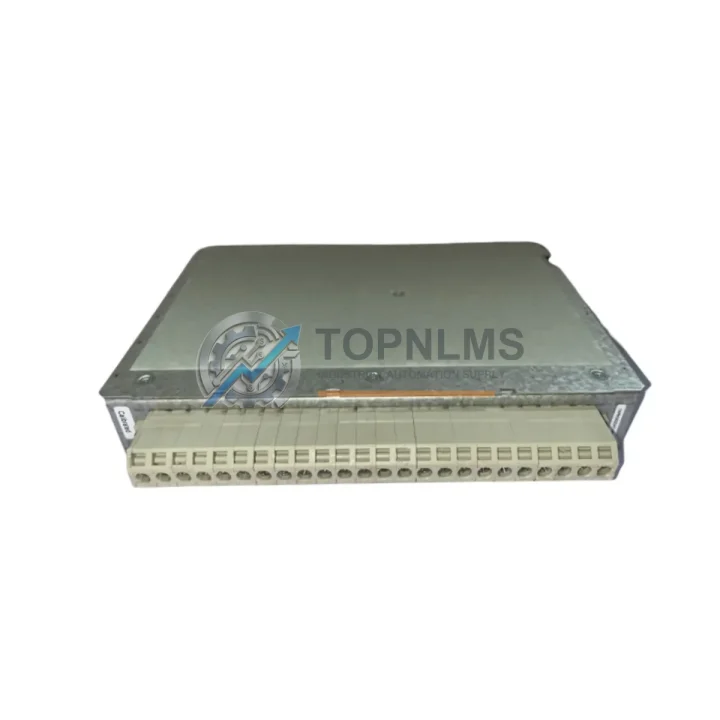

ABB 1MRK002247-ARr01 Replacement for RET Series TRM

Product Overview

ABB 1MRK002247-ARr01 Replacement for RET Series TRM: Seamless Transition from Legacy Transformer Protection Systems

The ABB 1MRK002247-ARr01 is a Transformer Protection Module (TRM) designed for the ABB RET Series Intelligent Electronic Device (IED) platform — one of the most widely deployed transformer protection architectures in power utilities, industrial substations, and heavy manufacturing facilities worldwide. As ABB continues to evolve its protection relay portfolio, many sites operating legacy RET615, RET620, RET630, or earlier RET316 installations are now facing the challenge of sourcing compatible replacement modules to extend system life, reduce downtime, and defer full panel replacement costs.

This listing provides a verified, tested replacement unit for the 1MRK002247-ARr01 TRM module, sourced directly from authorized supply chains and inspected prior to dispatch. Whether your site is executing a like-for-like swap of a failed module, building a critical spare inventory, or undertaking a phased migration from an older protection relay architecture, this module is engineered to slot into your existing RET Series rack without requiring changes to your protection scheme logic, wiring terminations, or SCADA communication configuration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TRM module replacement within the RET Series platform rarely involves the module in isolation. In practice, field engineers and procurement teams managing a transformer protection upgrade or emergency swap will typically assess the broader system context before committing to a single component order.

For sites running a RET615 or RET620 as the primary transformer differential protection IED, the 1MRK002247-ARr01 TRM module interfaces directly with the main CPU module and the binary I/O modules already installed in the chassis. If the chassis backplane or the RET Series I/O module (such as the BIM or BOM binary input/output cards) shows signs of wear or firmware incompatibility, it is advisable to inspect and potentially replace those alongside the TRM to avoid a second outage window. Similarly, the RET Series power supply module — which provides regulated DC to all installed cards — should be verified for output stability before commissioning the replacement TRM.

Communication continuity is another critical consideration. Many substations using the RET platform rely on IEC 61850 station bus communication via fiber-optic or copper Ethernet ports routed through an ABB FOX515 or FOX615 multiplexer, or through a dedicated station automation controller such as the COM600 or COM610. The 1MRK002247-ARr01 TRM module maintains full IEC 61850 Ed.2 GOOSE messaging compatibility, meaning existing logical node configurations and GOOSE subscriptions defined in your PCM600 project file do not need to be rebuilt from scratch — only re-downloaded to the replacement unit.

For sites that are simultaneously upgrading from an older RET316 or SPAJ 140 C electromechanical relay to the RET Series platform, the migration scope expands considerably. In these cases, the wiring from existing CT and VT secondary circuits must be carefully mapped to the new RET Series terminal block layout. Auxiliary components such as signal isolators, interposing relays, and terminal marshalling modules are commonly required to bridge the wiring differences between the old panel and the new IED chassis. Procurement teams should also account for the RET Series programming cable (optical USB interface) required for local parameterization via PCM600 during commissioning.

For HMI integration, sites using an ABB Panel 800 operator interface or a third-party SCADA system via Modbus TCP or DNP3 over serial will find that the 1MRK002247-ARr01 TRM module supports all standard communication drivers without gateway reconfiguration, provided the IED IP address and SCADA tag mapping are preserved from the original installation.

Retrofit Guidance FAQ

Q: Do I need to rewire the CT and VT inputs when replacing the TRM module?
A: No. The 1MRK002247-ARr01 uses the same rear terminal block layout as previous TRM revisions in the RET Series. CT and VT secondary wiring connections remain unchanged. Always de-energize and short-circuit CT secondaries before removing the module per standard protection relay maintenance procedures.

Q: Can I reload my existing PCM600 configuration file to the replacement module?
A: Yes. Existing PCM600 parameter and configuration files are compatible with the ARr01 revision. After physical installation, connect via the optical USB programming cable, open your PCM600 project, and perform a full parameter download. Verify protection settings and functional test all trip outputs before returning the transformer to service.

Q: Will my IEC 61850 GOOSE subscriptions and logical node bindings remain intact?
A: GOOSE subscriptions are stored in the IED configuration (ICD/CID file). After downloading the existing CID file to the replacement unit, all GOOSE publisher/subscriber relationships are restored. No changes to the station bus switch or peer IED configurations are required.

Q: The replacement module is going into a RET630 chassis — is there a firmware compatibility concern?
A: The 1MRK002247-ARr01 TRM module is compatible with RET630 chassis firmware versions currently in active support. If your RET630 is running a firmware version older than the module’s minimum supported version, a firmware upgrade via PCM600 may be required. Contact our technical team with your existing firmware version for pre-shipment confirmation.

Q: How much physical space does the module require in the chassis?
A: The TRM module occupies a single slot in the standard RET Series 19″ rack chassis. No additional mounting hardware or chassis modification is required for a direct slot replacement.

Q: What if I am migrating from a RET316 or older electromechanical relay?
A: A migration from RET316 or older relay technology to the RET Series platform requires a full wiring review, new terminal block mapping, and a fresh PCM600 configuration build. The 1MRK002247-ARr01 TRM module is the correct hardware starting point for this migration. Our team can provide a pre-sales technical consultation to scope the full bill of materials for your retrofit project.

Warranty Assurance

Every 1MRK002247-ARr01 TRM module shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional power-on testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our standard warranty response time is within 3 business days of fault confirmation. We do not require the customer to return the defective unit before dispatching a replacement in cases where downtime risk is documented.

Shipping is handled via DHL Express, FedEx International Priority, or equivalent tracked courier from our Xiamen, China facility. Standard dispatch lead time is 1–3 business days from order confirmation. Expedited same-day dispatch is available for orders placed before 14:00 CST with prior arrangement.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformity, and test report upon request. All export documentation complies with CN customs regulations and destination country import requirements.

For technical pre-sales questions, compatibility verification, or bulk order pricing, contact our engineering sales team directly.
