ABB 1MRK000614-ABr00 Replacement for REC 670 Series: Seamless Transition & Smooth System Migration

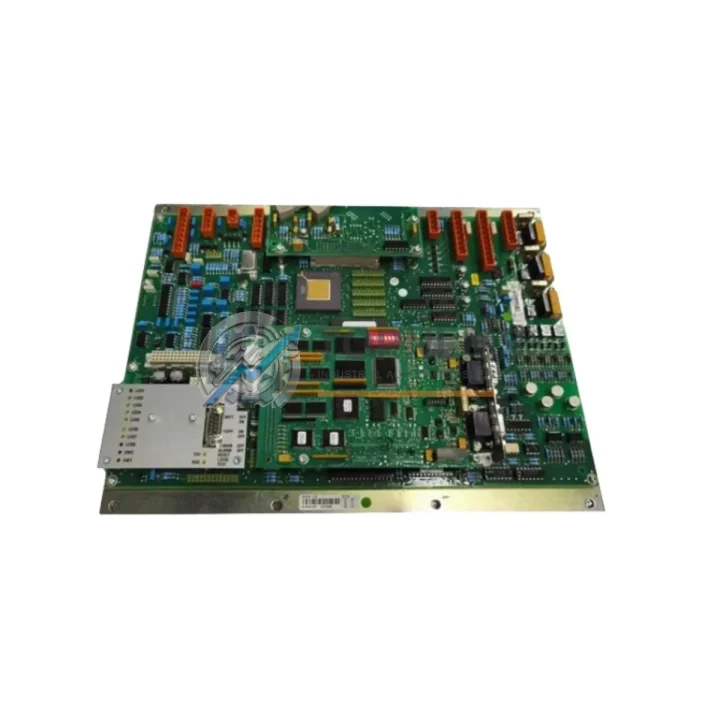

The ABB 1MRK000614-ABr00 is a PCB replacement module designed for the REC 670 series numerical protection relay platform — one of ABB’s most widely deployed protection systems in power transmission and distribution substations worldwide. As the REC 670 platform matures and certain sub-assemblies reach end-of-production status, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full compatibility with existing relay configurations, wiring schemes, and communication architectures.

At TOPNLMS, we stock the 1MRK000614-ABr00 as a ready-to-ship replacement module, fully tested and verified against ABB’s original hardware specifications. Whether you are performing an emergency swap after a board failure, executing a planned preventive maintenance cycle, or upgrading aging relay infrastructure ahead of a substation refurbishment, this module delivers the reliability and compatibility your protection system demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful REC 670 module replacement rarely involves a single component in isolation. In practice, field engineers undertaking a protection relay upgrade or emergency repair will often need to assess the condition of adjacent modules and system components simultaneously. When replacing the 1MRK000614-ABr00 PCB, it is common to inspect and potentially replace the REC 670 power supply module if the original board failure was caused by a power surge or voltage irregularity. Similarly, the REC 670 binary input/output module and associated I/O terminal blocks should be verified for continuity and correct mapping before recommissioning the relay.

For substations running IEC 61850 GOOSE messaging or sampled values, the REC 670 communication module — typically an Ethernet-based card supporting IEC 61850 Edition 1 or Edition 2 — must remain fully operational to preserve inter-relay communication and SCADA integration. If your substation automation system relies on a station bus or process bus architecture, verifying the optical fiber connections and the merging unit interface is equally important during the migration window.

In cases where the REC 670 relay is being migrated from an older REL 670 or RED 670 platform as part of a broader protection system upgrade, the engineering team will also need to account for differences in the PCM 600 configuration database, signal list mapping, and SCADA point assignments. The 1MRK000614-ABr00 supports a clean migration path within the 670 series ecosystem, reducing the need for full relay replacement and allowing the existing relay test switch, current transformer wiring, and voltage transformer secondary circuits to remain intact.

For sites where the control cabinet houses multiple protection functions — including distance protection, differential protection, and busbar protection — the modular architecture of the REC 670 platform means that replacing a single PCB sub-assembly like the 1MRK000614-ABr00 does not require taking the entire protection panel out of service, significantly reducing planned outage duration and minimizing risk to grid stability.

Retrofit Guidance FAQ

Q: Does replacing the 1MRK000614-ABr00 require rewiring the relay terminal blocks?
A: No. The 1MRK000614-ABr00 is a direct PCB-level replacement within the REC 670 chassis. All external wiring to the relay terminal blocks remains unchanged. Only the internal PCB sub-assembly is swapped.

Q: Will my existing PCM 600 configuration file work after the replacement?
A: Yes. The replacement module is fully compatible with existing PCM 600 parameter files. After installation, re-download the configuration from PCM 600 and perform a functional test to verify all protection functions, I/O assignments, and communication settings are correctly restored.

Q: Is IEC 61850 GOOSE communication affected during the replacement?
A: GOOSE messaging will be interrupted during the physical swap. Plan the replacement during a scheduled maintenance window and coordinate with the SCADA/DCS team to suppress alarms and re-enable communication after recommissioning. Protocol compatibility is fully retained post-replacement.

Q: Can this module be used in a REC 670 relay that was originally configured for DNP3 or MODBUS?
A: Yes. The 1MRK000614-ABr00 supports the full range of communication protocols available on the REC 670 platform, including IEC 61850, DNP3, MODBUS, and LON. Protocol selection is managed at the firmware/configuration level and is not affected by the PCB replacement.

Q: What physical space is required for installation?
A: The module fits the standard REC 670 PCB slot with no chassis or panel modification required. Ensure the relay is de-energized and properly isolated before beginning the replacement procedure.

Warranty Assurance

Every ABB 1MRK000614-ABr00 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point inspection process that includes visual examination, functional verification, and packaging integrity checks to ensure the module arrives in field-ready condition.

In the event of a confirmed defect or failure within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your maintenance schedule. Our after-sales response team is reachable via email and phone to assist with technical queries, shipping documentation, and warranty claims.

We ship from Xiamen, China, with international logistics options available to support urgent procurement requirements. Lead times and shipping methods are confirmed at the time of order. Customers are encouraged to contact us directly for volume pricing, expedited shipping arrangements, or technical pre-sales consultation.

Stock availability is updated regularly. We recommend confirming availability before raising a purchase order for time-sensitive maintenance projects.
