ABB 1MRK000508-CDr03 Replacement for MRK Series Relay: Seamless Transition & Legacy System Compatibility

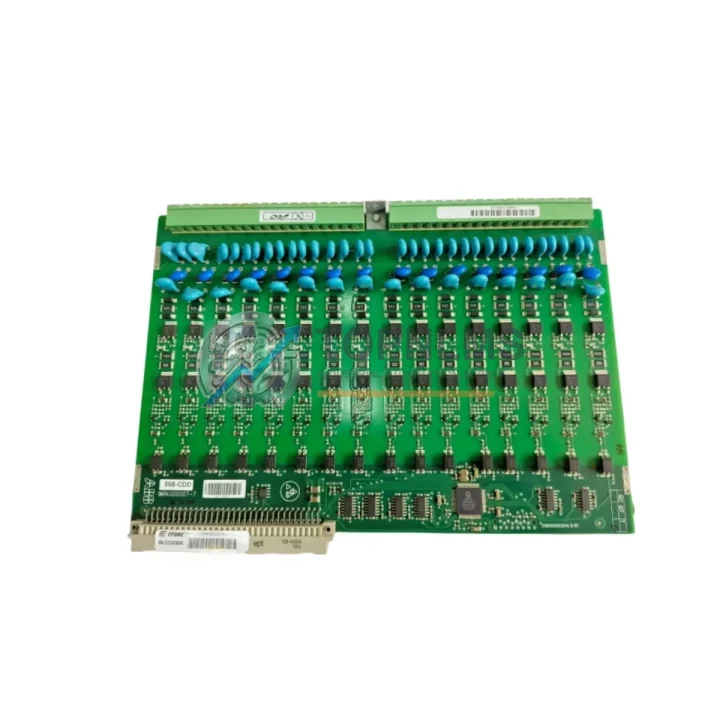

The ABB 1MRK000508-CDr03 (paired board reference 1MRK000007-7) is a PCB-level protection relay module designed for the ABB MRK Series protection relay platform. As aging substation automation systems and legacy protection relay panels reach end-of-service life, this module serves as the authoritative drop-in replacement for field engineers and procurement teams managing protection system upgrades, emergency spares, or scheduled maintenance overhauls.

Whether your existing installation is based on an older ABB SPACOM, SPAJ, SPAD, or early REF/RET series relay that has been superseded by the MRK platform, or you are migrating from a third-party relay such as a Siemens 7SJ or GE Multilin SR series, the 1MRK000508-CDr03 module provides a technically sound, cost-effective path to restore or upgrade protection functionality without requiring a full panel redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful protection relay PCB replacement rarely involves a single component in isolation. During the migration from an older MRK relay revision or a legacy SPACOM-based protection panel, field engineers typically address several interdependent subsystems simultaneously to ensure system integrity and minimize outage windows.

The 1MRK000508-CDr03 module slots directly into the existing MRK relay chassis, meaning the ABB MRK relay housing and its associated terminal block assembly remain in place. However, if the relay chassis itself has suffered mechanical damage or corrosion, a replacement ABB MRK relay base unit should be sourced alongside this PCB module to complete the restoration.

For sites running IEC 60870-5-103 or LON-based SCADA communication, the existing ABB SPA-ZC communication adapter or LON interface module connected to the relay panel can be retained without modification, as the 1MRK000508-CDr03 maintains full backward compatibility with these communication interfaces. Sites that are simultaneously upgrading their substation automation to IEC 61850 may wish to evaluate the ABB REF615 or RET615 series as a longer-term platform migration, while using the 1MRK000508-CDr03 as an interim solution to restore protection coverage immediately.

Power supply integrity is critical during any relay replacement. If the panel’s ABB PSU24 or equivalent 24 V DC auxiliary power supply module shows signs of aging — evidenced by voltage ripple or thermal stress — it is advisable to replace or test it concurrently with the PCB swap to avoid nuisance trips post-commissioning. Similarly, the ABB I/O extension module connected to the relay’s binary input/output terminals should be verified for contact integrity before the new PCB is energized.

For sites using ABB CAP505 or PCM600 relay configuration software, the relay settings file (PSL/parameter file) from the outgoing unit should be exported and archived before removal. The 1MRK000508-CDr03 accepts the same parameter upload procedure, allowing settings to be restored within minutes of physical installation. If the original settings file is unavailable, TOPNLMS technical support can assist with default parameter templates based on the relay’s application type (overcurrent, differential, distance, or earth fault protection).

Where the protection relay is installed in a control cabinet alongside an ABB AC500 PLC or a Modicon M340 controller managing bay-level interlocking logic, the relay’s binary output contacts (trip, alarm, and indication relays) should be re-verified against the PLC’s digital input module wiring schedule after the PCB swap to confirm no contact polarity or timing changes have been introduced by the revision update.

Retrofit Guidance FAQ

Q: Can I swap the 1MRK000508-CDr03 without rewiring the terminal blocks?
A: Yes. The PCB module uses the same edge connector and terminal block interface as the earlier 1MRK000007-7 revision. No rewiring is required for a direct board swap within the same MRK relay chassis.

Q: Will my existing relay settings (protection parameters, trip curves, time delays) be preserved?
A: The settings are stored in the relay’s EEPROM on the PCB. When replacing the PCB, settings must be re-uploaded using ABB CAP505 or PCM600 software. We strongly recommend exporting and archiving the settings file from the outgoing board before removal.

Q: Is the communication protocol (IEC 60870-5-103 / LON) compatible with the replacement board?
A: Yes. The 1MRK000508-CDr03 maintains full backward compatibility with IEC 60870-5-103 and LON communication protocols used in legacy ABB substation automation systems. No changes to the SCADA communication configuration are required.

Q: What is the physical installation space requirement?
A: The module is a PCB plug-in card designed for the standard ABB MRK relay chassis. It occupies the same physical footprint as the original board. No panel cutout modifications or additional DIN rail space are required.

Q: Can this module be used as a spare for multiple relay units of the same series?
A: Yes. The 1MRK000508-CDr03 is a universal PCB replacement for MRK Series relays using the same hardware revision. It is suitable for use as a rotating spare across multiple relay panels of the same type, subject to settings re-upload for each unit.

Q: How long does commissioning take after the PCB swap?
A: For experienced protection engineers with the settings file available, commissioning typically takes 30–90 minutes, including settings upload, functional test of binary inputs/outputs, and communication verification. TOPNLMS provides technical documentation support upon request.

Warranty Assurance

Every ABB 1MRK000508-CDr03 module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level quality. Units that do not meet our inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our after-sales response target is 24 hours for warranty inquiries. Replacement units are dispatched from our Xiamen warehouse, with DHL Express, FedEx, or UPS options available for urgent requirements.

For procurement teams managing critical infrastructure spares, TOPNLMS can provide a Certificate of Conformance (CoC) and packing list documentation upon request. Bulk orders for multiple units are supported, with lead times confirmed at the time of order placement.

We stock both new and tested-used units of the 1MRK000508-CDr03. All tested-used units are clearly identified in the product listing and carry the same 12-month warranty as new units. Inventory availability is updated regularly — contact us to confirm current stock before placing a time-critical order.
