ABB 1MRK000161-AA Replacement Solution for REC Series: Seamless Transition from Legacy Protection Relay Systems

When your existing ABB REC protection relay infrastructure reaches end-of-life or a critical component such as the 1MRK000161-AA Signal Conversion Module becomes unavailable through standard supply channels, the pressure to restore system integrity without extended downtime is immense. This page is designed to guide engineers, procurement teams, and system integrators through a structured, low-risk migration path — covering wiring compatibility, communication protocol continuity, physical installation constraints, and commissioning best practices for the ABB 1MRK000161-AA and its surrounding system architecture.

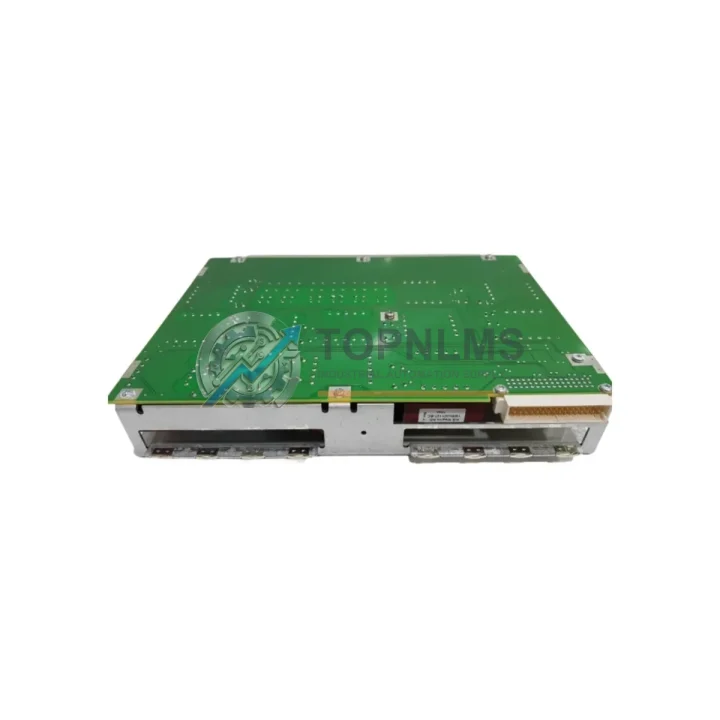

The ABB 1MRK000161-AA is a signal conversion module engineered for use within the REC series of numerical protection relays. It performs the critical function of converting analog or binary input signals into formats compatible with the relay’s internal processing bus, enabling accurate fault detection, protection tripping, and event logging across substation automation and industrial power distribution environments. Its role within the REC platform makes it a load-bearing component — failure or unavailability directly impacts protection coverage and system availability.

Whether you are replacing a failed unit, building a spare parts inventory, or executing a planned upgrade from an older REC variant to a current-generation protection relay platform, the 1MRK000161-AA sourced through TOPNLMS is tested, verified, and shipped with a 12-month warranty from our Xiamen facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy REC-based protection relay system to a modernized architecture rarely involves a single component. In practice, the replacement of the ABB 1MRK000161-AA is often part of a broader retrofit that touches multiple layers of the protection and control system. Based on common field upgrade scenarios, the following components are frequently required alongside this signal conversion module.

In substation environments where the REC relay communicates upstream via IEC 61850, engineers often need to update or replace the ABB REC670 communication interface module or its associated LDCM (Local Data Communication Module) to ensure protocol continuity after the signal conversion layer is refreshed. Similarly, when the existing ABB SRIO 8 binary input/output module is approaching end-of-life, it is common practice to replace it in the same maintenance window as the 1MRK000161-AA to avoid a second outage cycle.

For sites transitioning from older LON-based communication to IEC 61850 GOOSE messaging, the addition of an ABB SPA-ZC 400 protocol converter or equivalent gateway module is a standard engineering recommendation. This converter bridges the legacy SPA bus used in older REC and REF series relays with modern Ethernet-based substation automation networks, preserving existing wiring infrastructure while enabling SCADA integration.

Power supply integrity is another critical consideration. Many legacy REC panels rely on a 24 VDC auxiliary power supply module that may be undersized for expanded I/O configurations. When adding or replacing signal conversion modules, it is advisable to audit the panel’s power budget and, where necessary, install a supplementary ABB CP-E 24/2.5 or equivalent DIN-rail power supply to maintain stable auxiliary voltage across all relay modules.

Terminal block management is equally important during a retrofit. The use of Phoenix Contact or Weidmüller feed-through terminal blocks compatible with the existing REC panel wiring gauge ensures that the replacement module’s signal inputs are correctly landed without introducing contact resistance or insulation faults. In high-density panels, signal isolators — such as the ABB AI523 analog input isolator — are sometimes inserted between field wiring and the new signal conversion module to protect against ground loops and transient interference.

For sites that require HMI-level visibility during and after the upgrade, the ABB CP600 series operator panel or a compatible third-party HMI configured for IEC 61850 or Modbus TCP provides real-time status monitoring without requiring changes to the protection relay’s core configuration. Finally, where the existing REC relay rack or backplane shows signs of connector wear or corrosion, proactive replacement of the chassis backplane — available as a matched spare — eliminates a common root cause of intermittent signal conversion faults.

Retrofit Guidance FAQ

Q: Can I replace the 1MRK000161-AA without rewiring the terminal block?
A: Yes. The 1MRK000161-AA is designed as a direct slot replacement within the REC series chassis. Terminal block wiring — both signal inputs and binary outputs — is retained without modification in the vast majority of installations. Verify terminal numbering against the existing relay wiring diagram before energizing.

Q: Will the replacement module require firmware reconfiguration?
A: In most cases, no. The 1MRK000161-AA inherits the relay’s existing parameter set stored in the REC relay’s non-volatile memory. However, if the replacement is part of a broader platform upgrade (e.g., from REC101 to REC670), a full parameter download via the ABB PCM600 engineering tool will be required.

Q: Is the module compatible with IEC 61850 and legacy SPA/LON protocols?
A: The 1MRK000161-AA operates at the signal conversion layer and is protocol-agnostic at the module level. Communication protocol compatibility is governed by the REC relay’s communication interface module. The signal conversion module itself does not require protocol reconfiguration when swapping between IEC 60870-5-103 and IEC 61850 environments, provided the relay’s communication module is correctly configured.

Q: What are the physical space requirements for installation?
A: The 1MRK000161-AA occupies a standard REC series module slot. No panel cutout modification, additional DIN rail space, or cable duct rerouting is required. The module’s form factor is identical to the unit it replaces, making it suitable for installations where panel space is constrained.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, perform a functional test using the ABB FREJA relay test set or equivalent protection relay test equipment. Verify analog input scaling, binary input/output response, and event logging via the relay’s local HMI or PCM600 engineering tool. Confirm that all protection functions are active and that no hardware fault LEDs are illuminated on the relay front panel.

Q: What if the replacement module does not resolve the fault?
A: Contact TOPNLMS technical support at [email protected]. Our team will assist with fault diagnosis and, if the module is confirmed defective within the warranty period, arrange a replacement shipment at no additional cost.

Warranty Assurance

Every ABB 1MRK000161-AA Signal Conversion Module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional bench testing where applicable. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a structured response process: submit your claim via email to [email protected] with your order reference, a description of the fault, and photographic evidence of the defect. Our technical team will assess the claim within 2 business days and, upon confirmation, dispatch a replacement unit. Return shipping of the defective module is coordinated by TOPNLMS for warranty cases.

For procurement teams managing critical spare parts inventories, TOPNLMS offers batch inspection reports and serialized shipping documentation upon request. Lead times for standard stock items are typically 3–7 business days from order confirmation to dispatch from our Xiamen warehouse. Express shipping options are available for emergency breakdown scenarios.

We understand that unplanned downtime in protection relay systems carries significant operational and safety consequences. Our procurement assurance framework — combining pre-shipment testing, documented warranty coverage, and responsive after-sales support — is designed to give engineering and maintenance teams the confidence to source critical replacement components without compromising system reliability.
