ABB 1KHL016009R0001 G4AK Ruggedized Excitation Control Module

Product Overview

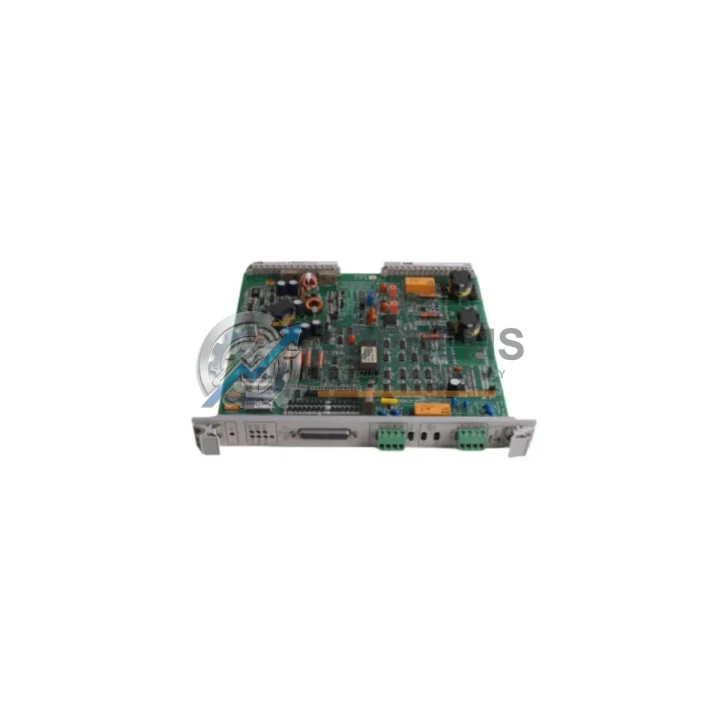

ABB 1KHL016009R0001 G4AK Ruggedized Excitation Control Module: Industrial Resilience for Harsh Environments

The ABB 1KHL016009R0001 G4AK is a precision-engineered excitation control board designed for the UNITROL 1000 Automatic Voltage Regulator (AVR) platform. Built to ABB’s exacting Swiss engineering standards, this module delivers stable, interference-resistant generator excitation control in the most demanding industrial environments — from high-temperature turbine halls and high-humidity coastal power stations to dust-laden mining sites and vibration-intensive heavy manufacturing floors.

In continuous production environments where generator voltage instability can cascade into costly shutdowns, the 1KHL016009R0001 G4AK provides the closed-loop excitation regulation that keeps rotating machinery operating within safe voltage bands. Its robust PCB construction, conformal coating, and EMI-hardened signal paths make it a trusted replacement and spare part for power generation and industrial drive systems worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1KHL016009R0001 G4AK does not operate in isolation — it is the excitation intelligence at the heart of a broader generator protection and control architecture. In a typical power generation control cabinet, this board works in concert with the ABB UNITROL 1000 main controller board and the UNITROL 1010 field current regulator to maintain precise terminal voltage under varying load conditions. Upstream, the ABB ACS800 series drive or ACS880 industrial drive may govern motor-side power quality, while the ABB REG216 generator protection relay provides overcurrent, overvoltage, and loss-of-excitation protection that complements the AVR’s voltage regulation loop.

Within the same control cabinet, the ABB S800 I/O module handles digital and analog signal marshalling between the excitation board and the plant DCS, while ABB CI854 PROFIBUS communication modules ensure that excitation status data is transmitted reliably to the supervisory control layer — even in environments with significant electromagnetic interference from large rotating machines or high-voltage switchgear. Terminal blocks such as the ABB ENTRELEC SNK series provide the secure field wiring termination points that keep signal integrity intact across temperature cycles and vibration events.

For facilities running ABB’s System 800xA DCS, the UNITROL 1000 AVR integrates natively via the ABB AC800M controller platform, enabling centralized excitation monitoring, alarm management, and remote parameter adjustment without requiring additional engineering gateways. Safety-critical installations may also incorporate the ABB Tmax XT series molded-case circuit breaker on the excitation power supply rail to provide short-circuit and overload protection for the AVR board itself — a critical safeguard in unattended substations and remote power stations.

Application in Critical Infrastructure

The ABB 1KHL016009R0001 G4AK excitation control board is deployed across the full spectrum of heavy industry and critical infrastructure where generator reliability is non-negotiable.

In oil and gas facilities — including offshore platforms, onshore compression stations, and LNG terminals — the UNITROL 1000 AVR maintains generator terminal voltage stability during sudden load swings caused by large compressor motor starts, preventing voltage dips that could trip safety instrumented systems (SIS) or interrupt continuous process operations. The board’s conformal coating and sealed connector interfaces resist the corrosive salt-laden atmospheres common in coastal and offshore installations.

In mining and mineral processing operations, where high-dust environments and continuous 24/7 production cycles place extreme demands on electrical equipment, the 1KHL016009R0001 G4AK’s robust PCB design and wide operating temperature range ensure that excitation control remains stable even as ambient temperatures fluctuate between cold morning startups and heat-saturated afternoon production peaks. Replacement of a failed excitation board with a pre-tested 1KHL016009R0001 G4AK can restore generator output within hours, avoiding the multi-day delays associated with OEM repair cycles.

In thermal and hydroelectric power plants, the UNITROL 1000 platform governs the reactive power output of synchronous generators connected to the grid. The G4AK excitation board’s precise voltage regulation capability supports power factor correction and reactive power dispatch — functions that are increasingly critical as grid operators impose tighter voltage stability requirements on embedded generators. Water treatment facilities, steel mills, cement plants, and petrochemical refineries similarly rely on this module to keep standby and prime-power generators ready for immediate load pickup during grid disturbances.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 1KHL016009R0001 G4AK?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the board fails to perform its excitation control function within the warranty period, we will provide a replacement unit or full refund. The warranty period begins from the date of shipment and applies to both new and certified-refurbished units.

Q2: How is each unit tested before shipment?
Every 1KHL016009R0001 G4AK board undergoes functional bench testing prior to dispatch. Testing includes power-on verification, signal path continuity checks, and where applicable, comparison against known-good reference units. Units that do not meet functional acceptance criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is this board compatible with all UNITROL 1000 AVR configurations?
The 1KHL016009R0001 G4AK is designed for the ABB UNITROL 1000 platform. Compatibility with specific UNITROL 1000 hardware revisions and UNITROL 1010 variants should be confirmed against the ABB UNITROL 1000 hardware manual (document 3BHS102402). We recommend providing your existing board’s full part number and hardware revision when placing an order so our technical team can confirm cross-compatibility before shipment.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains ongoing stock of ABB UNITROL series spare parts to support planned maintenance programs, annual outage spares kits, and emergency breakdown supply. We can provide framework pricing for multi-unit orders and priority allocation for customers with critical infrastructure maintenance contracts. Contact our team at [email protected] or +86 18359293191 to discuss your long-term supply requirements.
