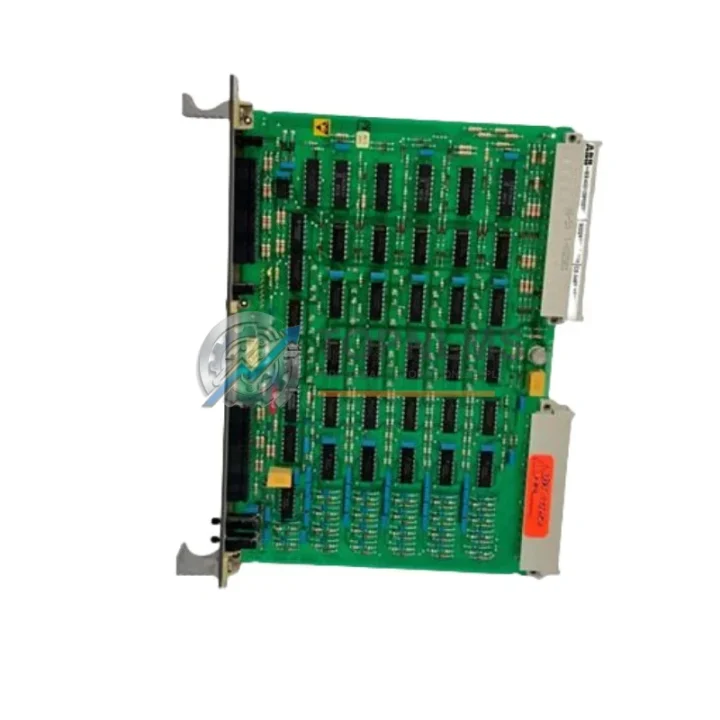

ABB 1KHL015502R0004 Replacement for AC500 I/O Coupler

Product Overview

ABB 1KHL015502R0004 Replacement for AC500 I/O Coupler: Seamless Migration & Upgrade Solution

The ABB 1KHL015502R0004 (N4BDTEBIT) is a high-performance I/O Coupler Module within the ABB AC500 PLC platform — one of the most widely deployed modular programmable logic controller families in industrial automation. As legacy control systems age and original equipment manufacturers discontinue older I/O bus architectures, plant engineers and system integrators increasingly require a reliable, specification-matched replacement that preserves existing wiring infrastructure, communication topology, and control logic without triggering a full-system overhaul.

This module serves as a direct upgrade path for facilities running earlier-generation ABB AC500 I/O expansion racks, particularly those originally configured with discontinued coupler variants or aging fieldbus interface cards. The N4BDTEBIT designation identifies this unit as a PROFIBUS DP-compatible coupler, enabling it to bridge the AC500 CPU backplane with distributed I/O stations across PROFIBUS DP networks — a protocol still prevalent in process industries, water treatment, power generation, and manufacturing automation worldwide.

When migrating from an older ABB AC500 system — for example, one originally built around the PM571, PM581, or PM591 CPU modules — the 1KHL015502R0004 coupler integrates directly into the existing S500 I/O rail system. Engineers replacing a failed or end-of-life coupler can retain their existing DC532 digital input modules, DC522 digital output modules, and AX522 analog I/O modules without rewiring terminal blocks or modifying field cable routing. The coupler’s standard DIN-rail mounting footprint and S500 bus connector are mechanically compatible with existing control cabinet layouts, minimizing physical retrofit time.

From a communication standpoint, the PROFIBUS DP interface on the 1KHL015502R0004 supports GSD file-based configuration, allowing the replacement module to be recognized by existing PROFIBUS masters — including third-party DCS platforms such as ABB System 800xA, Siemens SIMATIC S7, or Honeywell Experion — without modifying the master’s hardware configuration database. Engineers simply update the GSD file reference if required and re-download the network configuration. This dramatically reduces commissioning time compared to migrating to an entirely different fieldbus protocol such as PROFINET or EtherNet/IP.

For facilities transitioning from older PROFIBUS coupler generations, the upgrade process typically involves: (1) powering down the I/O station, (2) removing the legacy coupler from the S500 rail, (3) inserting the 1KHL015502R0004 into the same slot position, (4) verifying the PROFIBUS address DIP switch setting matches the original node address, and (5) restoring power and confirming diagnostic LEDs indicate healthy bus communication. No changes to the PLC application program running on the AC500 CPU are required in most standard replacement scenarios, as the I/O mapping remains identical.

Power supply compatibility is another critical consideration during migration. The 1KHL015502R0004 draws its logic supply from the S500 I/O bus, which is typically fed by an TA521 or TA526 power supply terminal module already installed in the existing rack. No additional 24 VDC field power wiring modifications are required for the coupler itself, though engineers should verify that the existing power supply module’s current budget accommodates the full I/O station load after replacement.

In multi-rack or distributed I/O architectures, this coupler is commonly deployed alongside TU515 or TU516 terminal units, which provide the physical screw-terminal or spring-clamp field wiring interface. These terminal units remain in place during coupler replacement, preserving all field wiring connections and eliminating the need to re-terminate hundreds of signal cables — a significant advantage in time-critical maintenance windows or planned shutdown scenarios.

For system integrators managing a broader AC500 platform migration — for example, upgrading a legacy AC500 V1 system to AC500 V2 or V3 architecture — the 1KHL015502R0004 coupler is compatible with the updated S500-eCo and S500 I/O module generations, providing a forward-compatible foundation. This allows a phased migration strategy where the coupler and I/O modules are upgraded first, followed by a CPU upgrade to a PM5630 or PM5650 in a subsequent maintenance cycle, without requiring simultaneous replacement of all components.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC500 I/O coupler migration rarely involves a single component. In practice, plant engineers replacing the 1KHL015502R0004 often simultaneously audit adjacent modules to preempt future failures. The DC532 digital input module and DC522 digital output module are the most common S500 I/O modules found in the same rack, and stocking these alongside the coupler ensures a complete spare-parts kit for the I/O station. Where analog process signals are involved, the AX522 analog I/O module or AI523 analog input module may also require replacement or recalibration during the same maintenance window.

The TA521 power supply terminal module is a frequently overlooked component during coupler replacements — yet a degraded power supply is often the root cause of intermittent coupler communication faults. Replacing or verifying the TA521 alongside the 1KHL015502R0004 eliminates this variable. Similarly, the TU515 terminal unit provides the physical field wiring interface and should be inspected for terminal wear or corrosion during any coupler swap.

For facilities that also need to upgrade the PROFIBUS network infrastructure, a PROFIBUS DP repeater or bus termination resistor set may be required to maintain signal integrity after adding or replacing nodes. In larger distributed architectures, a PROFIBUS diagnostic tool or bus monitor is invaluable for verifying network health before and after the coupler replacement. Finally, where the AC500 CPU itself is being upgraded as part of a broader modernization project, the PM5630 CPU module provides a natural next-generation platform that retains full backward compatibility with the S500 I/O system and the 1KHL015502R0004 coupler.

Retrofit Guidance FAQ

Q: Can I replace the 1KHL015502R0004 without modifying my PLC program?
A: In standard replacement scenarios — where the PROFIBUS node address and I/O configuration remain unchanged — no PLC program modification is required. The CPU continues to address the I/O station at the same PROFIBUS address, and the I/O mapping in the application program remains valid.

Q: Do I need to rewire field cables when replacing the coupler?
A: No. Field wiring connects to the TU515 or TU516 terminal units, which remain in place. Only the coupler module itself is swapped. This is one of the key advantages of the S500 modular architecture.

Q: Is the PROFIBUS DP address configurable on the replacement module?
A: Yes. The PROFIBUS node address is set via DIP switches on the coupler. Set the address to match the original module’s address before powering up the station to ensure the PROFIBUS master recognizes the replacement without reconfiguration.

Q: What if my PROFIBUS master is a third-party DCS (e.g., Siemens S7 or ABB 800xA)?
A: The 1KHL015502R0004 uses a standard GSD file for PROFIBUS DP configuration. If the GSD file version differs from the original, import the updated GSD into the master’s engineering tool and re-download the network configuration. No hardware changes to the master are required.

Q: How much physical space does the replacement module require?
A: The 1KHL015502R0004 has the same S500 standard slot width as previous coupler generations. No control cabinet modifications or rail extensions are needed.

Q: What diagnostic indicators confirm successful installation?
A: After power-up, the module’s RUN LED should be solid green, and the BF (Bus Fault) LED should be off. If the BF LED is active, verify the PROFIBUS address setting and cable termination at both ends of the PROFIBUS segment.

Warranty Assurance

Every ABB 1KHL015502R0004 (N4BDTEBIT) supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification to confirm communication interface integrity and module identification. In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize your system downtime.

Our inventory is sourced from authorized distribution channels and verified supplier networks, with full traceability documentation available upon request. Units are packaged in anti-static protective packaging with original manufacturer labeling preserved. Standard lead time from our Xiamen warehouse is 3–7 business days for international shipments, with expedited options available for urgent plant maintenance requirements.
