ABB 1KHL015107R1 P4LR Replacement Solution for UNITROL

Product Overview

ABB 1KHL015107R1 P4LR Replacement Solution for UNITROL: Seamless Transition & Legacy System Compatibility

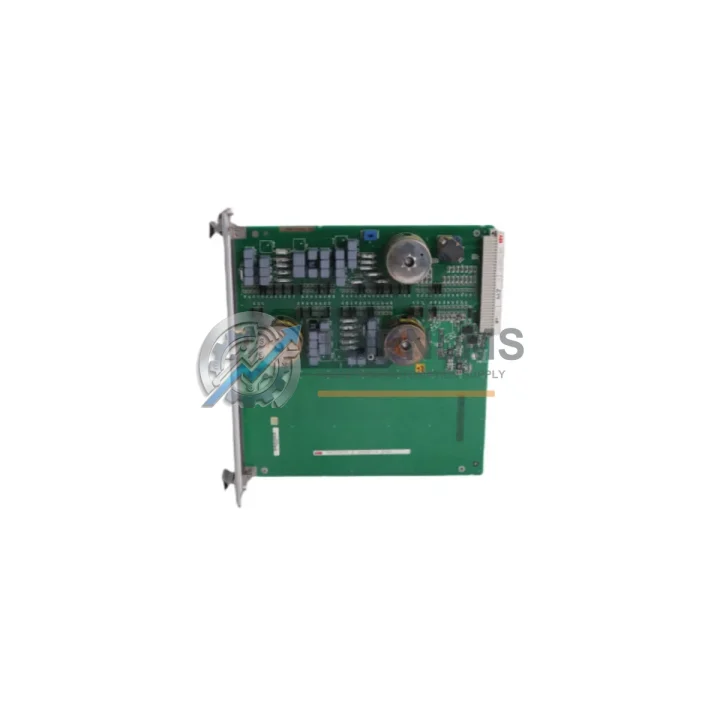

The ABB 1KHL015107R1 P4LR is a precision Pulse Amplifier Module engineered for ABB’s UNITROL excitation control platform. As legacy UNITROL 5000 and UNITROL 6000 installations age into end-of-life cycles, plant engineers and procurement teams face mounting pressure to source verified replacement modules that preserve existing wiring harnesses, rack geometry, and firmware compatibility — without triggering a full system overhaul. The 1KHL015107R1 P4LR addresses this challenge directly: it slots into the original backplane position, retains the same terminal assignment as its predecessor, and communicates over the same internal bus architecture used across the UNITROL excitation family.

Whether you are replacing a failed unit on an emergency basis or executing a planned preventive maintenance swap during a scheduled outage window, the P4LR module is stocked and ready for immediate dispatch from our Xiamen warehouse. Each unit undergoes pre-shipment functional verification before leaving our facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UNITROL excitation system migration rarely involves a single module in isolation. In practice, the 1KHL015107R1 P4LR replacement is most often executed alongside a broader set of component reviews. During the retrofit process, engineers typically inspect and — where necessary — simultaneously replace the ABB UNITROL 6000 Automatic Voltage Regulator (AVR) controller board, which governs the overall excitation loop and must remain firmware-aligned with the P4LR pulse amplifier stage. The UNITROL thyristor firing board and associated gate drive interface module are also common co-replacement items, since pulse timing integrity depends on the coordinated operation of all three components.

On the field wiring side, technicians frequently audit the UNITROL terminal expansion module and signal isolation barrier assemblies to confirm that analog feedback signals — particularly generator voltage and current transformer inputs — remain within the module’s input range after the swap. Where the existing UNITROL power supply module (24 VDC auxiliary) shows signs of capacitor aging or output ripple, a concurrent power supply replacement is strongly recommended to prevent nuisance trips post-commissioning.

For sites running parallel communication to a DCS or SCADA layer, the UNITROL Profibus DP communication module or Modbus RTU interface card should be verified for firmware compatibility with the replacement P4LR. In multi-exciter configurations — common in large hydro or thermal generating units — the UNITROL redundancy switchover module and cross-channel synchronization board must also be tested after the pulse amplifier replacement to confirm that automatic changeover logic remains intact. Finally, where the control cabinet houses an ABB Panel Builder HMI terminal for local operator interface, the display firmware version should be cross-checked against the updated excitation module set to avoid alarm mapping discrepancies.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when installing the 1KHL015107R1 P4LR?
No. The P4LR module retains the same terminal block layout and pin assignment as the outgoing P4 revision. Existing field wiring harnesses connect directly without modification. Always de-energize the excitation circuit and follow your site’s lockout/tagout procedure before removing or inserting any module.

Q: Is the P4LR compatible with both UNITROL 5000 and UNITROL 6000 platforms?
Yes. The 1KHL015107R1 P4LR is designed for use across the UNITROL 5000 and UNITROL 6000 excitation families, and is also applicable in UNITROL 1000 configurations where the pulse amplifier function is implemented as a discrete plug-in card. Confirm your specific rack revision with your ABB system documentation before installation.

Q: Can I transfer existing excitation parameters to the replacement module?
Yes. Parameter migration is performed using the ABB CMT (Commissioning and Maintenance Tool) or the UNITROL-specific toolset. Export the parameter file from the outgoing module (if still functional) or retrieve it from your site’s backup archive, then upload to the P4LR after installation. No re-tuning of the AVR loop should be required if the parameter set is intact.

Q: What communication protocols does the P4LR support for DCS integration?
The P4LR pulse amplifier itself operates on the internal UNITROL backplane bus. External DCS or SCADA communication (Profibus DP, Modbus RTU, IEC 61850) is handled by the dedicated communication interface module within the UNITROL rack — not by the P4LR directly. Replacing the P4LR does not affect the external communication configuration.

Q: How much physical space does the replacement module require in the control cabinet?
The 1KHL015107R1 P4LR occupies a single standard UNITROL card-frame slot — identical to the outgoing module. No panel cutout modification, additional DIN rail space, or cabinet re-layout is required.

Q: What is the recommended procedure for commissioning after replacement?
After physical installation and parameter upload: (1) perform a no-load excitation test at reduced field voltage to verify pulse timing; (2) confirm AVR voltage regulation response with a step reference change; (3) check thyristor firing symmetry on all phases using an oscilloscope or the UNITROL diagnostic tool; (4) restore normal operation and monitor for the first 30 minutes of loaded operation. Document the replacement in your site maintenance log.

Warranty Assurance

Every ABB 1KHL015107R1 P4LR Pulse Amplifier Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes functional power-on verification, visual inspection for physical damage, and confirmation of module identification markings against the order specification. Units that fail to meet our outgoing quality standard are quarantined and not dispatched.

In the event of a warranty claim, our after-sales team responds within one business day. Defective units are eligible for direct replacement dispatch — we ship the replacement before requiring return of the failed unit for established accounts, minimizing your site downtime. All warranty claims are processed through [email protected] with your order reference and a brief fault description.

For procurement teams managing planned maintenance schedules, we offer reserved stock allocation on request — ensuring that your critical spare is held and not sold to other buyers during your maintenance window. Lead time for standard orders is 3–7 business days for international express delivery. Emergency same-day dispatch is available for in-stock units upon confirmed payment before 14:00 CST.

We accept T/T bank transfer, PayPal, and trade finance arrangements for qualified buyers. A proforma invoice and packing list are issued with every order. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard for cross-border shipments.
