ABB 086384-001 Gate Drive Board Replacement for ACS/DCS

Product Overview

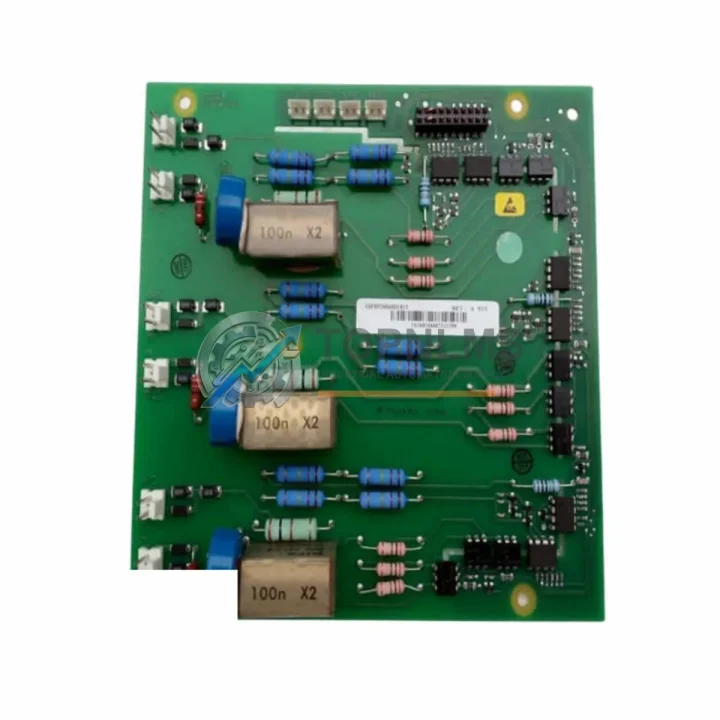

ABB 086384-001 Gate Drive Board: Smooth Transition Replacement for ACS/DCS Series Drives

The ABB 086384-001 is an IGBT Interface Gate Drive Board designed for ABB’s ACS and DCS series variable frequency and DC drive platforms. As legacy drive systems age and original boards become increasingly difficult to source, the 086384-001 serves as a verified drop-in replacement that allows maintenance engineers to restore full drive functionality without redesigning the control architecture or replacing the entire drive cabinet. Whether you are maintaining an ACS600, ACS800, DCS400, or DCS500 series installation, this board provides the gate signal conditioning, IGBT firing control, and fault feedback functions required for uninterrupted operation.

Industrial facilities running continuous production lines — including paper mills, steel rolling plants, water treatment stations, and chemical processing units — cannot afford extended downtime caused by a failed gate drive board. The 086384-001 is stocked and dispatched from our Xiamen warehouse, with same-day or next-business-day shipping available for in-stock units. Each board undergoes functional testing prior to dispatch, and is covered by a 12-month replacement warranty from the date of invoice.

Compatibility Comparison Table

Seamless Upgrade Solutions

A gate drive board replacement rarely occurs in isolation. When the 086384-001 fails, it is common for maintenance teams to simultaneously inspect or replace adjacent components within the same drive cabinet to prevent repeat failures and reduce future downtime risk. In ACS800 and ACS600 installations, the AINT-02C or AINT-14C auxiliary interface boards are frequently evaluated alongside the gate drive board, as they share the same internal communication bus and are subject to similar thermal stress cycles. For DCS500 series DC drives, the SDCS-CON-4 control board and SDCS-POW-4 power supply board are the most common companion replacements, since a gate drive fault on the 086384-001 can sometimes be traced back to upstream power supply instability rather than the gate board itself.

Engineers performing a full drive audit during the same maintenance window often address the IOEC-04 or IOEC-07 I/O extension modules, which handle analog and digital signal routing between the drive and the plant control system. If the facility uses Profibus DP or DDCS fiber-optic communication for drive-to-PLC integration, the RDCO-03 or RDCO-04 communication option modules should be inspected for signal integrity issues that may have contributed to the gate drive fault. In installations where the drive interfaces with an ABB AC500 or AC800M PLC controller, verifying the integrity of the fieldbus connection between the drive and the controller is a recommended step before commissioning the replacement board.

For facilities upgrading from older ACS400 or ACS300 series drives to the ACS800 platform, the 086384-001 gate drive board is part of the core power electronics stack that enables the new drive to handle higher switching frequencies and improved motor control algorithms. During such migrations, the RMIO-11C or RMIO-12C motor control boards, the APBU-44C pulse encoder interface, and the drive’s main power supply module are typically reviewed as part of the upgrade bill of materials. Ensuring that the gate drive board, control board, and power supply are all sourced from verified stock minimizes the risk of compatibility issues during commissioning.

Retrofit Guidance FAQ

Q: Can I replace the 086384-001 without modifying the drive’s parameter settings?
A: Yes. The 086384-001 is a hardware-level gate drive board. It does not store drive parameters. After physical replacement, no parameter download or re-commissioning of drive settings is required. The drive’s control board retains all application parameters independently.

Q: Is the wiring harness and connector layout identical to the original board?
A: Yes. The replacement board uses the same PCB footprint and connector positions as the OEM 086384-001. All ribbon cables, power connectors, and fiber-optic links (where applicable) connect directly without adapter cables or wiring modifications.

Q: Will this board work with both ACS and DCS series drives?
A: The 086384-001 is used across multiple ABB drive platforms including ACS600, ACS800, DCS400, and DCS500 series. Please confirm your drive’s exact model number and hardware revision before ordering to ensure full compatibility with your specific drive variant.

Q: What communication protocols are supported?
A: The gate drive board operates on ABB’s internal IGBT gate signal bus and does not directly handle fieldbus protocols such as Profibus, Modbus, or DDCS. Fieldbus communication is managed by the drive’s option communication modules. Replacing the 086384-001 does not affect fieldbus configuration.

Q: How much physical space is required for installation?
A: The replacement board occupies the same slot dimensions as the original OEM board. No cabinet modifications, additional DIN rail space, or bracket changes are required. The swap can typically be completed within a standard planned maintenance window.

Q: What should I check before replacing the gate drive board?
A: Before replacing the 086384-001, verify that the IGBT module itself is not damaged, as a shorted IGBT can destroy a new gate drive board within seconds of power-up. Also inspect the drive’s DC bus capacitors and the power supply board for signs of overvoltage or ripple that may have caused the original failure.

Warranty Assurance

Every ABB 086384-001 Gate Drive Board shipped by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of invoice. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level quality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, our technical support team responds within one business day. Verified warranty cases are resolved by replacement unit dispatch — we do not require the customer to wait for repair turnaround on a critical spare part. Replacement units are shipped from our Xiamen stock with priority handling.

For procurement teams managing approved vendor lists or requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export documentation for international shipments is prepared in compliance with Chinese customs regulations, with HS code classification and country of origin certification available on request.

Bulk orders and standing purchase agreements for maintenance contractors and MRO distributors are supported. Contact our sales team to discuss volume pricing, consignment stock arrangements, and lead time commitments for critical spare parts programs.
