ABB 086364-001 Replacement/Upgrade Solution for Advant

Product Overview

ABB 086364-001 Replacement/Upgrade Solution for Advant: Seamless Transition from Legacy DCS I/O

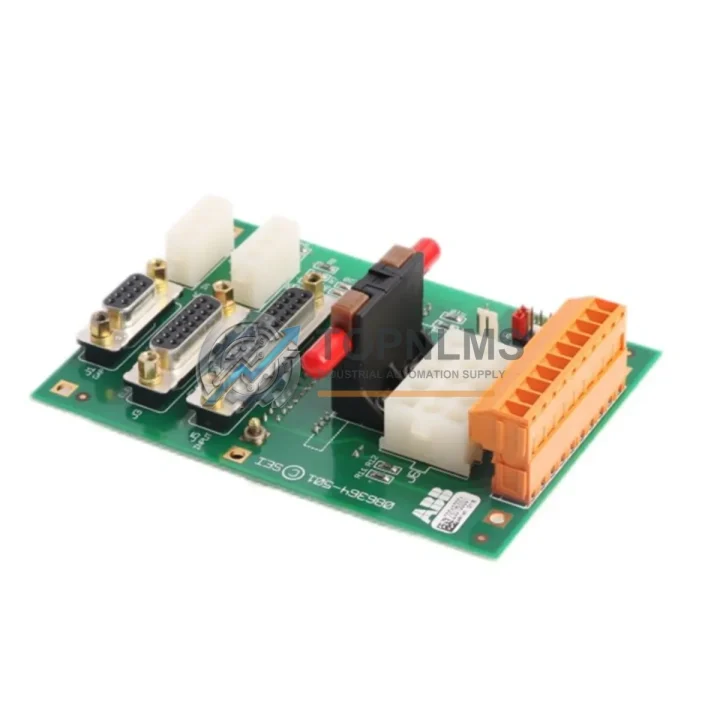

The ABB 086364-001 is a Digital Input Module designed for the ABB Advant Controller series — one of the most widely deployed Distributed Control System (DCS) platforms in process automation, power generation, and heavy industry. As ABB has progressively phased out Advant-series hardware in favour of the System 800xA and AC500 platforms, many facilities operating legacy Advant OCS, Advant Controller 110 (AC110), AC160, or AC450 systems face an urgent need for verified replacement modules that maintain wiring compatibility, signal integrity, and communication continuity without requiring a full system overhaul.

TOPNLMS supplies the ABB 086364-001 Digital Input Module as a direct drop-in replacement for installed Advant DCS cabinets. Each unit is sourced from verified industrial channels, pre-shipment tested, and backed by a 12-month warranty — giving procurement engineers and plant maintenance teams the confidence to order without extended lead times or costly system redesigns.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the ABB 086364-001 in an operating Advant DCS environment rarely involves a single module in isolation. A successful migration or emergency replacement typically requires coordinating several interdependent components across the same control cabinet or I/O subrack. During the upgrade process, engineers commonly work alongside the DSBC 172 and DSBC 176 cable assemblies that connect the I/O subrack to the field terminal boards — these cables carry the 24 VDC digital signals from field devices directly to the module’s input channels and must be verified for continuity before commissioning the replacement unit.

In Advant systems where the DSDI 110A or DSDI 45 digital input modules have already reached end-of-life, the 086364-001 serves as the verified functional equivalent, slotting into the same subrack position without requiring changes to the AMPL application program or MasterPiece controller configuration. The DSDP 140 and DSDP 150 digital output modules installed in adjacent subrack slots continue to operate without interruption, as the S100 I/O bus arbitration is handled at the AC450 or AC160 controller level.

For sites running mixed Advant and System 800xA architectures during a phased migration, the CI857 PROFINET adapter or CI854A PROFIBUS DP communication interface modules are often deployed in parallel to bridge legacy S100 I/O data into the 800xA OPC server environment — allowing the 086364-001 to continue serving its field inputs while the broader DCS migration proceeds in stages. Power supply continuity is maintained through the DSQC 604 or DSQC 661 power supply units mounted in the controller cabinet, which provide the regulated 24 VDC rail that feeds both the digital input modules and the field sensor loop circuits.

Where signal isolation is required between the field wiring and the Advant I/O bus — particularly in high-noise environments such as motor control centres or variable frequency drive (VFD) panels — the DSAI 130 or DSAI 155 analogue input modules with built-in galvanic isolation are often installed in adjacent slots, and the same isolation philosophy applies to the digital input circuit. In such installations, the 086364-001 is typically paired with external signal conditioners or relay interface modules mounted on DIN rail within the same control cabinet.

For facilities planning a longer-term migration from Advant to the AC500 PLC platform, the PM591 or PM595 CPU modules provide the target controller architecture, and the I/O migration path typically involves mapping existing Advant DI channel assignments to equivalent AC500 DI581-S or DI582 digital input modules — a process that TOPNLMS technical support can assist with during the pre-order consultation phase.

Retrofit Guidance FAQ

Q: Can I replace the 086364-001 without modifying existing field wiring?
A: Yes. The module uses the standard Advant DSBC cable and terminal board interface. Existing 24 VDC field wiring connected to the terminal board remains unchanged. Simply remove the faulty module, insert the replacement into the same subrack slot, and restore power.

Q: Do I need to re-download the AMPL application program after replacement?
A: No re-programming is required. The Advant controller identifies the module by its subrack slot address, not by a unique module serial number. Once the replacement module is seated and powered, the controller resumes normal I/O scanning without any software intervention.

Q: Is the 086364-001 compatible with both AC110 and AC450 controllers?
A: The module is designed for the Advant S100 I/O bus architecture, which is shared across the AC110, AC160, and AC450 controller families. Compatibility should be verified against your specific subrack type (DSBC subrack vs. S100 I/O subrack) and the controller’s I/O configuration table before installation.

Q: What communication protocol does this module use?
A: The 086364-001 communicates via the ABB proprietary S100 I/O bus. No PROFIBUS, PROFINET, or Modbus configuration is required. The module is transparent to the controller’s application program.

Q: How much physical space does the replacement require?
A: The module occupies a single standard Advant subrack slot. No cabinet modification, additional DIN rail space, or power supply upgrade is required for a like-for-like replacement.

Q: What if my system is mid-migration to System 800xA?
A: The 086364-001 can continue operating in its existing Advant subrack while the 800xA migration proceeds in parallel. The S100 I/O bus data can be surfaced into the 800xA environment via a CI857 or CI854A communication interface, allowing a phased cutover without production interruption.

Warranty Assurance

Every ABB 086364-001 Digital Input Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification process that includes power-on testing, digital input channel continuity checks, and visual inspection for physical damage, connector integrity, and component condition. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. Warranty claims are processed via email at [email protected] with the order number, fault description, and photographic evidence of the defect.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export from Xiamen, China is supported with standard courier services (DHL, FedEx, UPS) and sea freight consolidation for bulk orders. Typical dispatch time is 1–3 business days from order confirmation.

TOPNLMS maintains a standing inventory of Advant-series modules to support emergency replacement scenarios. If you require expedited shipping or have a critical plant shutdown window, contact our sales team directly to confirm stock availability and arrange priority dispatch.
