ABB 086363-002 Original Industrial Spare ACS800 Compatible

Product Overview

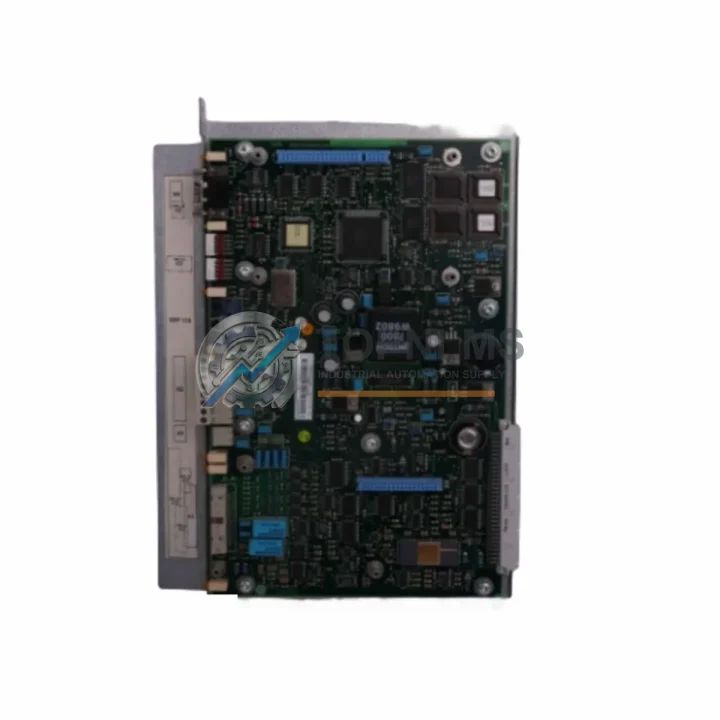

ABB 086363-002 Original Industrial Spare ACS800 Compatible – Drive Control PCB for System Stability

The ABB 086363-002 is an original drive control printed circuit board (PCB) engineered for ABB ACS800 series variable frequency drives. In industrial environments where continuous production uptime is non-negotiable, this board governs the drive’s core control logic, signal processing, and feedback regulation. Whether you are managing a scheduled maintenance window, responding to an unplanned drive fault, or building a strategic spare parts inventory for a multi-drive facility, the ABB 086363-002 delivers the reliability and OEM compatibility that maintenance engineers depend on.

ABB’s ACS800 drive platform is widely deployed across pulp and paper, metals processing, oil and gas, water treatment, and material handling industries. The control PCB within these drives is subject to thermal cycling, vibration, and electrical stress over years of continuous operation. When this board begins to degrade — manifesting as erratic speed control, fault codes such as FF52 or FF61, communication dropouts, or complete drive failure — rapid replacement with a verified original spare is the fastest path back to production.

Critical Technical Specs

Preventive Maintenance Strategy

A drive control PCB failure rarely occurs in isolation. In most ACS800 installations, the 086363-002 control board interacts continuously with the power supply board — such as the ABB 086362-001 APOW power supply board — the IGBT gate driver board, and the I/O extension modules mounted in the drive’s option slots. During any maintenance intervention involving the 086363-002, it is sound engineering practice to simultaneously inspect these adjacent components for signs of capacitor bulging, solder joint fatigue, or contamination from airborne particulates.

The drive’s RMIO-02 control board and RDCO-03 communication module are also worth evaluating during the same maintenance window. If your ACS800 is integrated into a fieldbus network — PROFIBUS-DP, DeviceNet, or Modbus RTU — the communication adapter card should be checked for firmware currency and connector integrity. A degraded RDCO communication module can mask or amplify faults that appear to originate in the control PCB, leading to misdiagnosis and extended downtime.

On the power distribution side, the 24 VDC auxiliary power supply feeding the control electronics, the DC bus capacitor bank, and the input/output terminal blocks should be part of any comprehensive drive cabinet inspection. Fuse modules protecting the control circuit supply — such as the ABB OFAF series or equivalent DIN-rail fuse holders — are inexpensive insurance against cascading failures. Replacing a blown fuse module alongside the control PCB eliminates a common repeat-fault scenario that wastes maintenance labor.

For facilities running multiple ACS800 drives, a structured spare parts plan should include at minimum one 086363-002 control PCB per drive family, alongside a matched set of gate driver boards, a spare RMIO module, and a backup RDCO communication adapter. This inventory posture reduces mean time to repair (MTTR) from days to hours, directly protecting production throughput and OEE targets. Signal isolators installed between the drive’s analog I/O and field instrumentation also deserve periodic inspection — degraded isolation can introduce noise that triggers spurious fault codes on an otherwise healthy control board.

For facilities also operating ABB ACS600 or ACS550 drives in adjacent control cabinets, the maintenance philosophy is identical: original spare boards, pre-tested before shipment, stored in anti-static packaging, and sourced from a verified supplier with documented warranty coverage.

Strategic Replacement Solutions

The ABB 086363-002 is a direct OEM replacement for the original control PCB in ACS800 drives. Unlike third-party remanufactured boards, this original spare maintains full compatibility with ABB’s drive firmware, parameter memory architecture, and hardware interlocks. Field replacement requires no firmware re-flashing, no parameter reconfiguration from scratch, and no compatibility validation beyond confirming the drive model and hardware revision.

For aging ACS800 installations where the original drive is no longer in ABB’s active production catalog, sourcing original spare PCBs is the most cost-effective strategy for extending system life by 5–10 years without the capital expenditure of a full drive replacement. The 086363-002 supports this legacy extension strategy by providing a verified, tested board that restores the drive to its original performance specification — preserving the investment already made in the surrounding control system infrastructure, including existing HMI panels, PLC communication wiring, and motor cabling.

Maintenance teams managing planned shutdowns can pre-stage the replacement board in the control cabinet, complete the swap during the scheduled window, and return the drive to service within the same shift. This approach eliminates the unplanned downtime risk associated with emergency procurement. All units shipped from TOPNLMS are functionally tested prior to dispatch and covered by a 12-month warranty, providing procurement teams with the documentation and assurance required for maintenance records and audit compliance.

Support FAQ

Q: How do I confirm the 086363-002 is compatible with my specific ACS800 drive?
A: Compatibility is confirmed by matching the drive’s hardware revision and the PCB part number printed on the existing board. The 086363-002 is designed for the ACS800 control board slot. If you provide your drive’s full type designation (e.g., ACS800-01-0016-3), our technical team can verify compatibility before shipment.

Q: What is included in the 12-month warranty?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. Each board is functionally tested before dispatch. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q: Can I replace the 086363-002 in the field without specialist tools?
A: Yes. The board is designed for field replacement using standard ESD precautions. Power down the drive, discharge the DC bus, remove the existing board from its mounting slot, install the replacement, and restore power. No soldering or firmware tools are required for a standard swap.

Q: How should I store a spare 086363-002 in my maintenance inventory?
A: Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, <70% RH). Avoid stacking heavy items on the board. Inspect the spare annually for any signs of storage-related degradation. Boards stored correctly retain full functionality for 5+ years.
