ABB 086363-001 Original Industrial Spare ACS Series Compatible

Product Overview

ABB 086363-001 Original Industrial Spare ACS Series Compatible: Ensuring Drive System Stability and Minimizing Downtime

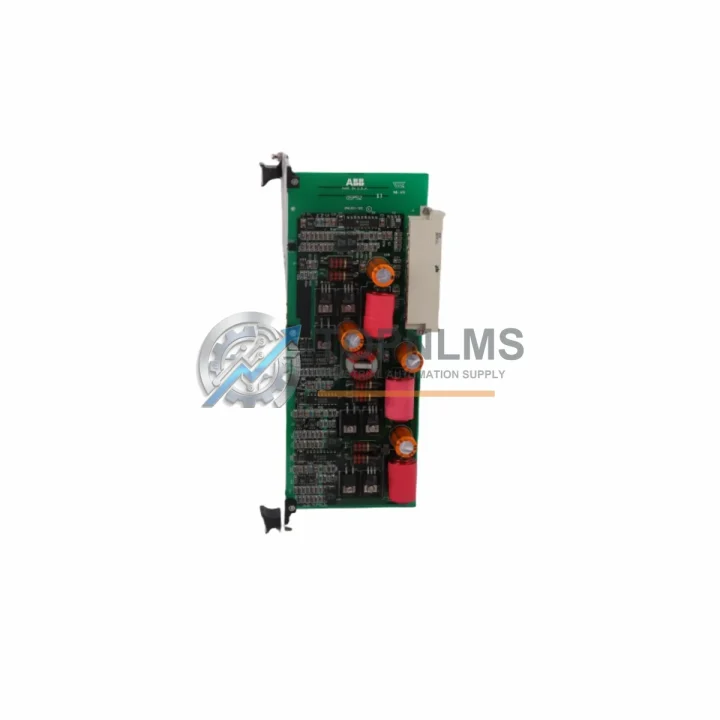

In modern industrial facilities, the reliability of variable frequency drive (VFD) systems is foundational to uninterrupted production. The ABB 086363-001 is an original printed circuit board (PCB) designed for ABB ACS series drive control applications. As a core drive control card, it governs the signal processing, gate firing logic, and feedback regulation that keep your motor drive operating within specification. When this board fails — whether due to voltage transients, thermal stress, or component aging — the entire drive unit is rendered inoperable, leading to unplanned downtime that can cost thousands per hour in lost production.

Stocking the ABB 086363-001 as a verified spare is one of the most cost-effective decisions a maintenance team can make. Rather than waiting days or weeks for emergency procurement, a pre-tested replacement board can restore drive functionality within hours. This page provides full technical specifications, a preventive maintenance framework, and strategic replacement guidance to help your team manage ABB drive assets with confidence.

Critical Technical Specs

Preventive Maintenance Strategy

A drive control board failure rarely occurs in isolation. In most industrial environments, the ABB 086363-001 operates within a broader drive cabinet ecosystem where multiple components are subject to the same thermal cycling, vibration, and electrical stress. A disciplined preventive maintenance (PM) program should treat the control board replacement as a trigger for a comprehensive cabinet inspection.

When scheduling a planned outage to replace or inspect the 086363-001, maintenance engineers should simultaneously verify the condition of the ABB ACS drive power supply module, which provides regulated DC voltage to the control board. A degraded power supply is a leading cause of premature PCB failure and should be tested under load before the drive is returned to service. Alongside this, the ABB RDCO-02 or RDCO-03 communication adapter module — used for DDCS or fieldbus connectivity — should be inspected for firmware version compatibility and connector integrity, as communication faults can be misdiagnosed as control board failures.

The ABB ACS I/O extension module (such as the RAIO or RDIO series) connected to the drive should also be checked during the same maintenance window. These modules handle analog and digital I/O signals that feed into the control board’s logic; a faulty I/O module can generate erratic fault codes that mask the true source of the problem. Similarly, the drive’s gate driver board — which interfaces directly with the IGBT power module — should be visually inspected for burn marks, cracked solder joints, or capacitor bulging.

Terminal blocks and control wiring within the cabinet deserve attention as well. Loose or corroded terminals on the ABB drive control terminal strip can introduce signal noise that degrades control board performance over time. During the inspection, verify torque on all signal and power terminals and replace any discolored or brittle wiring insulation. If the drive is connected to an ABB panel-mount HMI or ACS keypad panel, confirm that the keypad cable and connector are seated correctly, as intermittent keypad faults can trigger unnecessary board replacements.

For drives operating in dusty or humid environments, the drive cabinet cooling fan module is a critical maintenance item. Overheating is the primary accelerant of PCB degradation; a failing fan can reduce board lifespan from years to months. Inspect fan blades, bearings, and airflow paths during every PM cycle. Finally, if the drive system includes an ABB brake chopper module or external braking resistor assembly, verify their condition — a failed brake chopper can cause DC bus overvoltage events that damage the control board directly.

Maintaining a small buffer stock of the 086363-001 alongside these associated components — particularly the power supply module, I/O extension module, and gate driver board — transforms your maintenance posture from reactive to proactive, dramatically reducing mean time to repair (MTTR) across your ABB drive fleet.

Strategic Replacement Solutions

The ABB 086363-001 is designed as a direct OEM replacement for the original control board installed in compatible ACS series drives. Unlike third-party aftermarket boards, this original ABB PCB maintains full firmware compatibility, parameter retention capability, and signal timing accuracy — critical factors when replacing a board in a running production system where re-commissioning time must be minimized.

For facilities managing aging ABB drive installations — particularly ACS drives that are 10–15 years old — the 086363-001 provides a cost-effective path to system life extension without the capital expenditure of a full drive replacement. By replacing only the failed control board, maintenance teams preserve the existing drive chassis, power stack, and wiring infrastructure, reducing both cost and installation time. This approach is especially valuable in legacy systems where the drive is deeply integrated into a PLC or DCS control architecture and full drive replacement would require significant re-engineering of the control program and I/O mapping.

When sourcing replacement boards for critical production assets, procurement teams should prioritize suppliers who perform pre-shipment functional testing and provide documented warranty coverage. Each ABB 086363-001 unit shipped from TOPNLMS undergoes functional verification before dispatch and is covered by a 12-month warranty, giving maintenance managers confidence in both the part quality and the post-sale support commitment. Fast dispatch and reliable lead times mean that even in emergency breakdown scenarios, downtime can be contained to a minimum.
