ABB 086362-001 Replacement Upgrade for System 800xA: Smooth Migration from Legacy DCS Power Infrastructure

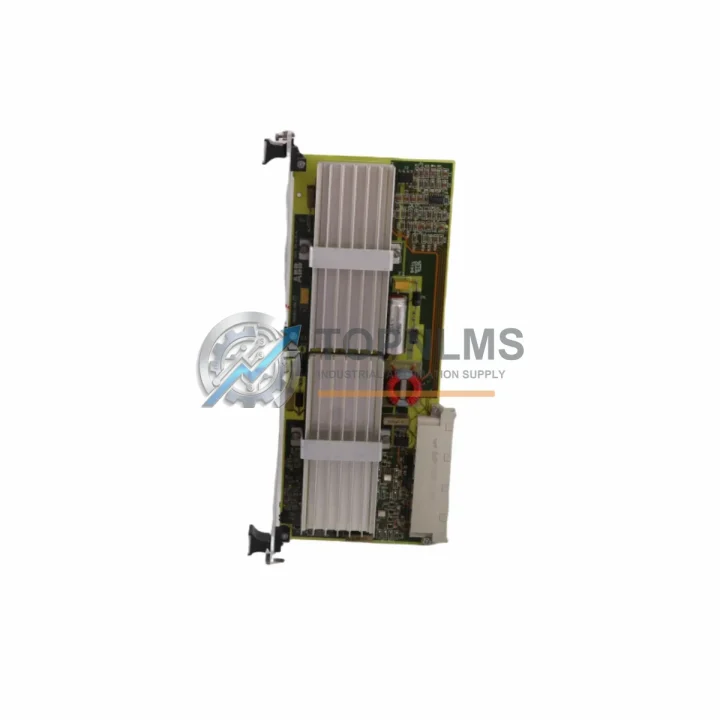

The ABB 086362-001 Bulk Power Supply is a critical rack-level power module designed for ABB’s System 800xA Distributed Control System platform. As aging DCS installations approach end-of-life or face discontinued spare part availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade paths that minimize engineering rework, reduce downtime risk, and preserve existing rack architecture. This listing provides a fully tested, ready-to-ship 086362-001 unit sourced to support seamless migration from legacy power configurations to a reliable, warrantied replacement.

Whether your facility is running a brownfield System 800xA installation with original power infrastructure from the early 2000s, or you are managing a mid-life DCS upgrade project where the bulk power supply has become a single point of failure, the 086362-001 is engineered to slot directly into existing ABB S800 I/O racks and AC800M controller cabinets without requiring structural modifications to the control cabinet or rewiring of field termination assemblies.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS power supply migration rarely involves a single component in isolation. When replacing the 086362-001 in an active System 800xA installation, field engineers typically address the broader power distribution and I/O architecture simultaneously to ensure system stability and reduce future maintenance windows.

In most S800 I/O rack configurations, the bulk power supply works in conjunction with the TB820V2 ModuleBus Modem and TB840A Redundant ModuleBus Modem, which handle communication between the I/O rack and the AC800M controller. If the power supply has been running beyond its rated service life, it is prudent to inspect these modem modules for capacitor aging and firmware compatibility before commissioning the replacement unit. Similarly, the AI810 Analog Input Module and AO810V2 Analog Output Module installed in the same rack draw regulated power from the 086362-001 bus — verifying their operating status during the power supply swap prevents masked faults from surfacing post-commissioning.

For facilities upgrading from earlier S800 rack generations, the CI854A PROFIBUS DP Interface Module and CI840A AF100 Interface Module are common fieldbus communication modules that remain in service alongside the new power supply. These modules do not require reconfiguration when the bulk PSU is replaced, provided the rack bus voltage is restored within specification. In redundant power configurations, a second 086362-001 unit is installed in the adjacent PSU slot — TOPNLMS can supply matched pairs to support N+1 redundancy requirements.

Control cabinet power distribution upstream of the S800 rack often involves a 24 VDC SITOP PSU300S or equivalent DIN-rail power supply feeding the rack input terminals. Verifying the upstream supply’s output ripple and load regulation before installing the replacement 086362-001 is a standard commissioning step that prevents premature failure of the new module. For sites transitioning from older ABB Advant OCS or MOD 300 DCS architectures to System 800xA, the 086362-001 is part of the standardized power infrastructure that supports the migration, alongside the AC800M PM866 Controller and associated SD823 Power Supply Unit for the controller module itself.

Where signal isolation is required between legacy field wiring and the new I/O modules, MTL or P+F signal isolators are commonly installed in the same cabinet, and their 24 VDC supply can be consolidated with the rack power feed to simplify cabinet wiring during the retrofit. TOPNLMS maintains stock of complementary S800 I/O modules, communication interfaces, and power components to support complete rack-level upgrades in a single procurement event.

Retrofit Guidance FAQ

Q: Can I replace the 086362-001 without powering down the entire DCS rack?
A: In systems configured with redundant bulk power supplies (two PSU slots populated), the 086362-001 supports hot-swap replacement. The redundant unit maintains rack bus power while the failed module is extracted and the replacement is inserted. In single-PSU configurations, a controlled shutdown of the I/O rack is required. The AC800M controller can be placed in a safe hold state via the 800xA engineering station before the rack is de-energized.

Q: Does replacing the bulk power supply require any changes to the 800xA configuration database?
A: No. The 086362-001 is a passive power distribution module with no addressable identity in the 800xA configuration. No hardware unit (HWU) changes, no Control Builder M project modifications, and no download to the AC800M controller are required. The replacement is transparent to the software layer.

Q: What wiring changes are needed at the rack terminal block?
A: None. The 086362-001 connects via the S800 rack backplane bus. Field wiring terminates on the I/O module terminal units (TU810, TU830, TU840 series), which remain undisturbed during the PSU replacement. Only the module itself is extracted and reinserted.

Q: Is the 086362-001 compatible with both 24 VDC and 120/230 VAC input configurations?
A: The 086362-001 is a DC-input bulk power supply rated for 24 VDC input. It is not an AC/DC converter. Upstream AC/DC conversion is handled by a separate DIN-rail PSU in the control cabinet. Confirm your cabinet’s upstream supply is 24 VDC before ordering.

Q: How do I verify the replacement unit is functioning correctly after installation?
A: After insertion, the rack status LEDs on the TB820V2 or TB840A ModuleBus Modem will indicate normal operation. The 800xA System Status display will clear any power-related hardware alerts within one scan cycle. A loop check on representative AI and AO channels confirms signal integrity across the restored power bus.

Q: What if my existing rack uses an older revision of the 086362-001?
A: ABB’s revision history for the 086362-001 maintains backward compatibility across rack generations. The current revision supplied by TOPNLMS is electrically and mechanically interchangeable with all prior revisions used in S800 I/O racks.

Warranty Assurance

Every ABB 086362-001 Bulk Power Supply shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional test verifying input voltage acceptance, output bus regulation, and module latch integrity. Units that do not pass inspection are not listed for sale.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit — no repair loop, no extended RMA delay. Our after-sales response target is 24 hours for warranty inquiries received by email. Replacement units are dispatched from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Volume orders and blanket purchase agreements for ongoing DCS maintenance programs are supported — contact our sales team to discuss pricing and lead time commitments.

TOPNLMS specializes in hard-to-source DCS and PLC spare parts for System 800xA, AC800M, S800 I/O, and related ABB automation platforms. Our inventory is maintained to support both emergency breakdown replacements and planned maintenance shutdowns, with same-day dispatch available for in-stock items ordered before 15:00 CST.
