ABB 086351-504 Replacement Upgrade for Drive Control Series

Product Overview

ABB 086351-504 Replacement Upgrade for Drive Control Series: Seamless Transition from Legacy Drive Systems

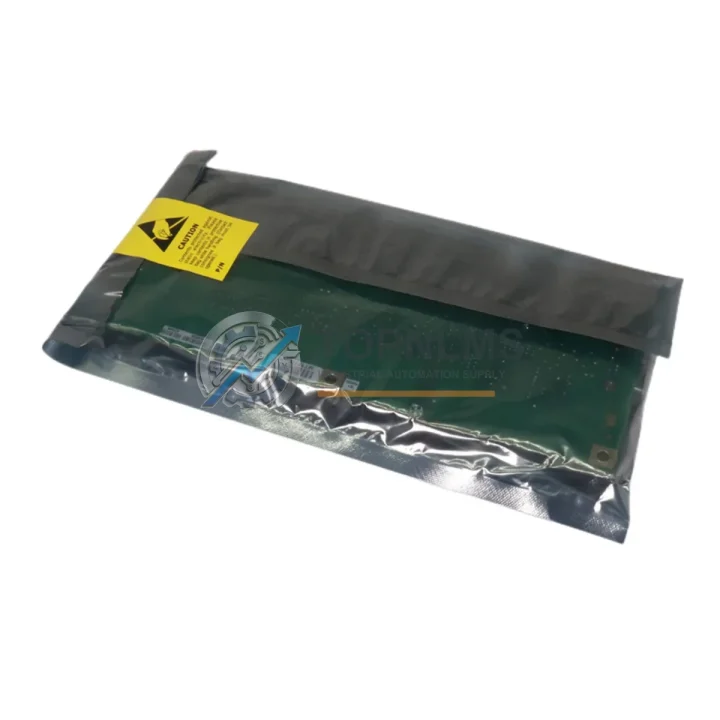

The ABB 086351-504 (also cross-referenced as 086351-004) is a drive control PCB designed for ABB’s ACS and DCS variable frequency drive platforms. For facilities running aging ABB ACS400, ACS600, ACS800, or DCS400 series drives, this board represents the most direct path to restoring full drive functionality without replacing the entire drive cabinet. Whether your original control board has failed due to component aging, power surge damage, or firmware corruption, the 086351-504 provides a pin-compatible, electrically equivalent replacement that preserves your existing wiring harness, terminal layout, and drive parameter structure.

Industrial sites that have standardized on ABB drive architecture — including those running ACS550, ACS355, or legacy DCS500 DC drive controllers — frequently encounter situations where a single failed control board triggers unplanned downtime across an entire production line. Rather than sourcing a full drive replacement or waiting weeks for OEM repair cycles, substituting the 086351-504 directly into the existing drive chassis restores operation within hours. The board interfaces natively with ABB’s standard RDCO, RMIO, and RAIO I/O extension modules, meaning your existing I/O wiring, analog signal conditioning, and fieldbus communication cards remain undisturbed.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful drive control board migration rarely involves a single component in isolation. When replacing the 086351-504 in an ACS800 or ACS600 drive, engineers typically audit the surrounding subsystem at the same time. The RMIO-11C main I/O board, which handles analog and digital I/O routing within the drive, is a common co-replacement item — particularly when the original failure was caused by a power transient that may have stressed adjacent boards. Similarly, the RDCO-01C or RDCO-02C communication option modules, which provide the Profibus DP or DeviceNet fieldbus interface, should be inspected and tested before returning the drive to service.

For sites migrating from DCS400 or DCS500 DC drive platforms to modern ACS800 AC drive architecture, the control cabinet wiring changes are more substantial. In these cases, the AINT-02C auxiliary interface board and the APOW-01C auxiliary power supply module are frequently required to adapt the new drive’s internal power distribution to the existing cabinet infrastructure. If the original cabinet used a DDCS fiber-optic communication ring to coordinate multiple drives, the RDCO-03C fiber-optic communication module provides the equivalent interface on the replacement drive platform.

Panel builders and system integrators handling full cabinet retrofits also commonly source the ABB ACS800 control panel CDP312R alongside the 086351-504, allowing operators to retain a familiar keypad interface during the transition period. For applications where the original drive communicated via Modbus RTU over RS-485, the RMBA-01 Modbus adapter module ensures protocol continuity without PLC program changes. Signal isolation between the new drive and legacy 4–20 mA field instruments is typically handled by DIN-rail-mounted signal isolators installed at the terminal strip level within the control cabinet.

Retrofit Guidance FAQ

Q: Do I need to rewire the drive cabinet when installing the 086351-504?
No. The 086351-504 uses the same connector layout and terminal pinout as the 086351-004. All existing wiring harnesses, ribbon cables, and terminal block connections remain in place. The board slides into the same chassis position and locks with the original retention hardware.

Q: Will my existing PLC program need modification after the replacement?
In most cases, no. If your PLC communicates with the drive via Profibus DP, Modbus RTU, or DeviceNet using standard ABB drive parameter addressing, the communication profile is preserved. You will need to restore drive parameters — either by re-entering them manually or uploading a previously saved parameter file via ABB DriveWindow or the CDP312R keypad.

Q: Is the 086351-504 compatible with both ACS and DCS series drives?
Yes. The board is cross-compatible across ABB’s ACS400, ACS600, ACS800, DCS400, and DCS500 drive families where the 086351-004 was originally fitted. Always verify the drive’s hardware revision label before installation to confirm board generation compatibility.

Q: How do I handle the physical space constraints in a compact control cabinet?
The 086351-504 is dimensionally identical to the original board. No additional clearance, bracket modification, or cabinet re-layout is required. For cabinets with restricted airflow, verify that the drive’s cooling fan and heat sink are clean and functional before returning the drive to full-load operation.

Q: What communication protocols are supported after replacement?
The replacement board supports Profibus DP, Modbus RTU, and DeviceNet — the same protocols supported by the original 086351-004. If your site uses DDCS fiber-optic communication for multi-drive coordination, ensure the RDCO-03C fiber module is seated correctly after board replacement.

Q: Can I test the board before installing it in the live drive?
All units shipped by TOPNLMS are pre-tested under power before dispatch. Functional verification is performed against ABB drive test fixtures. If you wish to bench-test the board independently before installation, standard ABB drive commissioning procedures apply.

Warranty Assurance

Every ABB 086351-504 drive control board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes power-on functional verification, communication interface checks, and visual inspection for component integrity. Units that do not pass testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Defective units are assessed within 3 business days of receipt, and replacement boards are dispatched with priority handling. Our after-sales team is reachable via email and phone for technical support during installation and commissioning. We maintain stock of the 086351-504 and related ABB drive components to support rapid fulfillment for both single-unit emergency replacements and multi-unit planned maintenance orders.

For volume procurement, scheduled maintenance contracts, or urgent same-day quotation requests, contact our industrial components team directly. We ship from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and delivery urgency.
