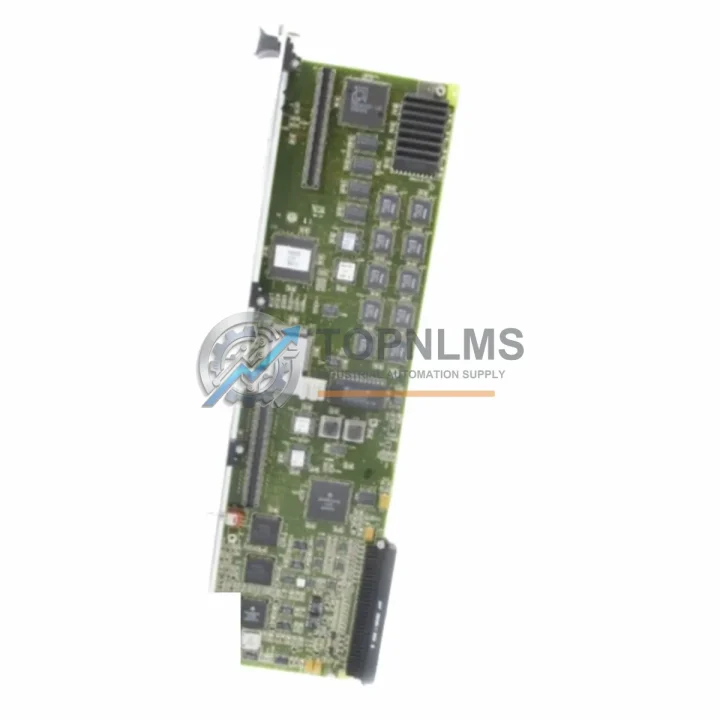

ABB 086349-001 Original Industrial Spare ACS/DCS Compatible

Product Overview

ABB 086349-001 Original Industrial Spare ACS/DCS Compatible: System Stability & Drive Maintenance Value

The ABB 086349-001 Gate Driver Board is a critical original spare component for ABB ACS and DCS series variable frequency drives and DC drive systems. In industrial environments where drive availability directly determines production uptime, maintaining a verified stock of original ABB gate driver boards is a foundational element of any responsible preventive maintenance program. This board governs the IGBT firing signals that control motor torque and speed — a failure here results in immediate drive shutdown, uncontrolled motor behavior, or catastrophic IGBT module damage. Sourcing an original ABB 086349-001 ensures signal integrity, thermal compatibility, and firmware-level alignment with the drive’s control platform.

For maintenance engineers managing aging ACS550, ACS800, ACS880, DCS550, or DCS800 drive fleets, the 086349-001 represents one of the highest-priority boards to keep in local inventory. Unlike generic replacements, the original ABB board is factory-calibrated for gate pulse timing, dead-time compensation, and fault feedback loops — parameters that directly affect IGBT longevity and drive reliability. Facilities operating continuous-process lines, compressor stations, pump systems, or crane drives cannot afford the lead time associated with reactive procurement when this board fails.

Critical Technical Specs

Preventive Maintenance Strategy

When a gate driver board fault is detected in an ABB ACS or DCS drive, experienced maintenance teams know that the fault rarely occurs in isolation. A thorough inspection of the surrounding drive stack is essential before returning the system to service. During any planned shutdown or corrective maintenance event involving the 086349-001, engineers should simultaneously inspect the IGBT power module (such as the ABB OINT5510C or equivalent stack module) for signs of thermal stress, gate oxide degradation, or collector-emitter leakage — a failed gate driver can mask or cause IGBT damage that will trigger a repeat failure within weeks if not addressed.

The ABB AINT-board (Application Interface Board) and RDCO communication option board should be checked for firmware version alignment and connector integrity, as communication faults between the control and power sections are a common secondary symptom of gate driver degradation. Simultaneously, the DC bus capacitor bank should be tested for capacitance and ESR — capacitor aging increases ripple current stress on the gate driver circuitry and accelerates board failure cycles.

Facilities should also audit the 24VDC auxiliary power supply module feeding the drive control section. Voltage sag or ripple on the auxiliary rail is a leading cause of spurious gate driver faults and should be verified with a calibrated oscilloscope during the maintenance window. The fan and cooling assembly (including the drive’s internal cooling fan module and heatsink thermal interface) must be inspected and replaced on schedule — thermal cycling is the primary aging mechanism for gate driver boards in high-duty-cycle applications.

For drives integrated into larger control architectures, the fieldbus adapter module (PROFIBUS, PROFINET, or Modbus RTU depending on site configuration) and I/O extension module should be verified for signal continuity and terminal torque. Loose signal wiring at the terminal block assembly is a frequent source of intermittent gate fault alarms that are misdiagnosed as board failures. Finally, the control panel (ACS-CP-C or equivalent HMI keypad) should be tested for parameter retention and fault log integrity — this data is invaluable for root-cause analysis and future maintenance planning.

Strategic Replacement Solutions

The ABB 086349-001 is a direct original replacement for the gate driver board position in affected ACS and DCS series drives. Unlike third-party alternatives, the original board requires no parameter adjustment, firmware patching, or hardware modification — it is a plug-and-replace solution that restores the drive to factory specification immediately. This is particularly valuable in facilities where drives are integrated into safety-rated or process-critical loops, where any deviation from OEM specification must be documented and validated.

For sites managing legacy ACS800 or DCS550 fleets that are approaching end-of-support lifecycle, stocking the 086349-001 alongside other high-wear boards (such as the AINT application board and the APOW power supply board) provides a cost-effective system life extension strategy. Rather than committing to a full drive replacement — which may require motor re-commissioning, cable rerouting, and control system reprogramming — a targeted spare parts strategy centered on original ABB boards can extend operational life by 5–10 years at a fraction of the capital cost. This approach is widely adopted in water treatment, mining, pulp and paper, and heavy manufacturing sectors where drive replacement downtime is prohibitively expensive.

Each 086349-001 unit supplied by TOPNLMS is sourced from verified original ABB supply channels, individually tested for gate signal output integrity and fault feedback response prior to shipment, and covered by a 12-month warranty. Units are packaged in anti-static ESD-safe materials and shipped with full traceability documentation.

Support FAQ

Q: How do I confirm the ABB 086349-001 is compatible with my specific drive model?
A: The 086349-001 is designed for ABB ACS and DCS series drives. Please provide your full drive model number and nameplate data when inquiring — our technical team will confirm compatibility before order confirmation. We cross-reference ABB’s spare parts documentation to ensure exact fit.

Q: What testing is performed before shipment?
A: Every 086349-001 board undergoes functional gate signal output verification and fault feedback loop testing on ABB-compatible test equipment before dispatch. A test report is available upon request. Units are shipped in ESD-safe packaging with tamper-evident sealing.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified drive platform. Warranty claims are processed with full technical support from our engineering team.

Q: What is the recommended inventory strategy for this board?
A: For facilities operating more than three ABB ACS/DCS drives, we recommend maintaining a minimum of one 086349-001 in local stock at all times. For continuous-process or 24/7 operations, a two-unit buffer is advisable. Pairing this board with a stocked IGBT module and auxiliary power supply board provides comprehensive coverage for the most common drive failure modes.
