ABB 086348-001 Original Industrial Spare AC800M Compatible: System Stability & Industrial Spare Parts Maintenance Value

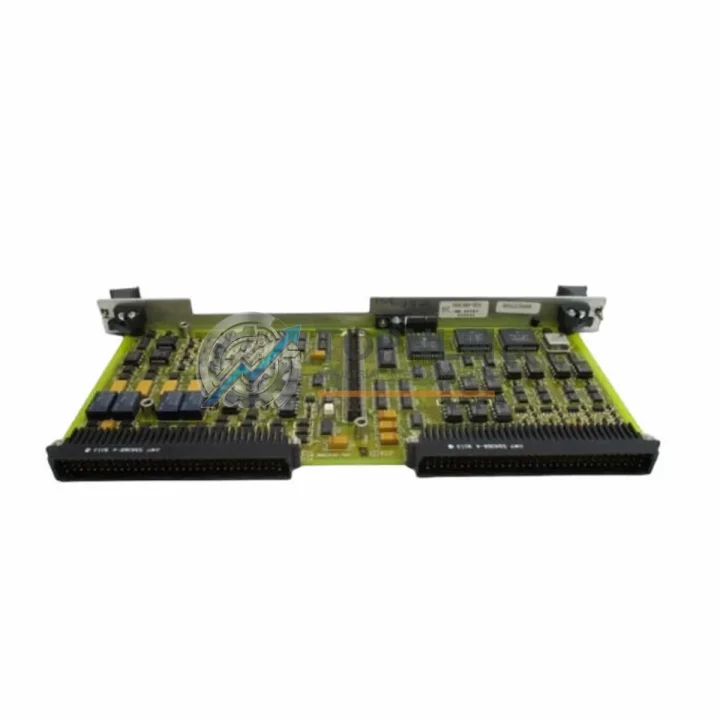

The ABB 086348-001 is a genuine processor module designed for the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures across petrochemical, power generation, pulp & paper, and heavy manufacturing industries. As a central processing unit within the AC800M controller family, this module governs real-time execution of control logic, communication with I/O modules, and coordination across the entire DCS network. Maintaining an available stock of the 086348-001 is a foundational element of any serious industrial spare parts strategy for facilities running ABB AC800M-based control systems.

In high-availability production environments, an unplanned processor failure can trigger full-line shutdowns within seconds. The 086348-001 is a direct-fit replacement that restores system operation without requiring firmware reconfiguration or hardware adaptation — preserving your existing control logic, communication topology, and I/O mapping. For maintenance engineers managing aging DCS infrastructure, having this module on the shelf is the difference between a two-hour swap and a multi-day outage.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or emergency replacement of the ABB 086348-001 processor module, experienced maintenance teams treat the event as an opportunity to audit the broader AC800M control cabinet. The processor module does not operate in isolation — its performance and longevity are directly tied to the health of surrounding components in the same control loop and power distribution chain.

Begin with the TB820V2 communication interface module and CI854B Profibus DP interface, which handle fieldbus communication between the processor and remote I/O stations. A degraded communication module can cause intermittent faults that are often misdiagnosed as processor failures. Simultaneously, inspect the SD821 and SD822 power supply modules — these 24 VDC units feed the controller backplane, and any ripple or voltage sag will directly impact processor stability and memory retention.

For facilities running mixed I/O architectures, this is also the right time to verify the condition of DI810 digital input modules and DO810 digital output modules installed in the same S800 I/O cluster. Worn terminal blocks or oxidized connectors on these modules can introduce signal noise that burdens the processor’s scan cycle. If your plant uses analog process signals, inspect the AI810 analog input module and AO810V2 analog output module for calibration drift — particularly in high-temperature or high-humidity environments.

Don’t overlook the TP830 termination panel and associated field wiring terminations. Loose or corroded terminals are a leading cause of intermittent faults in AC800M systems and are frequently discovered only during a full cabinet inspection triggered by a processor swap. For systems with redundancy configurations, verify that the PM866 redundancy processor module (if installed) is synchronized and its firmware version matches the primary unit being replaced.

Finally, review the BC810 battery-backed memory module status. If the battery backup has not been replaced within the recommended service interval, a processor module swap is the ideal time to address it — preventing loss of retained data during the next power cycle. A comprehensive cabinet inspection during a planned 086348-001 replacement typically adds less than 30 minutes to the maintenance window but can prevent multiple unplanned outages over the following 12–18 months.

Strategic Replacement Solutions

The ABB 086348-001 is a proven solution for facilities seeking to extend the operational life of AC800M-based DCS infrastructure without migrating to a new control platform. Many plants running AC800M systems installed in the 2000s and 2010s face a common challenge: the original processor modules are approaching end-of-service life, but a full DCS migration carries capital costs and project risks that are difficult to justify for systems still performing reliably.

Stocking the 086348-001 as a certified spare eliminates the most critical single point of failure in this scenario. Unlike third-party compatible alternatives, the original ABB module maintains full compatibility with ABB’s Control Builder M engineering software, preserving your existing project files, function block libraries, and diagnostic routines without modification. This means a field technician can complete a hot-swap replacement and return the system to automatic mode in under two hours — compared to days or weeks for a platform migration.

For facilities managing multiple AC800M controllers across a plant network, a recommended spare parts strategy is to maintain at least one 086348-001 per controller family variant deployed on site, with a secondary unit held at the central warehouse. This two-tier inventory approach ensures that both local maintenance teams and central procurement have immediate access to the module without creating excessive carrying costs. Combined with a structured inspection cycle for power supplies, I/O modules, and communication interfaces, this strategy delivers measurable reductions in mean time to repair (MTTR) and supports ISO 55000-aligned asset management objectives.

Support FAQ

Q1: Is the ABB 086348-001 compatible with all AC800M controller variants?
The 086348-001 is designed for the AC800M platform and is compatible with the PM8xx series controller chassis. Compatibility with specific firmware versions and hardware revisions should be verified against your existing system’s engineering documentation or ABB’s hardware compatibility matrix. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What testing is performed before shipment?
Each 086348-001 unit undergoes functional power-on testing and visual inspection for connector integrity, PCB condition, and component status before dispatch. Units are shipped in ESD-safe anti-static packaging with a test report available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How should I manage spare parts inventory for an aging AC800M system?
For AC800M systems beyond their original design life, we recommend a risk-based spare parts strategy: prioritize processor modules (086348-001), power supply modules (SD821/SD822), and communication interface modules (CI854B, TB820V2) as Tier 1 critical spares. I/O modules (DI810, DO810, AI810) should be held as Tier 2 spares based on installed quantity and failure history. Annual inventory reviews aligned with planned maintenance shutdowns help optimize stock levels without over-investment.

Q4: What is the lead time and warranty coverage?
In-stock units ship within 1–3 business days. International orders are supported with standard export documentation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched upon fault confirmation to minimize your downtime exposure.
