ABB 086329-003 Ruggedized Excitation Control Module for Harsh Environments

Product Overview

ABB 086329-003 Ruggedized Excitation Control Module for Harsh Environments

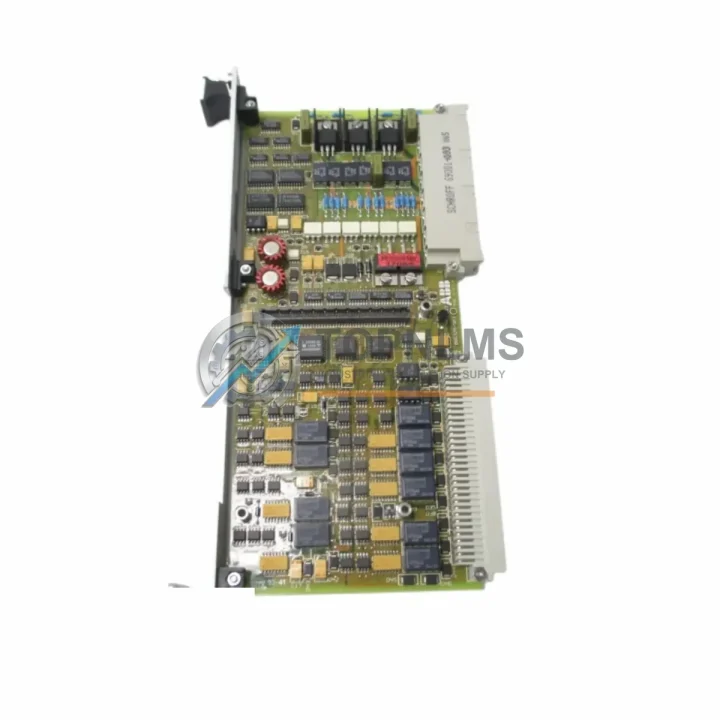

The ABB 086329-003 is a precision-engineered Excitation Control Board designed as the core AVR (Automatic Voltage Regulator) processor within ABB’s UNITROL ECS generator excitation systems. Built to IEC and ABB industrial-grade standards, this module delivers unwavering voltage regulation performance in the most demanding power generation and heavy industrial environments — including high-temperature turbine halls, high-humidity coastal substations, dust-laden mining facilities, and vibration-intensive rotating machinery installations.

Unlike generic control boards, the 086329-003 is purpose-built for continuous-duty excitation control, where even a momentary lapse in AVR response can cascade into generator trip events, production shutdowns, or grid instability. Its ruggedized PCB construction, conformal coating, and EMI-shielded signal paths ensure stable closed-loop voltage regulation under electromagnetic interference from large motors, variable frequency drives, and high-current bus bars operating in the same switchgear room.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 086329-003 does not operate in isolation — it is the intelligence layer within a broader excitation and power protection architecture. In a typical power plant or industrial generator installation, this board works in concert with the ABB UNITROL ECS power converter stack, which converts DC field current with precision under the AVR’s command. The excitation transformer and field suppression resistor assembly interface directly with the 086329-003’s analog measurement inputs, providing real-time feedback on terminal voltage, reactive power (Q), and field current (If).

For generator protection, the 086329-003 integrates with ABB REG216 or REG316 generator protection relays, ensuring that under-excitation, over-excitation, and loss-of-field conditions are detected and acted upon within milliseconds. In plants running ABB Symphony Plus DCS or ABB 800xA distributed control systems, the excitation controller communicates via PROFIBUS DP or Modbus RTU, allowing operators to monitor AVR status, adjust setpoints, and log excitation events from the central control room without interrupting generation.

The control cabinet housing the 086329-003 typically also contains ABB SACE Emax or Tmax circuit breakers for field circuit protection, ABB UNO-PS or CP-E series 24 VDC power supplies for auxiliary board power, and ABB CM-series monitoring relays for voltage and current supervision. In multi-generator bus configurations, the synchronization function of the UNITROL ECS — coordinated by the 086329-003 — works alongside ABB SYNCHROTACT 5 synchronizing devices to achieve bumpless paralleling onto live busbars.

For facilities running mixed automation architectures, the 086329-003’s analog I/O and serial communication ports allow integration with Siemens SIMATIC S7-400 PLCs or Rockwell Automation ControlLogix systems acting as plant-level supervisory controllers, ensuring that excitation control remains part of a unified SCADA or DCS strategy without requiring proprietary gateways.

Application in Critical Infrastructure

The ABB 086329-003 Excitation Control Board is deployed across the most demanding sectors of critical infrastructure worldwide:

Oil & Gas: Offshore platforms and onshore LNG terminals rely on continuous generator availability. The 086329-003 maintains stable terminal voltage for safety-critical loads including emergency shutdown systems, fire and gas detection panels, and variable speed drives powering compressor trains. Its conformal-coated PCB resists salt-laden, hydrocarbon-contaminated atmospheres that would degrade standard industrial electronics within months.

Mining & Minerals Processing: Open-pit and underground mining operations subject electrical equipment to extreme vibration from blasting, haul trucks, and crushing machinery. The 086329-003’s ruggedized board construction and vibration-tolerant component selection ensure AVR stability even when mounted in generator houses adjacent to primary crushers or ball mills operating 24/7.

Power Generation & Utilities: In thermal, hydro, and gas turbine power plants, the 086329-003 governs reactive power output and terminal voltage with the precision required for grid code compliance. It supports power factor control, reactive power sharing between parallel generators, and under-frequency load shedding coordination — functions that are non-negotiable in grid-connected generation.

Water & Wastewater Treatment: Large pumping stations and water treatment facilities depend on reliable generator backup for continuous operation. The 086329-003 ensures that standby generators reach rated voltage within the required time window during mains failure, protecting sensitive process instrumentation and SCADA systems from voltage transients during transfer.

Metallurgy & Steel: Electric arc furnaces and rolling mill drives create severe harmonic distortion and voltage flicker on plant power systems. The 086329-003’s fast AVR response — with closed-loop bandwidth optimized for UNITROL ECS — actively compensates for these disturbances, protecting downstream process equipment and maintaining power quality within contractual limits.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 086329-003?
Every ABB 086329-003 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during post-installation commissioning. Each unit undergoes pre-shipment functional testing and visual inspection. If a fault is confirmed within the warranty period, we provide a replacement unit or full refund — no lengthy RMA bureaucracy.

Q2: How is the 086329-003 tested before shipment?
All units are inspected for physical integrity (PCB traces, connector pins, component seating), powered-on for basic functional verification where applicable, and cross-referenced against ABB part number databases to confirm authenticity and revision compatibility. Units showing any sign of prior field damage, counterfeit markings, or out-of-spec components are rejected and not listed for sale.

Q3: Is the ABB 086329-003 compatible with all UNITROL ECS revisions?
The 086329-003 is the standard AVR processor board for the ABB UNITROL ECS platform. It is compatible with UNITROL ECS systems across the primary production generations. For installations with specific firmware revision requirements or hardware variant constraints (e.g., UNITROL 1000 vs. UNITROL 5000 derivative configurations), our technical team can advise on revision matching before order confirmation. Contact us with your existing system’s nameplate data for a compatibility check.

Q4: Can TOPNLMS support long-term or repeat supply of the 086329-003?
Yes. TOPNLMS maintains stock of critical ABB excitation and control spare parts to support planned maintenance schedules, emergency breakdowns, and multi-site fleet standardization programs. We can provide framework pricing for annual supply agreements, priority allocation for repeat customers, and advance notification when stock levels approach reorder thresholds. For power generation operators managing multiple generator sets, we recommend holding at least one spare 086329-003 per site to eliminate unplanned downtime risk.
