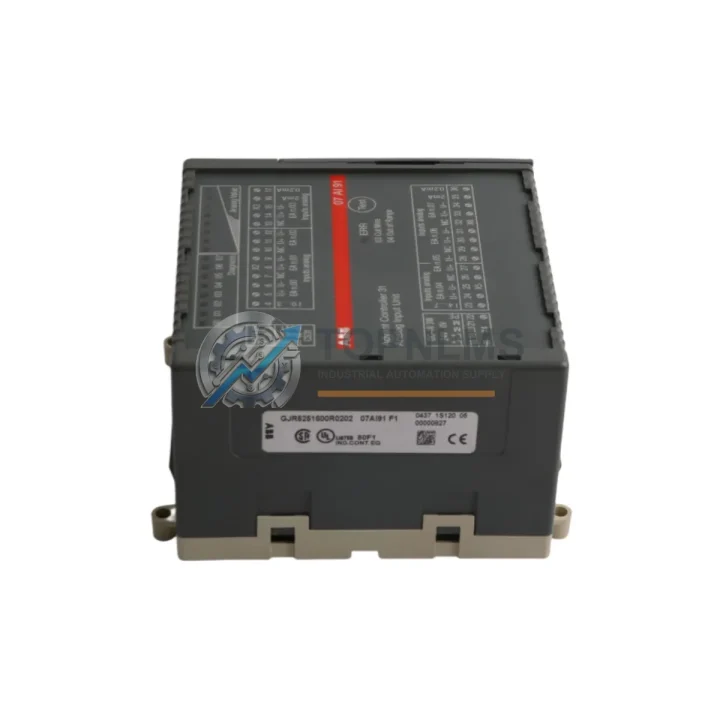

ABB 07AI91 GJR5251600R0202 Ruggedized Analog Input Module

Product Overview

ABB 07AI91 GJR5251600R0202 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The ABB 07AI91 (GJR5251600R0202) is an 8-channel analog input module engineered for the ABB Advant Controller AC31 platform — one of ABB’s most proven distributed control architectures deployed across critical industrial infrastructure worldwide. Designed to operate reliably under extreme thermal stress, high humidity, persistent vibration, airborne particulates, and intense electromagnetic interference, this module delivers the signal integrity and measurement accuracy that demanding process environments require without compromise.

In continuous production lines — whether in oil refining, chemical processing, power generation, or heavy metallurgy — analog signal fidelity is non-negotiable. The 07AI91 accepts standard industrial analog signals (4–20 mA / 0–10 V) across all eight channels simultaneously, providing the AC31 controller with real-time process variable data for closed-loop control, alarm management, and safety interlock logic. Its robust hardware design, combined with ABB’s industrial-grade PCB conformal coating and shielded backplane interface, ensures stable operation even when installed in control cabinets subject to motor-drive harmonics, high-frequency switching noise from variable frequency drives (VFDs), and ground loop interference common in large-scale plant environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 07AI91 does not operate in isolation — it is a precision instrument within a broader ABB AC31 control system architecture. In a typical control cabinet deployment, it works in concert with the ABB 07KT98 CPU module, which serves as the central processing unit coordinating all I/O data exchange across the rack. Digital output control is handled by companion modules such as the ABB 07DO91 digital output module, while analog output commands are issued through the ABB 07AO91 analog output module — together forming a complete closed-loop process control chain.

For installations requiring communication with SCADA systems or distributed field devices, the AC31 platform supports integration via PROFIBUS-DP communication modules (e.g., 07DP91), enabling seamless data exchange with upstream DCS controllers or HMI stations. In high-vibration environments such as mining conveyors or compressor stations, the 07AI91 is typically paired with ABB 07AC91 power supply modules that provide stable, filtered DC power to the entire rack, protecting sensitive analog circuitry from voltage transients and ripple.

Where safety-rated control is required — such as emergency shutdown (ESD) systems in oil and gas facilities — the 07AI91 feeds process variable data to ABB safety relay modules and safety-rated CPU variants within the AC31 family, supporting SIL-compliant architectures. Terminal modules and marshalling panels using ABB ORIO or NTAI series signal conditioning terminal blocks are commonly used upstream of the 07AI91 to normalize field signals before they enter the module, extending its service life by protecting input circuits from field-side surges and wiring faults.

In facilities running ABB ACS series variable frequency drives on the same power distribution network, the 07AI91’s EMI-hardened design ensures that switching harmonics do not corrupt analog measurement accuracy — a critical requirement in steel mills, cement plants, and water pumping stations where large motor loads and precision process control must coexist.

Application in Critical Infrastructure

The ABB 07AI91 GJR5251600R0202 has established a long service record across the most demanding sectors of global industrial infrastructure.

In oil and gas upstream and midstream operations, it monitors pressure transmitters, flow meters, and temperature sensors on wellheads, compressor skids, and pipeline metering stations — environments characterized by explosive atmospheres, wide temperature swings, and continuous 24/7 operation. Its reliable analog acquisition ensures that the AC31 controller receives accurate process data for custody transfer measurement and safety interlock activation.

In thermal and hydroelectric power generation, the module is deployed in turbine control panels and boiler management systems, where it reads analog signals from thermocouples (via signal conditioners), pressure transducers, and vibration sensors. Millisecond-level response accuracy is essential for load-following control and protection relay coordination.

In mining and mineral processing, the 07AI91 withstands the high-dust, high-vibration conditions of crusher control rooms and flotation cell automation panels. Its conformal-coated PCB resists corrosive airborne particles from ore processing, while its shock-rated mechanical design tolerates the structural vibration transmitted through plant floors.

In municipal water and wastewater treatment, it provides the analog input backbone for pump station automation, chemical dosing control, and effluent quality monitoring — applications where long-term measurement drift must be minimized to maintain regulatory compliance.

In metallurgy and steel production, the module operates in the high-EMI environment of electric arc furnaces and rolling mill drives, where its shielded backplane interface and differential input capability suppress common-mode noise that would otherwise introduce measurement errors into critical temperature and flow control loops.
