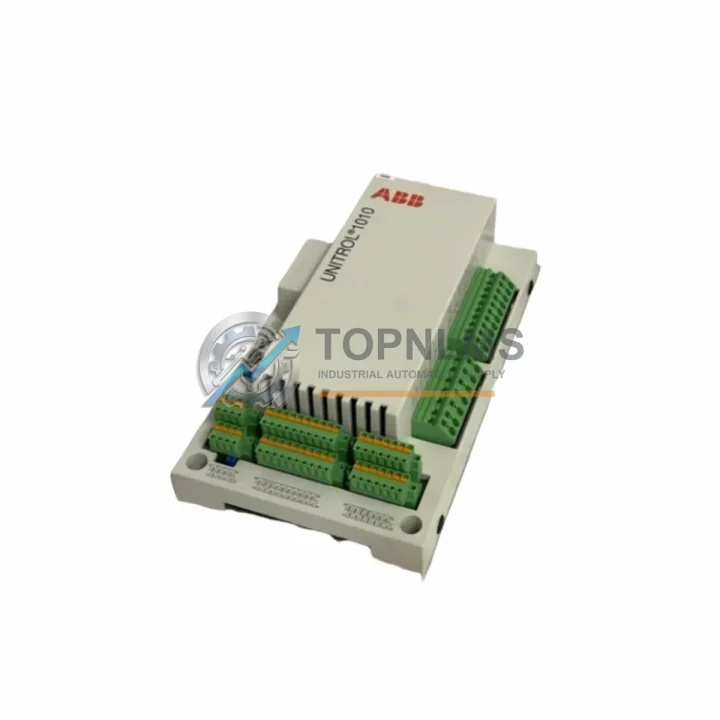

ABB 0121A-Z V1 3BHE035301R1002 Replacement for UNITROL: Seamless Excitation Control Upgrade

The ABB 0121A-Z,V1 / 3BHE035301R1002 is a core Automatic Voltage Regulator (AVR) excitation control module within ABB’s UNITROL series — a platform widely deployed in synchronous generators, hydro turbines, steam turbines, and large industrial drive systems across power generation, oil & gas, marine, and heavy manufacturing sectors. As ABB progressively phases out legacy UNITROL variants, plant engineers and procurement teams face the critical challenge of sourcing a verified replacement that preserves wiring compatibility, communication protocol integrity, and control cabinet spatial constraints — all while minimizing generator downtime.

TOPNLMS maintains verified stock of the ABB 0121A-Z,V1 (3BHE035301R1002) module, fully tested prior to shipment, with a 12-month warranty and documented traceability. Whether you are executing a like-for-like swap of a failed unit or planning a phased excitation system modernization, this module provides the most direct migration path from discontinued or aging UNITROL hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UNITROL excitation system migration rarely involves a single module swap. In practice, field engineers replacing the ABB 0121A-Z,V1 (3BHE035301R1002) AVR control module will typically audit and potentially replace several adjacent components to ensure system-level reliability and communication integrity.

On the power supply side, the UNITROL excitation cabinet relies on a stable 24 VDC auxiliary power module — components such as the ABB UNITROL power supply board (3BHE004573R0001) or equivalent UNITROL PSU cards should be inspected for capacitor aging and output ripple before commissioning the new AVR module. A degraded power supply is a common root cause of AVR instability that is misdiagnosed as a control module fault.

For field excitation and thyristor bridge integrity, the AVR module interfaces directly with the thyristor firing board — in many UNITROL 1000 and UNITROL 5000 installations, this is a dedicated pulse transformer board or gate drive card such as the ABB 3BHE009681R0001 or similar firing circuit modules. These should be verified for gate signal integrity during the retrofit commissioning phase.

On the communication and I/O side, UNITROL systems integrated into plant DCS or SCADA architectures via PROFIBUS DP will require verification of the PROFIBUS interface module — components like the ABB CI854A (3BSE030220R1) PROFIBUS DP interface or equivalent fieldbus adapters used in the broader ABB System 800xA or Symphony Plus DCS environment should be confirmed as compatible with the replacement AVR firmware version. Where Modbus RTU is used for generator management system (GMS) integration, the serial communication parameters (baud rate, parity, station address) must be re-confirmed after module replacement.

For plants running ABB AC800M controllers or ABB Freelance DCS as the supervisory layer above the excitation system, the AVR setpoint and status signals are typically exchanged via hardwired analog I/O or fieldbus. Ensuring that the ABB AI810 analog input module (3BSE008516R1) or equivalent I/O cards correctly receive the generator terminal voltage feedback and reactive power signals post-replacement is a critical commissioning checkpoint.

In generator protection schemes, the AVR module interacts with the generator protection relay — commonly an ABB REG216 or REG630 series relay — for under-excitation limiting (UEL), over-excitation limiting (OEL), and loss-of-field (LOF) protection coordination. These relay settings should be reviewed and re-tested after any AVR module replacement to confirm that protection coordination remains valid.

Where the excitation system includes a manual excitation control backup channel, the manual control potentiometer interface and the automatic/manual transfer relay logic should be verified against the replacement module’s I/O map. Some UNITROL firmware revisions alter the manual channel input scaling, which can affect the transfer bumpless switching behavior.

Finally, for sites using ABB Panel Builder or ABB CP600 HMI panels for local generator control, the HMI tag database referencing AVR setpoints, excitation current, and voltage regulation mode should be validated after the module swap to ensure operator display accuracy.

Retrofit Guidance FAQ

Q: Can I replace the 0121A-Z,V1 (3BHE035301R1002) without rewiring the excitation cabinet?
A: In most standard UNITROL installations, the module uses the same backplane connector and terminal assignment as its predecessor variants. However, always cross-reference the terminal diagram in your site-specific UNITROL engineering documentation before proceeding. Minor wiring differences may exist between UNITROL sub-series revisions.

Q: Do I need to re-upload the AVR parameter set after replacing the module?
A: Yes. The replacement module will not retain the previous unit’s parameter set. You must reload the site-specific AVR tuning parameters (voltage setpoint, droop setting, PID gains, limiter thresholds) using ABB’s UNITROL commissioning software (CMT or equivalent). Ensure you have a current parameter backup before removing the failed module.

Q: Is the PROFIBUS DP address retained after module replacement?
A: No. The PROFIBUS station address is stored in the module’s non-volatile memory. After replacement, the address must be re-configured via the commissioning tool or the front panel DIP switches (depending on UNITROL variant) to match the original address used by the DCS or SCADA system.

Q: What is the physical installation space requirement?
A: The 0121A-Z,V1 module is designed for direct slot installation in the standard UNITROL control cabinet rack. No additional mounting hardware or cabinet modification is required for a like-for-like replacement. Confirm the slot position against your UNITROL cabinet layout drawing.

Q: Can this module be used as a spare/standby unit without immediate installation?
A: Yes. The module can be stored as a cold standby spare. Store in original anti-static packaging in a dry environment (10–40°C, <75% RH non-condensing). Inspect for any transit damage before installation. TOPNLMS recommends a functional bench test using the UNITROL test jig before committing the spare to live service.

Q: What communication protocols does this module support?
A: The 0121A-Z,V1 supports PROFIBUS DP and Modbus RTU depending on the firmware variant and UNITROL system configuration. Confirm the protocol variant against your site’s UNITROL system documentation and DCS integration specification before ordering.

Warranty Assurance

Every ABB 0121A-Z,V1 (3BHE035301R1002) unit shipped by TOPNLMS is subject to a documented pre-shipment functional test covering power-up self-diagnostics, communication interface verification, and visual inspection for component integrity. Units that do not pass the test protocol are quarantined and not dispatched.

12-Month Warranty Coverage: TOPNLMS provides a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

Replacement Support: In the event of a warranty claim, TOPNLMS will prioritize dispatch of a verified replacement unit to minimize generator downtime. Our technical team is available to assist with fault diagnosis documentation required for warranty processing.

After-Sales Response: Our engineering support team responds to technical inquiries within 1 business day. For urgent plant outage situations, expedited response is available — contact us directly at [email protected] or call +86 18359293191.

Procurement Assurance: All units are shipped with a packing list, test record, and traceability documentation. Export packaging is designed for international air freight and sea freight. Lead time for in-stock units is typically 3–7 business days to most destinations. DDP, DAP, and EXW Incoterms are available on request.
