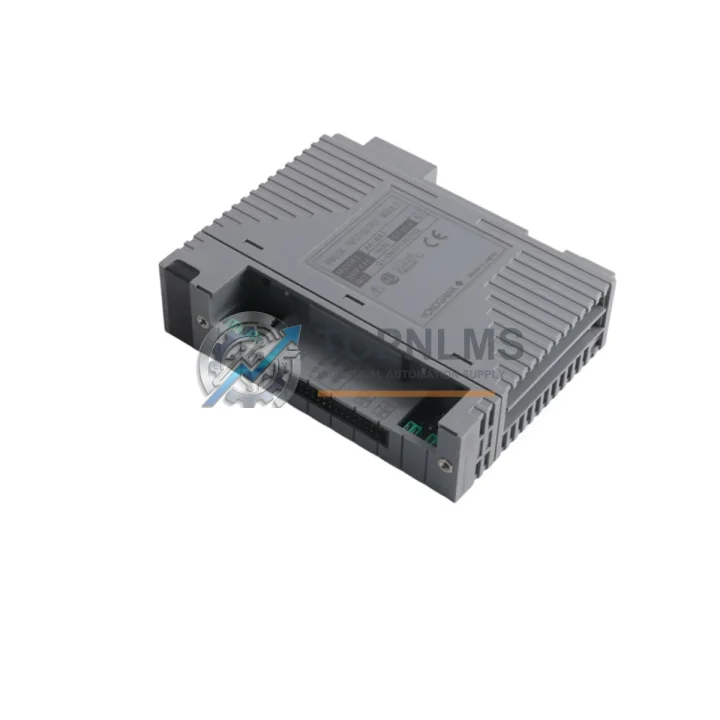

YOKOGAWA AAI841-H00 Ruggedized Analog Input Module

Product Overview

YOKOGAWA AAI841-H00 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The YOKOGAWA AAI841-H00 is a 16-channel analog input module engineered for the CENTUM VP and CS 3000 Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across critical industries worldwide. Designed to operate reliably in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy plant environments, the AAI841-H00 delivers the signal integrity and system stability that modern industrial operations demand.

In continuous production lines — whether in oil refining, petrochemical processing, power generation, or metallurgical operations — analog signal acquisition is the backbone of real-time process visibility. The AAI841-H00 accepts 4–20 mA current loop signals from field transmitters, converting them with high-resolution accuracy into digital values that the CENTUM VP controller processes for closed-loop control, alarm management, and safety interlock logic. Its 16-channel density reduces cabinet footprint while maintaining the channel-to-channel isolation necessary to prevent ground loops and cross-talk in electrically noisy field environments.

For procurement engineers and MRO teams managing aging CENTUM VP or CS 3000 installations, the AAI841-H00 represents a proven, in-stock replacement option that eliminates extended lead times and costly system downtime. Every unit available through TOPNLMS is functionally tested, visually inspected, and shipped with a 12-month warranty — providing the confidence required for critical infrastructure procurement decisions.

Rugged Specifications Table

Comprehensive Protection Solutions

The AAI841-H00 does not operate in isolation — it is one node in a tightly integrated CENTUM VP control architecture. In a typical process plant control cabinet, it works alongside the YOKOGAWA AAI835-H00 8-channel analog input module for lower-density I/O zones, and the AAO145-H00 analog output module that drives control valves and actuators based on the processed signals. For discrete field devices, the ADV151-P00 digital input module and ADV551-P00 digital output module handle on/off signals from limit switches, solenoids, and motor starters — completing the I/O layer of the control cabinet.

System power integrity is maintained by the YOKOGAWA PW481 power supply module, which provides regulated, redundant DC power to the I/O bus — a critical safeguard in facilities where power fluctuations can trigger spurious shutdowns or corrupt analog readings. The ACM12-E00 communication module bridges the CENTUM VP field controller to plant-wide Ethernet networks using Vnet/IP, ensuring that the analog data captured by the AAI841-H00 reaches the operator workstation with minimal latency and maximum data integrity.

For safety-instrumented system (SIS) integration, the AAI841-H00 is commonly deployed alongside YOKOGAWA ProSafe-RS safety controller modules, where its analog inputs feed process variables into safety logic solvers for emergency shutdown (ESD) and fire-and-gas (F&G) applications. Terminal block assemblies such as the TB820V marshalling terminal unit provide the field wiring interface, offering surge protection and organized cable management within the control cabinet. In HART-enabled installations, the YOKOGAWA YTA710 temperature transmitter and EJA110E differential pressure transmitter are typical field devices whose 4–20 mA + HART signals are acquired directly by the AAI841-H00, enabling both analog process values and digital HART diagnostics to coexist on the same wiring pair.

For facilities requiring enhanced electromagnetic shielding, the AAI841-H00 is installed within grounded steel control cabinets alongside YOKOGAWA KFCS2 field control stations, which provide the processing backbone that interprets the module’s digitized analog inputs and executes PID control, ratio control, and cascade strategies in real time. This complete ecosystem — from field transmitter through I/O module, power supply, communication module, and safety controller — ensures that every layer of the control system is protected against the harsh realities of industrial plant environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the AAI841-H00 monitors wellhead pressure, separator levels, and pipeline flow rates in environments subject to explosive atmospheres, salt-laden air, and extreme temperature swings. Its robust signal conditioning ensures that even weak milliamp signals from remote transmitters arrive at the DCS controller without degradation, supporting the continuous, uninterrupted monitoring that safety regulations demand.

In coal-fired and combined-cycle power plants, the module tracks boiler drum levels, turbine exhaust temperatures, and feedwater flow — parameters where a missed reading or signal dropout can trigger a costly unit trip. The module’s high-resolution 16-bit conversion and channel-to-channel isolation are essential in environments saturated with high-voltage switching transients from large motor drives, transformer banks, and variable frequency drives (VFDs).

In water and wastewater treatment plants, the AAI841-H00 acquires pH, dissolved oxygen, turbidity, and flow signals from field analyzers operating in chemically aggressive, high-humidity pump stations. Its sealed module housing and conformal-coated PCB resist corrosion from chlorine and hydrogen sulfide vapors commonly present in these facilities, ensuring long service life without premature failure.

In metallurgical and steel-making operations, the module endures radiant heat from furnaces, heavy mechanical vibration from rolling mills, and intense electromagnetic interference from arc furnaces and induction heaters — conditions that would compromise lesser I/O hardware. The AAI841-H00’s compliance with IEC 60068 environmental stress standards makes it a proven choice for these demanding applications, where unplanned downtime carries enormous financial and safety consequences.

In mining and mineral processing, where control rooms may be located kilometers from field instruments, the module’s ability to accurately process 4–20 mA signals over long cable runs — with proper loop resistance budgeting — ensures reliable monitoring of crusher loads, conveyor belt speeds, and flotation cell levels. Its low-power design also reduces heat generation within densely packed control cabinets in remote mine site installations.

Security & Quality FAQ

Q1: Does the AAI841-H00 come with a warranty?
Yes. Every AAI841-H00 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing and visual inspection before dispatch. If a unit fails within the warranty period, we provide replacement or repair support promptly, minimizing your plant downtime.

Q2: How is the module tested before shipment?
All modules are bench-tested for power-up integrity, channel continuity, and communication handshake with CENTUM VP system emulation where applicable. Units sourced from verified industrial surplus or OEM channels are inspected for firmware version, physical condition, and absence of counterfeit indicators before being listed as available stock. A test report is available upon request for critical procurement applications.

Q3: Is the AAI841-H00 compatible with both CENTUM VP and CS 3000 systems?
Yes. The AAI841-H00 is designed for use within the CENTUM VP and CS 3000 DCS platforms. Compatibility depends on your specific system revision and I/O node configuration. We recommend confirming your controller firmware version and I/O bus type (Vnet/IP or ESB) before ordering. Our technical team can assist with compatibility verification at no charge prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. We maintain rolling stock of high-demand YOKOGAWA CENTUM VP I/O modules to support planned maintenance, emergency replacements, and capital project builds. For MRO customers requiring scheduled deliveries or blanket purchase orders, please contact our sales team to discuss availability commitments, lead-time guarantees, and volume pricing. We support both one-time emergency orders and long-term supply agreements.
