Siemens A5E42881257 Ruggedized Power Unit Module

Product Overview

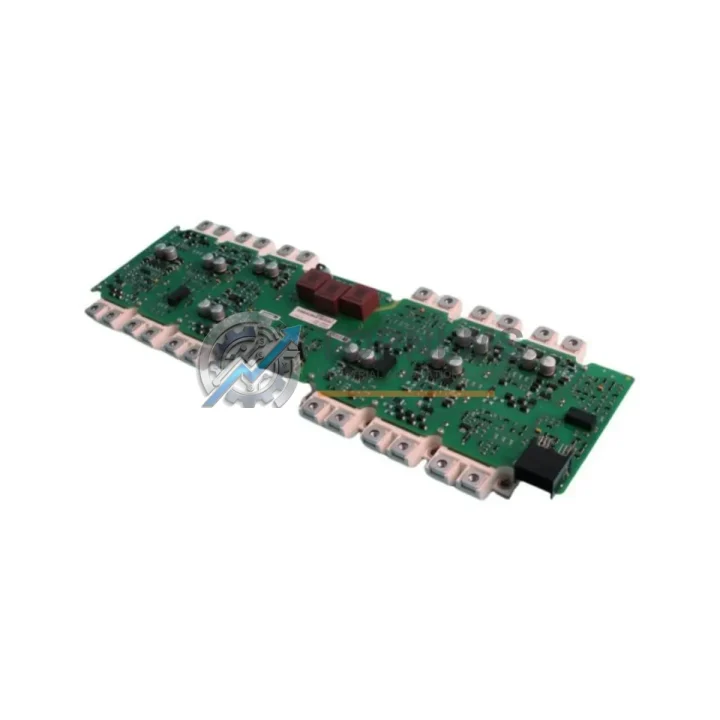

Siemens A5E42881257 Ruggedized Power Unit Module for Harsh Environments

The Siemens A5E42881257 is a high-performance Power Unit Module within the SINAMICS S120 drive system — engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to deliver stable, conditioned DC bus power to connected drive components, this module is built to withstand elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI) that are characteristic of heavy industrial sites. Whether deployed in a steel mill, offshore platform, chemical processing plant, or automated assembly line, the A5E42881257 maintains consistent output integrity without compromise.

At TOPNLMS, every unit is sourced through verified supply channels, pre-shipment tested, and backed by a 12-month quality warranty — giving procurement engineers and maintenance teams the confidence to plan replacements and system expansions with minimal risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The A5E42881257 Power Unit Module is the backbone of a coordinated SINAMICS S120 drive architecture. In a typical high-availability control cabinet, this module supplies conditioned DC bus power to one or more SINAMICS S120 Motor Modules (such as the 6SL3120 series single-axis or double-axis variants), enabling precise torque and speed control across multiple drive axes simultaneously. The CU320-2 DP Control Unit or CU320-2 PN Control Unit governs the entire drive group via PROFIBUS DP or PROFINET IO, coordinating axis synchronization and integrated safety functions.

For system-level safety, the A5E42881257 integrates seamlessly with Siemens SINAMICS S120 Safety Integrated functions — including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Operating Stop (SOS) — without requiring external safety relays in many configurations. This reduces cabinet wiring complexity and improves response time in emergency stop scenarios. Complementary Siemens SITOP PSU8600 power supply modules are commonly deployed in the same cabinet to provide stable 24 VDC control voltage to the CU320-2 and associated I/O terminals, ensuring uninterrupted logic-level power even during main bus fluctuations.

On the field I/O side, Siemens ET 200SP distributed I/O modules connected via PROFINET extend digital and analog signal acquisition from field sensors directly into the S120 control loop — critical for closed-loop pressure, flow, and position control in process industries. Siemens SIMATIC S7-1500 PLC systems frequently serve as the supervisory controller, issuing setpoint commands to the S120 drive group over PROFINET while simultaneously managing safety interlocks through F-CPU fail-safe modules and SIMATIC Safety distributed I/O. Terminal connectivity within the cabinet is typically handled by Siemens SIRIUS 3RT contactors and 3RV circuit breakers, which provide upstream motor protection and isolation capability aligned with IEC 60947 standards.

For applications requiring communication redundancy or protocol bridging, Siemens SCALANCE X industrial Ethernet switches ensure deterministic PROFINET ring topologies with Media Redundancy Protocol (MRP), while CP 1543-1 communication processors enable secure remote diagnostics and firmware updates — a key consideration for unmanned or remote industrial installations where on-site intervention is costly and operationally disruptive.

Application in Critical Infrastructure

In oil and gas facilities, the A5E42881257 drives compressor trains, pump stations, and wellhead control systems where unplanned downtime translates directly into production loss and safety risk. Its robust EMC shielding ensures stable operation even in environments saturated with high-frequency interference from variable-speed drives, welding equipment, and high-voltage switchgear operating in close proximity. Offshore platform installations particularly benefit from the module’s humidity tolerance and vibration compliance, where salt-laden air and structural resonance are persistent stressors.

In mining operations, the module powers conveyor belt drives, hoist systems, and ventilation fans that must run continuously across multi-shift production cycles. Mechanical shock and vibration from blasting and heavy equipment are constant stressors — the A5E42881257’s compliance with EN 60068-2-6 vibration standards ensures it maintains electrical integrity under these conditions without premature connector fatigue or PCB delamination. Underground installations with limited ventilation further validate the module’s wide thermal operating range.

In power generation and grid infrastructure, including thermal, hydro, and wind energy facilities, the module supports auxiliary drive systems for cooling fans, feedwater pumps, and pitch control actuators. Its wide operating temperature range and humidity tolerance make it equally suited to tropical coastal substations and high-altitude mountain installations where ambient conditions vary dramatically across seasons.

In water and wastewater treatment plants, the A5E42881257 drives aeration blowers, sludge pumps, and UV disinfection systems — applications where continuous 24/7 operation is mandatory and where corrosive atmospheric conditions (hydrogen sulfide, chlorine vapors) demand sealed cabinet integration with IP20-rated modules behind filtered enclosures. Reliable spare part availability from TOPNLMS ensures that planned maintenance intervals are met without extended lead-time risk.

In metallurgy and steel production, rolling mill drives, ladle transfer cars, and furnace exhaust fans rely on SINAMICS S120 power units to deliver precise, high-torque control at variable speeds. The A5E42881257’s ability to sustain rated output under sustained high-load cycles — without thermal derating-induced faults — is a critical reliability differentiator in these environments, where a single unplanned drive failure can halt an entire production line.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All A5E42881257 units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Replacement or repair is arranged promptly to minimize your downtime. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every unit undergoes a pre-shipment functional inspection including visual examination for physical damage, connector integrity verification, and where applicable, power-on functional testing. Units that do not meet our quality benchmarks are quarantined and not dispatched. A test report or inspection certificate can be provided upon request for critical procurement requirements.

Q3: Is the A5E42881257 compatible with my existing SINAMICS S120 system?
The A5E42881257 is designed for integration within the SINAMICS S120 Booksize drive system architecture. Compatibility depends on your specific firmware version, Control Unit type (CU320-2 DP or PN), and cabinet configuration. TOPNLMS technical staff can assist with compatibility verification — please provide your existing system’s order numbers or MLFB codes when enquiring.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains stock of high-demand SINAMICS S120 components including power units, motor modules, and control units to support both emergency replacement and planned maintenance schedules. We can accommodate blanket purchase orders, scheduled releases, and priority allocation for critical infrastructure customers. Contact our sales team to discuss long-term supply agreements.
