Bently Nevada 991-01-XX-01-CN Original Industrial Spare 3500 Compatible

Product Overview

Bently Nevada 991-01-XX-01-CN Original Industrial Spare 3500 Compatible: System Stability & Maintenance Value

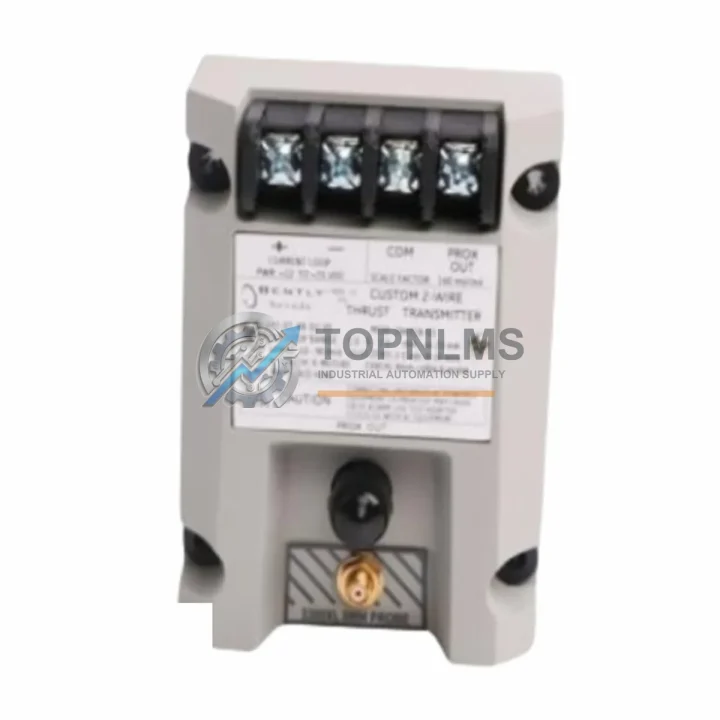

The Bently Nevada 991-01-XX-01-CN is an original thrust position transmitter engineered for the 3500 Series Machinery Protection System. Designed for continuous, high-reliability operation in rotating machinery environments — including turbines, compressors, pumps, and gearboxes — this transmitter converts eddy-current proximity probe signals into a 4–20 mA output that feeds directly into the 3500 rack’s monitoring and protection logic. Maintaining an on-hand spare of the 991-01-XX-01-CN is one of the most cost-effective decisions a maintenance team can make: a single unplanned shutdown on a critical rotating asset can cost tens of thousands of dollars per hour, while the transmitter itself represents a fraction of that exposure.

At TOPNLMS, every 991-01-XX-01-CN unit is sourced from verified supply channels, inspected upon receipt, and bench-tested against Bently Nevada factory specifications before dispatch. Each unit ships with a 12-month quality warranty and full traceability documentation, giving procurement and reliability engineers the confidence they need when approving a spare-parts purchase order.

Critical Technical Specs

Preventive Maintenance Strategy

The 991-01-XX-01-CN does not operate in isolation. It sits at the heart of a signal chain that begins at the proximity probe tip and ends at the 3500 rack’s relay output or DCS analog input. A disciplined preventive maintenance program should treat the entire chain as a single system. When scheduling a planned outage to inspect or replace the 991-01-XX-01-CN transmitter, maintenance teams should simultaneously verify the condition of the Bently Nevada 3300 XL 8mm proximity probe and its paired 3300 XL extension cable — probe tip wear and cable jacket degradation are the most common upstream causes of erratic thrust readings that are mistakenly attributed to transmitter failure.

Inside the 3500 rack, the 3500/20 rack interface module and the 3500/15 power supply module should be checked for capacitor aging and output voltage stability. A drifting rack power supply will introduce baseline errors across every channel, including thrust position. If the plant runs multiple 3500 racks, staggering power supply replacements on a 5–7 year cycle is a proven strategy for avoiding simultaneous failures during peak production seasons.

For the I/O side, the 3500/42M proximitor I/O module that interfaces with the 991-01-XX-01-CN should be inspected for terminal block corrosion and connector seating. In humid or coastal environments, terminal oxidation is a leading cause of intermittent channel faults. Pairing the transmitter replacement with a terminal block cleaning or a spare 3500 I/O module swap is a best practice that eliminates two potential failure points in a single maintenance window.

On the communication and integration side, if the 3500 rack feeds a DCS or safety system via a 3500/92 communication gateway module or a Modbus/TCP interface card, verify that the gateway firmware is current and that the analog output scaling matches the DCS historian configuration. Misconfigured scaling after a transmitter swap is a common source of nuisance alarms in the first 24 hours of post-maintenance operation.

Finally, for plants running legacy Bently Nevada 3300 series or 7200 series systems alongside newer 3500 racks, maintaining a cross-compatible spare inventory — including 7200 series proximitor/oscillator drivers and 3300 series signal conditioners — ensures that a single procurement order can cover multiple asset classes, reducing administrative overhead and improving emergency response time.

Strategic Replacement Solutions

The 991-01-XX-01-CN is a direct replacement for earlier Bently Nevada thrust transmitter variants used in legacy 3500 rack configurations. Plants that originally commissioned their machinery protection systems in the 1990s or early 2000s may be running transmitters that are approaching or have exceeded their recommended service life. Replacing aging units with original 991-01-XX-01-CN spares — rather than attempting field repairs or substituting with non-OEM alternatives — preserves the calibration traceability required by ISO 13373 and API 670 machinery protection standards.

Because the 991-01-XX-01-CN is a loop-powered 4–20 mA device, it integrates cleanly into existing DCS analog input cards without requiring signal conditioning hardware changes. This means a like-for-like swap can typically be completed within a single 4-hour maintenance window, with no PLC or DCS configuration changes required — a critical advantage when minimizing production downtime is the primary objective.

For plants managing end-of-life 3500 systems where Bently Nevada factory support has been reduced, stocking 2–3 units of the 991-01-XX-01-CN per critical asset provides a 3–5 year buffer against supply chain disruptions. TOPNLMS maintains ready stock and can fulfill urgent orders with same-day or next-business-day dispatch to most destinations, supporting both planned maintenance schedules and emergency breakdown scenarios.

Support FAQ

Q1: Is the 991-01-XX-01-CN compatible with all 3500 Series monitor modules?
The 991-01-XX-01-CN is designed for use with the 3500/42M, 3500/44M, and 3500/45 thrust and position monitor modules. Compatibility with other 3500 modules depends on the specific rack configuration and probe type. Please share your rack layout and probe model when inquiring, and our technical team will confirm compatibility before shipment.

Q2: What testing is performed before shipment?
Every unit undergoes bench testing against Bently Nevada factory electrical specifications, including output linearity verification across the full 4–20 mA range, supply voltage tolerance testing, and visual inspection for connector and housing integrity. A test report is available upon request for quality-critical procurement processes.

Q3: How should the 991-01-XX-01-CN be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10–35°C, <70% RH non-condensing). Avoid proximity to strong magnetic fields or high-voltage equipment. Inspect connector pins annually for oxidation. Properly stored units maintain full specification compliance for 5+ years.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with return shipping support and priority replacement dispatch to minimize asset downtime.
