GE Fanuc 80190-560-01-F Original Industrial Spare Series 90

Product Overview

GE Fanuc 80190-560-01-F Original Industrial Spare Series 90: System Stability & Maintenance Value

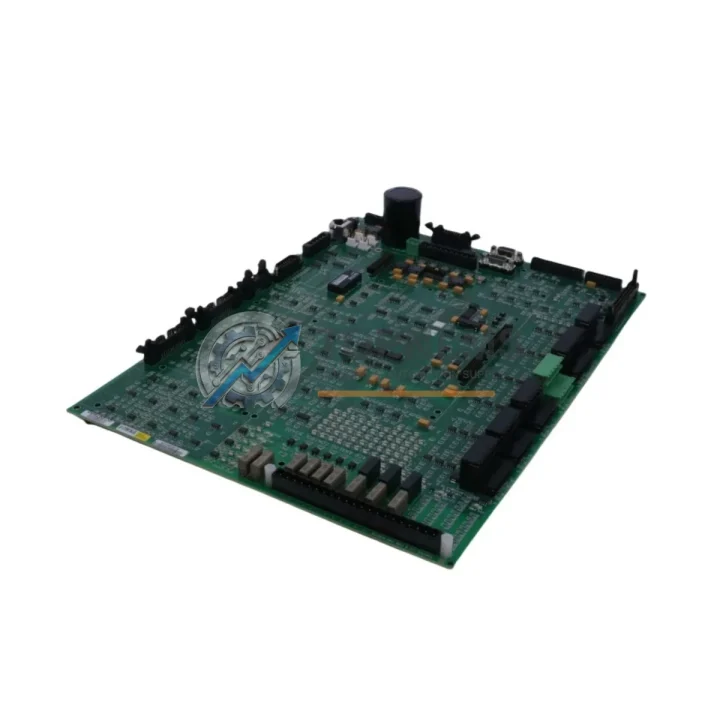

The GE Fanuc 80190-560-01-F is an original PC board module designed for the GE Fanuc Series 90 programmable logic controller platform — one of the most widely deployed PLC families in North American and global industrial automation. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a proactive spare parts inventory, this board delivers the exact form, fit, and function required to restore your control system to full operational status with minimal downtime.

Industrial facilities running Series 90-30 or Series 90-70 architectures depend on the continued availability of original replacement boards to maintain system integrity. Unlike third-party substitutes, the 80190-560-01-F is sourced as a genuine GE Fanuc component, ensuring full compatibility with existing rack configurations, I/O bus timing, and firmware revision levels already deployed in your control cabinet.

Critical Technical Specs

Preventive Maintenance Strategy

When a GE Fanuc 80190-560-01-F board is flagged for replacement during a planned or emergency shutdown, experienced maintenance engineers treat the event as an opportunity to audit the broader health of the control cabinet. A single board fault rarely occurs in isolation — thermal stress, vibration, and power quality issues that degrade one module typically affect adjacent components on the same rack or electrical circuit.

During the same maintenance window, it is standard practice to inspect the IC693PWR321 or IC693PWR330 Series 90 power supply modules, as power rail instability is a leading cause of premature board failure. Simultaneously, technicians should verify the condition of IC693MDL645 or IC693MDL740 discrete I/O modules sharing the same rack, since backplane communication errors can cascade from a degraded PC board into I/O scan faults.

For facilities running mixed analog and digital loops, the IC693ALG221 analog input module and IC693ALG390 analog output module should be included in the inspection checklist. Signal drift or calibration offset on these modules is often misdiagnosed as a field instrument fault when the root cause is a degraded backplane connection or aging module capacitors.

Communication integrity is equally critical. If your Series 90 system uses IC693CMM321 or IC693CMM311 communications modules for Ethernet or serial MODBUS connectivity, verify link status and error counters during the maintenance window. A board replacement that restores CPU function but leaves a communication module in a degraded state will result in a repeat call-out within weeks.

Terminal blocks and field wiring connections — particularly IC693ACC300-series terminal assemblies — should be torque-checked and inspected for oxidation or loose terminations whenever a rack module is removed and reseated. This step is frequently skipped under time pressure but is one of the highest-value preventive actions available to field technicians.

For facilities managing aging Series 90 installations, maintaining a small buffer stock of the IC693CPU340 or IC693CPU360 CPU modules alongside the 80190-560-01-F board significantly reduces mean time to repair (MTTR) during unplanned outages. Pairing these with a spare IC693CHS391 or IC693CHS397 rack chassis ensures that even a catastrophic rack failure can be recovered within a single shift rather than requiring a multi-day emergency procurement cycle.

Strategic Replacement Solutions

The GE Fanuc 80190-560-01-F addresses one of the most persistent challenges in industrial maintenance: keeping legacy Series 90 control systems operational well beyond the original product lifecycle. GE Fanuc’s Series 90 platform has been in service at thousands of facilities for over two decades, and while newer PAC systems offer expanded capabilities, the cost and risk of a full control system migration often cannot be justified against the remaining productive life of the installed equipment.

By sourcing an original replacement board rather than attempting a cross-brand substitution, maintenance teams preserve the validated configuration of their existing PLC program, I/O mapping, and HMI integration. There is no requirement to modify ladder logic, remap I/O addresses, or recertify the control system — the 80190-560-01-F slots directly into the existing rack and resumes operation under the existing program. This approach eliminates the engineering hours, validation testing, and production risk associated with platform migration.

For facilities managing multiple Series 90 installations across different production lines or plant areas, a centralized spare parts strategy — holding one or two 80190-560-01-F boards at the site level — provides insurance against supply chain delays that can extend emergency procurement lead times to four to eight weeks for obsolete or low-volume industrial components. The 12-month warranty on each unit ensures that spare stock held in a controlled environment remains covered from the date of activation, not the date of purchase.

Facilities transitioning toward newer GE Automation (now Emerson) PACSystems RX3i platforms can use the 80190-560-01-F as a bridge solution, maintaining Series 90 uptime while migration projects are planned and budgeted — avoiding the forced emergency migration scenario that results from an unplanned board failure with no available replacement.

Support FAQ

Q1: Is the 80190-560-01-F compatible with both Series 90-30 and Series 90-70 racks?
Compatibility depends on the specific rack slot and system configuration. The 80190-560-01-F is a Series 90 platform board; please verify your rack model and slot assignment against your system documentation or contact us at [email protected] with your rack part number for confirmation before ordering.

Q2: What pre-shipment testing is performed on this board?
Each unit undergoes functional testing prior to dispatch to verify basic operational integrity. Units are inspected for physical damage, connector condition, and component integrity. A 12-month warranty is provided from the date of purchase, covering manufacturing defects and functional failure under normal operating conditions.

Q3: How should this board be stored if purchased as a spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or in environments with high particulate contamination. The 12-month warranty period begins from the date of purchase.

Q4: What is the typical lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days. International shipments are available with full tracking. For urgent requirements or bulk procurement inquiries, contact [email protected] or call +86 18359293191 to confirm availability and expedited shipping options.
