Bently Nevada 74712-06-10-02-00 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 74712-06-10-02-00 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

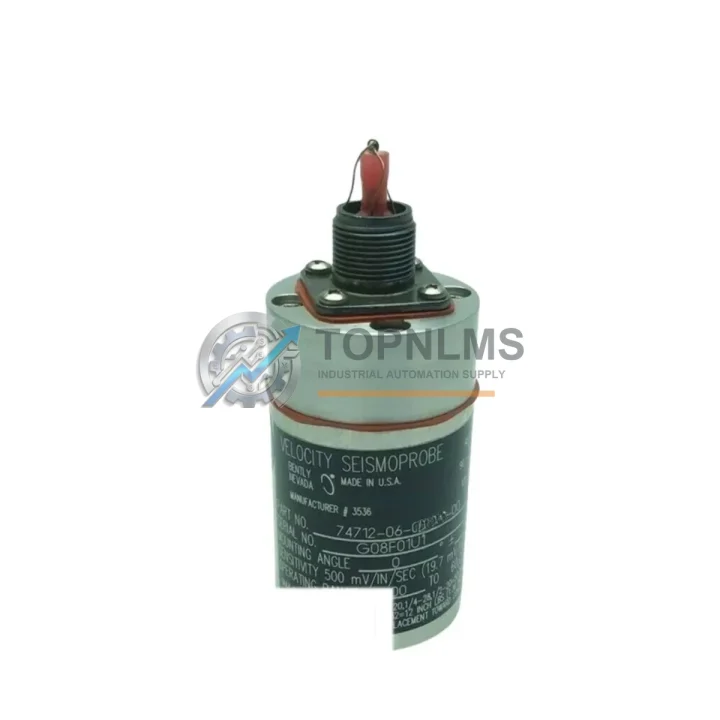

The Bently Nevada 74712-06-10-02-00 is a high-temperature proximity transducer engineered for the 3300 XL Series continuous machinery protection system — one of the most widely deployed vibration monitoring platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this transducer represents a direct, drop-in replacement that restores full system integrity without requiring reconfiguration, recalibration of the monitor rack, or software changes.

In petrochemical plants, power generation facilities, compressor stations, and heavy manufacturing environments, the 3300 XL system is trusted to protect turbines, compressors, pumps, and motors from catastrophic vibration events. The 74712-06-10-02-00 variant is specifically rated for high-temperature installation environments, making it the correct choice for applications where ambient or process temperatures exceed the tolerance of standard transducers. Selecting the wrong transducer — even one from the same series — can introduce measurement drift, false trips, or undetected machinery faults. Sourcing the exact OEM part number eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy

When a 74712-06-10-02-00 transducer is flagged for replacement during a scheduled outage or condition-based maintenance review, experienced reliability engineers treat the event as a trigger for a broader inspection of the entire vibration monitoring loop. A single transducer failure rarely occurs in isolation — the extension cable (typically a 330130 series armored cable) that connects the transducer to the proximitor driver is subject to the same thermal and mechanical stress cycles and should be inspected or replaced simultaneously. The proximitor driver itself, such as the 3300 XL 8 mm proximitor (part series 330180), converts the transducer’s raw signal into the -18 VDC output read by the monitor rack and is a logical companion spare to hold in inventory.

Within the 3300 XL monitor rack, the individual monitor modules — including the 3300/16 Dual Vibration Monitor and the 3300/55 Dual Thrust Position Monitor — should be verified for correct gap voltage readings after any transducer swap. If gap voltage is outside the -10 to -18 VDC linear range, the issue may lie in the proximitor or the monitor card rather than the transducer itself. Keeping a spare 3300/16 or 3300/55 monitor module on the shelf dramatically reduces diagnostic time during a live shutdown.

The rack power supply module feeding the 3300 XL system is another component that maintenance teams frequently overlook until it fails. A degraded power supply can cause erratic readings across all channels simultaneously, mimicking multiple transducer failures. Stocking a spare power supply module for the 3300 rack is a low-cost insurance policy against a high-consequence event. Similarly, the I/O terminal blocks and field wiring connectors at the rear of the rack should be inspected for corrosion, loose terminations, and insulation degradation — particularly in high-humidity or high-vibration environments.

For facilities running mixed Bently Nevada and third-party monitoring infrastructure, signal isolators and barriers between the 3300 XL output and the plant DCS or safety instrumented system (SIS) input cards are critical checkpoints. A faulty isolator can corrupt the vibration signal before it ever reaches the control room historian, creating blind spots in machinery health data. Reviewing the condition of these isolators during the same outage window as a transducer replacement is efficient and cost-effective.

Finally, if the asset being monitored is a high-speed turbine or compressor with both radial and axial measurement requirements, the 74712-06-10-02-00 replacement is an ideal moment to audit the full transducer complement on that machine — including any paired keyphasor transducers used for phase reference and speed measurement. Keyphasor probes from the 3300 XL family share the same installation and calibration ecosystem and benefit from the same preventive replacement logic.

Strategic Replacement Solutions

The 74712-06-10-02-00 is a direct OEM replacement for aging transducers installed during original equipment commissioning, often a decade or more ago. Unlike generic aftermarket alternatives, this part maintains the factory-calibrated sensitivity scale factor (typically 200 mV/mil or 7.87 V/mm) that the 3300 XL monitor rack expects. Substituting a transducer with a different scale factor without reconfiguring the monitor will produce incorrect vibration amplitude readings — a safety-critical error in any API 670-compliant protection system.

For plants managing end-of-life 3300 XL systems where the original OEM support has been discontinued, sourcing original spare parts from authorized distributors and specialist industrial suppliers is the most cost-effective path to extending system life by 5–10 years without a full platform migration. A full migration to the Bently Nevada 3500 Series, while offering enhanced diagnostics and Ethernet connectivity, represents a significant capital expenditure and extended outage window. Maintaining a curated inventory of 3300 XL spares — transducers, proximitors, monitor modules, and power supplies — defers that investment while keeping the protection system fully operational and compliant.

Each unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch. Test records are available upon request. Units are packaged to IEC 60068 transport standards to prevent electrostatic discharge and mechanical damage during international freight.

Support FAQ

Q1: Is the 74712-06-10-02-00 a direct drop-in replacement for my existing 3300 XL transducer?
Yes. Provided your existing installation uses the same 8 mm tip diameter, 10-32 UNF thread, and 6 ft cable configuration, the 74712-06-10-02-00 is a direct mechanical and electrical replacement. No monitor rack reconfiguration is required. Verify the gap voltage after installation to confirm correct seating and target material compatibility.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified temperature and environmental ratings. Warranty claims are processed with return shipping coordination and replacement dispatch within 5 business days of fault confirmation.

Q3: How do I verify compatibility with my specific 3300 XL monitor module before ordering?
Confirm the monitor module part number on your rack (e.g., 3300/16, 3300/55, 3300/46M) and cross-reference with the Bently Nevada 3300 XL system documentation. The 74712-06-10-02-00 is compatible with all standard 3300 XL monitor modules that accept 8 mm eddy-current transducer inputs. If you are uncertain, contact us with your rack configuration and we will confirm compatibility before shipment.

Q4: What is the recommended inventory strategy for this transducer in a critical rotating equipment application?
API 670 and general reliability best practices recommend holding a minimum of one spare transducer per monitored measurement plane for critical machines (API Category I and II). For facilities with multiple identical assets, a pooled spare strategy — typically one spare per three to five installed units — balances inventory cost against availability risk. Given the lead time variability for OEM parts, maintaining at least one unit on-site at all times is strongly advised for any machine classified as critical or essential.
