Siemens 6SE7090-0XX85-1DA0 Replacement for SIMOVERT MASTERDRIVES

Product Overview

Siemens 6SE7090-0XX85-1DA0 Replacement for SIMOVERT MASTERDRIVES: Smooth Transition & Legacy System Compatibility

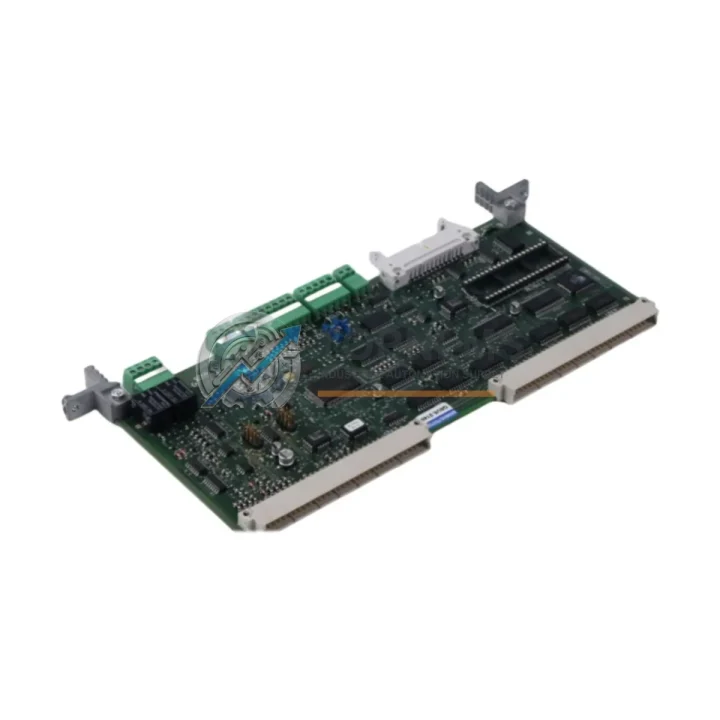

The Siemens 6SE7090-0XX85-1DA0 (cross-reference: C98043-A1680-L1) is a Power Module within the SIMOVERT MASTERDRIVES AC variable-speed drive platform — a series that has served as the backbone of industrial drive applications across heavy manufacturing, material handling, paper mills, steel plants, and process automation for decades. As Siemens progressively phases out legacy MASTERDRIVES components in favor of the SINAMICS drive family, plant engineers and maintenance teams face the critical challenge of sourcing a reliable, drop-in compatible replacement that minimizes engineering rework, avoids extended downtime, and preserves existing control architecture investments.

TOPNLMS maintains verified stock of the 6SE7090-0XX85-1DA0 / C98043-A1680-L1 Power Module, fully tested and ready for immediate dispatch from our Xiamen warehouse. Each unit undergoes pre-shipment functional verification to ensure it meets original Siemens factory specifications before leaving our facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMOVERT MASTERDRIVES module replacement rarely involves a single component in isolation. In practice, field engineers replacing the 6SE7090-0XX85-1DA0 Power Module will typically audit the surrounding drive system to ensure all interdependent components are serviceable and correctly configured for the upgraded unit.

The SIMOVERT MASTERDRIVES platform uses a modular architecture where the Power Module works in conjunction with a Control Unit (CU) — commonly the 6SE7090-0XX84-0KA0 or similar CU variants — which handles closed-loop speed and torque regulation, parameter management, and fault diagnostics. If the CU firmware version is outdated or the CU itself is approaching end-of-life, it is advisable to evaluate a simultaneous CU replacement to avoid mismatched firmware compatibility issues post-swap.

Communication continuity is another key consideration. Many MASTERDRIVES installations rely on a Communication Board (CB) such as the 6SE7090-0XX84-2FK0 (CBP2) for PROFIBUS-DP connectivity to a Siemens S7-300 or S7-400 PLC. During the module replacement, the existing CBP2 board can typically be transferred directly to the replacement Power Module without reconfiguration, preserving the PROFIBUS node address and GSD file settings already loaded in the PLC hardware configuration — whether managed in STEP 7 or TIA Portal.

For installations where the drive communicates via the USS protocol over RS-485 to a legacy S5-series controller or a third-party SCADA system, the replacement module maintains the same USS parameter structure. Drive parameters (P-numbers) remain consistent, meaning no PLC program changes are required beyond a parameter restore from backup.

On the power distribution side, the drive’s input reactor (line choke) and output filter — often a Siemens 4EP3 series line reactor or an external EMC filter — remain fully compatible and do not require replacement during a like-for-like module swap. Similarly, the brake chopper module and associated braking resistor wiring remain unchanged, preserving the existing dynamic braking configuration without additional engineering effort.

For sites undertaking a broader migration from MASTERDRIVES to the SINAMICS G120 or SINAMICS S120 platform, the 6SE7090-0XX85-1DA0 serves as an ideal interim solution — maintaining production continuity while the engineering team prepares the SINAMICS hardware configuration, motor data identification runs, and updated PLC function blocks. The SINAMICS S120 Control Unit CU320-2 and associated Motor Modules (6SL3120 series) represent the long-term migration path, but the MASTERDRIVES replacement ensures zero unplanned downtime during the transition planning phase.

Additional components commonly assessed during a MASTERDRIVES retrofit include the OP1S operator panel for local parameter access and commissioning, encoder feedback modules (SBP/SBR boards) for closed-loop vector control applications, and terminal expansion boards (TB30) for sites with extensive analog and digital I/O wiring. All of these peripheral boards are retained and reused when performing a Power Module swap, significantly reducing retrofit labor time and overall project cost.

For sites with a Siemens S7-1500 PLC already managing newer production lines via PROFINET, the MASTERDRIVES replacement allows the legacy drive segment to remain on PROFIBUS-DP while the broader plant network transitions — a common hybrid architecture that avoids a full-plant cutover and reduces migration risk.

Retrofit Guidance FAQ

Q: Do I need to rewire the control terminals when replacing the 6SE7090-0XX85-1DA0?
A: No. The terminal block layout on the replacement Power Module is identical to the original. All existing control wiring — analog setpoint inputs, digital enable signals, fault relay outputs — can be reconnected directly without modification.

Q: Will my existing PROFIBUS-DP configuration still work after the swap?
A: Yes. Transfer the existing CBP2 Communication Board from the old module to the replacement unit. The PROFIBUS node address and GSD-based hardware configuration in your S7 PLC remain valid. No changes to the PLC program or hardware configuration are required.

Q: How do I restore drive parameters after the module swap?
A: Use the OP1S operator panel or DriveMonitor software to upload the parameter backup (P0971 upload function) taken from the original unit. If no backup exists, TOPNLMS can provide the standard factory parameter set for this module type as a starting baseline for commissioning.

Q: Is the physical footprint identical for control cabinet installation?
A: Yes. The 6SE7090-0XX85-1DA0 fits the same MASTERDRIVES chassis slot and uses the same DIN rail or panel mounting points. No control cabinet modifications, additional brackets, or cable extensions are required.

Q: What if my system uses a legacy S5 PLC with USS communication over RS-485?
A: The replacement module supports the same USS parameter set. Drive P-numbers are unchanged, so your S5 communication blocks (FC or FB) require no modification. The RS-485 wiring and termination resistors remain as-is.

Q: Can this module be used as a long-term critical spare?
A: Yes. Units are stored in ESD-safe, climate-controlled conditions. Each unit ships with a 12-month warranty and a pre-shipment test report, making it suitable for critical spare inventory programs and insurance stock strategies.

Q: Is this module compatible with encoder feedback for closed-loop vector control?
A: Yes. The existing SBP or SBR encoder feedback board installed in the original module can be transferred directly to the replacement unit. Encoder wiring and pulse settings remain unchanged.

Warranty Assurance

Every 6SE7090-0XX85-1DA0 / C98043-A1680-L1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes functional power-on testing, visual inspection for component integrity, and verification of firmware and hardware revision markings against original Siemens manufacturing specifications.

In the event of a warranty claim, TOPNLMS provides a direct replacement dispatch within 3 business days of fault confirmation, with no requirement to return the defective unit before the replacement is shipped for critical production environments. Our after-sales response team is reachable via email and phone to support on-site troubleshooting, parameter restoration guidance, and compatibility verification prior to installation.

For procurement teams managing critical spare inventories, TOPNLMS offers batch purchasing with staggered delivery scheduling, consolidated packing lists, and full export documentation — including commercial invoice, packing list, and Certificate of Origin — suitable for customs clearance in major industrial markets worldwide.

Stock availability is updated in real time. Contact us directly for lead time confirmation on volume orders or expedited shipment requirements.
