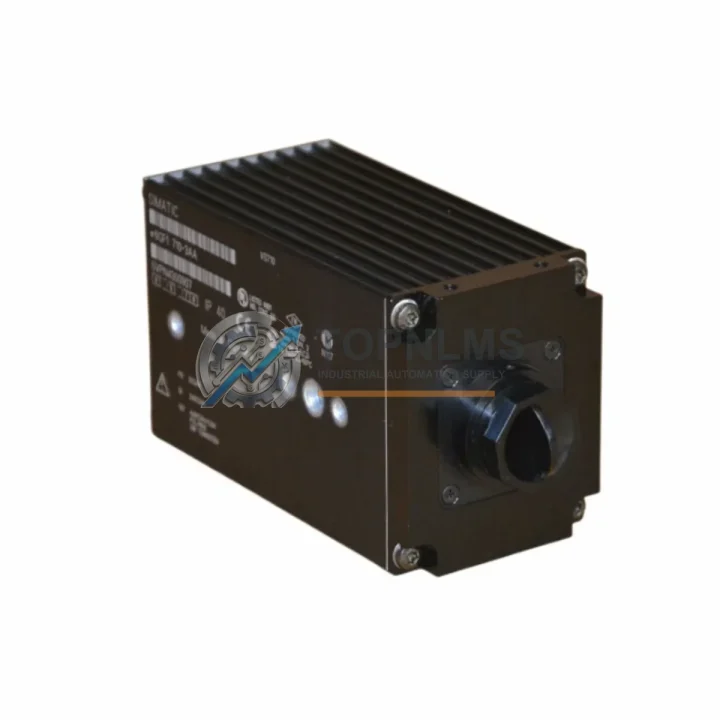

Siemens 6GF1710-3AA Replacement Solution for SIMATIC VS710: Seamless Transition & Legacy System Compatibility

Upgrading or replacing a Siemens SIMATIC VS710 compact vision sensor — part number 6GF1710-3AA — demands more than a simple swap. Industrial facilities running legacy machine-vision inspection lines, assembly verification stations, or quality-control cells built around the VS710 platform face a critical challenge: maintaining production continuity while transitioning to a modern, supportable sensor architecture. This replacement solution is engineered specifically for that migration path, preserving existing wiring infrastructure, communication protocols, and control-cabinet footprint wherever possible.

The 6GF1710-3AA belongs to Siemens’ SIMATIC VS710 compact vision sensor family — a fixed-focus, integrated-illumination device widely deployed in automotive body-in-white lines, electronics assembly, pharmaceutical packaging, and food-and-beverage date-code verification. As Siemens has transitioned its machine-vision portfolio toward the SIMATIC MV series and third-party smart-camera integrations via PROFINET, sourcing genuine or compatible 6GF1710-3AA units has become increasingly difficult. Our stock provides a direct, tested replacement that bridges the gap between your existing system and a planned long-term upgrade.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VS710 replacement rarely involves the sensor alone. In most retrofit projects, the surrounding system components must be verified or simultaneously upgraded to ensure stable operation. When migrating from a legacy SIMATIC VS710 inspection cell, engineers typically audit the SIMATIC S7-300 CPU (e.g., CPU 315-2 DP or CPU 317-2 PN/DP) that hosts the vision trigger logic, confirming that the existing Ethernet or RS-232 communication driver remains compatible with the replacement sensor’s firmware. Where the S7-300 rack is also approaching end-of-life, a parallel migration to a SIMATIC S7-1500 CPU with a CM 1542-1 PROFINET communication module provides a future-proof architecture without requiring a full line shutdown.

On the field-wiring side, the VS710’s M12 connector pinout is preserved in this replacement unit, meaning existing M12 sensor cables and terminal block assemblies in the control cabinet can be reused without modification. If the cabinet uses a SIMATIC ET 200SP distributed I/O station to relay trigger and result signals, no hardware changes are needed at the remote I/O level. For installations where signal integrity over longer cable runs is a concern, adding a signal isolator module between the sensor output and the PLC digital input card eliminates ground-loop interference that can cause false trigger events.

Lighting is another common migration consideration. The VS710’s integrated illumination is matched to its fixed focal length; if the replacement is installed in an application where ambient light conditions have changed since the original commissioning, supplementing with an external ring-light controller and LED ring light (24 V DC, strobe-capable) restores inspection reliability without modifying the sensor’s internal settings. Similarly, if the application requires a wider field of view than the original VS710 optics provided, a SIMATIC MV440 HR smart camera with interchangeable C-mount lenses offers a direct upgrade path on the same PROFINET segment.

For programming and re-commissioning, a standard Ethernet patch cable and a PC running SIMATIC VS710 Setup Tool (or the compatible SIMATIC MV Setup Tool for cross-series migration) are sufficient to re-teach inspection jobs. No proprietary programming cable or dongle is required. If the host SCADA or MES system communicates with the vision sensor via OPC UA or a custom TCP/IP socket interface, the replacement unit’s firmware supports the same communication structure, preserving data-format compatibility at the supervisory level.

Retrofit Guidance FAQ

Q: Do I need to rewire the sensor connector?
No. The replacement 6GF1710-3AA uses the same M12 connector pinout as the original VS710. Existing cables can be reconnected directly.

Q: Will my existing S7-300 PLC program require modification?
In most cases, no. The digital I/O interface (trigger input, result outputs, ready signal) is pin- and logic-compatible. Re-teaching the inspection job via the Setup Tool is required, but the PLC function block does not need to be rewritten.

Q: Is the communication protocol compatible with my current Ethernet driver?
Yes. The replacement unit supports the same TCP/IP socket communication protocol used by the original VS710, including the standard result-string format. No driver update is required on the PLC or SCADA side.

Q: Does the sensor fit in the existing mounting bracket?
Yes. The housing dimensions and mounting-hole pattern are identical to the original VS710 compact body. No mechanical modifications to the machine fixture are needed.

Q: What is the lead time and how is the unit tested before shipment?
Units ship from stock within 1–3 business days. Each unit undergoes power-on functional verification and communication interface testing before packaging. A test report is available upon request.

Q: Can this replacement be used as a long-term spare?
Yes. We recommend holding at least one spare unit per production line to minimize unplanned downtime. Bulk pricing is available for multi-unit orders.

Warranty Assurance

Every Siemens 6GF1710-3AA replacement unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or full refund at our discretion. Prior to dispatch, each unit is subjected to a standardized outgoing inspection protocol: power-supply verification at 24 V DC, digital I/O continuity check, Ethernet communication handshake test, and visual inspection of the M12 connector and housing integrity.

Our after-sales response time is within 24 hours on business days. For urgent production-line failures, we offer expedited shipping options to minimize downtime. Replacement units for warranty claims are dispatched within 2 business days of fault confirmation. We maintain a dedicated stock buffer for high-demand legacy part numbers, including the 6GF1710-3AA, to ensure consistent availability for repeat procurement and emergency sourcing requirements.

For B2B customers requiring documentation, we provide a commercial invoice, packing list, and certificate of conformity with every shipment. Long-term supply agreements and consignment stock arrangements are available for OEM integrators and MRO distributors.
