Siemens 6ES7972-4AA02-0XA0 Replacement for S7-300: Seamless PROFIBUS Migration & Upgrade Solution

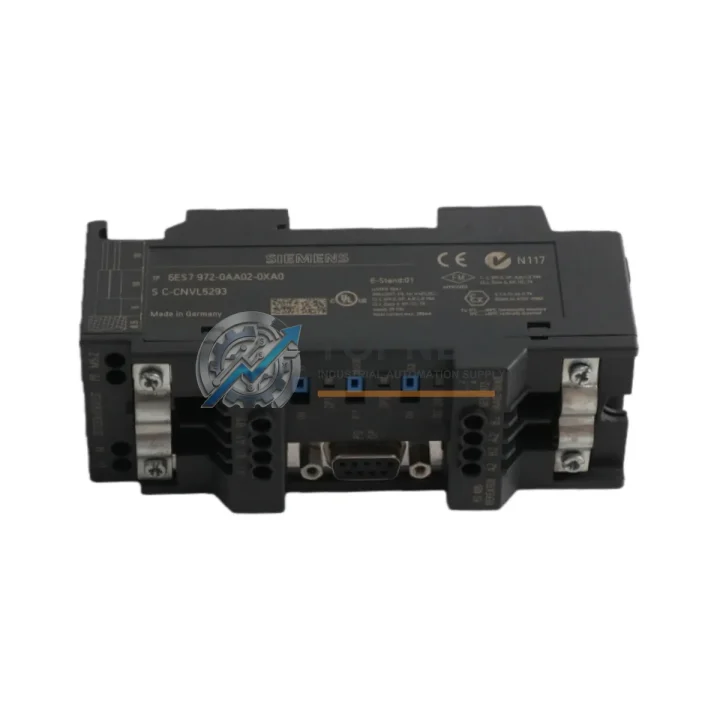

The Siemens 6ES7972-4AA02-0XA0 is a PROFIBUS Power Rail Booster designed for the SIMATIC S7-300 series, providing signal amplification and bus extension capability across distributed I/O segments. As legacy S7-300 installations approach end-of-life or face discontinued spare parts, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, communication topology, and control logic without triggering a full system overhaul.

TOPNLMS supplies the 6ES7972-4AA02-0XA0 as a tested, ready-to-ship replacement module sourced from verified industrial channels. Each unit undergoes functional verification prior to dispatch, ensuring compatibility with your existing PROFIBUS DP network and S7-300 rack architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

When migrating an S7-300-based control system or replacing a failed 6ES7972-4AA02-0XA0, the PROFIBUS segment rarely operates in isolation. A complete and reliable upgrade typically involves coordinating several interdependent components across the control cabinet and field bus topology.

On the controller side, the CPU module — such as a 6ES7315-2AH14-0AB0 (CPU 315-2 DP) or a 6ES7317-2EK14-0AB0 (CPU 317-2 DP/PN) — serves as the PROFIBUS master. These CPUs communicate with distributed I/O stations via the PROFIBUS DP interface, and the Power Rail Booster extends the physical reach of that bus. If the CPU itself is being upgraded as part of a broader modernization effort, the booster module must be re-verified against the new CPU’s DP port configuration and baud rate settings.

The power supply module — typically a 6ES7307-1EA01-0AA0 (PS 307, 5A) or 6ES7307-1KA02-0AA0 (PS 307, 10A) — feeds the 24 V DC rail that powers the 6ES7972-4AA02-0XA0. When replacing the booster in an aging cabinet, it is advisable to inspect the power supply module for capacitor aging and output voltage stability, as degraded rail voltage is a common root cause of intermittent PROFIBUS communication faults.

At the field level, remote I/O stations connected via PROFIBUS DP — such as ET 200M distributed I/O racks using 6ES7153-1AA03-0XB0 interface modules, or ET 200S stations with 6ES7151-1AA06-0AB0 interface modules — depend on stable bus signal integrity. The Power Rail Booster regenerates the PROFIBUS signal between segments, ensuring that these remote stations maintain reliable cyclic data exchange with the CPU even over long cable runs or in electrically noisy environments.

For installations where the PROFIBUS network also interfaces with drives or motion systems, frequency inverters such as the 6SL3210-1KE21-3AF1 (SINAMICS G120) equipped with a PROFIBUS communication board (CBE20 or similar) are common participants on the same bus segment. The booster ensures that drive parameter data and control words are transmitted without signal degradation, which is critical for coordinated motion sequences in conveyor, pump, or compressor applications.

Programming and diagnostic access during commissioning or fault-finding typically requires a 6ES7972-0CB20-0XA0 PROFIBUS PC adapter (USB) or an MPI/PROFIBUS cable, allowing STEP 7 or TIA Portal to connect to the bus for online monitoring, forcing I/O, and verifying the booster’s transparent operation. These tools are essential when validating the replacement module in a live system without interrupting production.

In control cabinets where signal isolation is required — particularly in environments with variable-frequency drives, welding equipment, or high-voltage switchgear — signal isolators or PROFIBUS optical link modules (OLMs) such as the 6GK1502-3CB10 may be installed in conjunction with the Power Rail Booster to provide galvanic isolation and further extend bus reach via fiber optic segments.

Finally, terminal blocks and bus connectors — including 6ES7972-0BA52-0XA0 PROFIBUS connectors with integrated termination resistors — must be inspected and replaced if oxidized or mechanically damaged, as poor connector contact is a leading cause of bus faults that are often misdiagnosed as booster module failure.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7972-4AA02-0XA0 without modifying my STEP 7 hardware configuration?
A: Yes. The 6ES7972-4AA02-0XA0 is a transparent bus booster — it does not appear as a node in the PROFIBUS DP network and requires no hardware configuration entry in STEP 7 or TIA Portal. Replacement is purely physical: power down the segment, swap the module, restore power, and verify bus communication with a PROFIBUS diagnostic tool or the CPU’s diagnostic buffer.

Q: Is the wiring compatible with my existing PROFIBUS Type A cable?
A: Yes. The module uses standard 9-pin Sub-D connectors compatible with all PROFIBUS Type A shielded twisted-pair cables. No rewiring is required. Ensure the cable shield is properly terminated at both ends and that termination resistors are active only at the physical ends of each bus segment.

Q: What baud rates does the 6ES7972-4AA02-0XA0 support?
A: The module supports all standard PROFIBUS DP baud rates from 9.6 kbps up to 12 Mbps. Baud rate is detected automatically — no DIP switch or manual configuration is needed.

Q: Can this booster be used in a mixed S7-300 / ET 200M topology?
A: Yes. The booster is fully compatible with mixed topologies including S7-300 CPUs as masters and ET 200M, ET 200S, or ET 200eco stations as slaves. It regenerates the bus signal between segments without affecting the logical network structure.

Q: What is the physical space requirement in the control cabinet?
A: The module mounts directly on the S7-300 Power Rail and occupies a standard single-slot width. No additional DIN rail space is required beyond the existing rack footprint.

Q: How do I verify the replacement module is functioning correctly after installation?
A: Use STEP 7 (HW Config → Online → Module Status) or TIA Portal’s device diagnostics to confirm all PROFIBUS slaves are communicating. A PROFIBUS bus monitor or the CPU’s diagnostic buffer will show any residual bus errors. The booster itself has no LED indicators — correct operation is confirmed by restored slave communication.

Warranty Assurance

Every 6ES7972-4AA02-0XA0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional verification process including power-on testing and PROFIBUS signal integrity checks to confirm the unit meets OEM specifications.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize your system downtime. Our after-sales response team is reachable via email and phone for technical clarification, return authorization, and expedited re-shipment coordination.

We maintain bonded inventory of high-demand S7-300 series components at our Xiamen facility, enabling same-day or next-business-day dispatch for in-stock items. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared as standard for all international shipments.

For procurement teams requiring batch quantities, incoming inspection reports, or third-party test certificates, please contact our sales team directly to discuss inspection arrangements prior to shipment.
