Siemens 6ES7972-0AB01-0XA0 Original Industrial Spare S7 Compatible

Product Overview

Siemens 6ES7972-0AB01-0XA0 Original Industrial Spare S7 Compatible: System Stability and Industrial Spare Maintenance Value

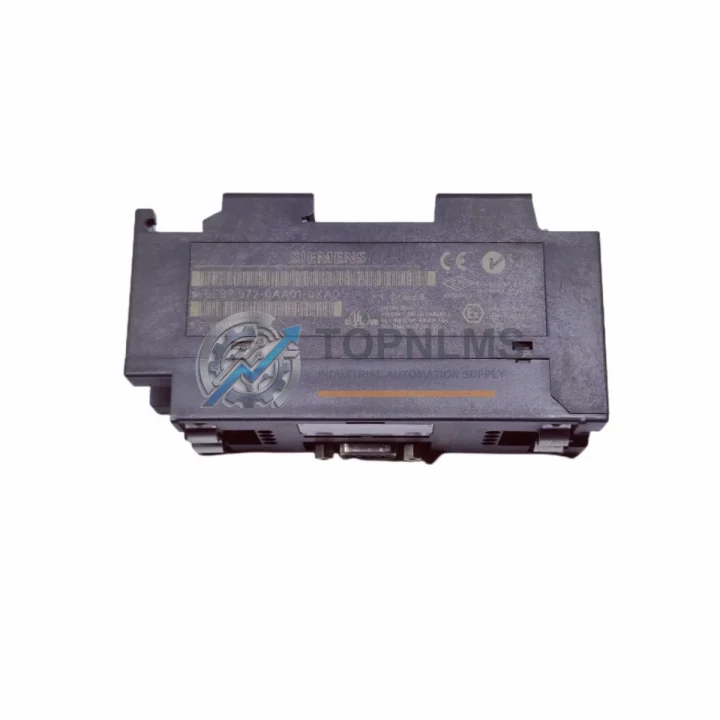

The Siemens 6ES7972-0AB01-0XA0 PROFIBUS DP Diagnose-Repeater is a mission-critical network component within the SIMATIC S7 automation ecosystem. Designed to extend and diagnose PROFIBUS DP segments, this module enables plant engineers and maintenance teams to maintain reliable, high-speed communication across distributed control architectures — even in electrically noisy industrial environments. Whether you are managing a continuous process line, a discrete manufacturing cell, or a legacy S7-300/S7-400 control cabinet, having a verified original spare of the 6ES7972-0AB01-0XA0 on hand is a cornerstone of any sound preventive maintenance strategy.

In modern industrial facilities, unplanned downtime caused by network communication failures can cost thousands of dollars per hour. The PROFIBUS DP Diagnose-Repeater plays a dual role: it amplifies the PROFIBUS signal to extend segment length beyond the standard 1,200-metre limit, and it provides real-time diagnostic data on bus topology, cable faults, and device status — allowing maintenance personnel to isolate faults rapidly without shutting down the entire line. Stocking the 6ES7972-0AB01-0XA0 as a ready-to-deploy replacement eliminates the lead-time risk associated with sourcing critical network infrastructure components during an emergency shutdown.

Critical Technical Specs Table

Preventive Maintenance Strategy

A PROFIBUS DP network is only as reliable as its weakest link. When scheduling a planned maintenance window or responding to a bus communication alarm, the 6ES7972-0AB01-0XA0 Diagnose-Repeater should be inspected alongside the broader network and control cabinet infrastructure. Experienced maintenance engineers know that a degraded repeater rarely fails in isolation — bus termination resistors, PROFIBUS DP cables (such as the Siemens 6XV1830-0EH10 or equivalent shielded twisted-pair cable), and connector plugs (e.g., 6ES7972-0BB52-0XA0 bus connectors) are common co-failure points that should be checked and replaced as a set.

Within the control cabinet, the 24 V DC power supply feeding the repeater — typically a SITOP PSU100S or equivalent 6EP1334-2BA20 power supply module — should be load-tested and its output voltage verified under full bus load. A marginal power supply is a frequent root cause of intermittent PROFIBUS communication errors that are often misdiagnosed as repeater failure. Similarly, the CP 342-5 or CP 443-5 Extended communication processors used to interface the S7-300/400 CPU with the PROFIBUS DP network should be inspected for firmware currency and connector integrity.

For facilities running mixed I/O architectures, ET 200M distributed I/O stations (IM 153-2 interface modules) and ET 200S stations connected via PROFIBUS DP are directly dependent on stable repeater operation for their cyclic data exchange. A planned inspection should include verifying the DP address settings on all slave devices, checking the bus termination at both ends of each segment, and reviewing the diagnostic buffer in STEP 7 or TIA Portal for any recorded communication faults. If the system includes Siemens S7-300 CPU modules such as the CPU 315-2 DP or CPU 317-2 DP, their integrated DP master interfaces should also be tested for correct baud rate negotiation with the repeater.

For older installations where the PROFIBUS segment also carries data from Siemens SINAMICS or MICROMASTER 440 variable frequency drives, the repeater’s signal integrity is especially critical — drive parameter data and speed references transmitted over PROFIBUS must arrive without cyclic errors to prevent nuisance trips. Stocking a spare 6ES7972-0AB01-0XA0 alongside spare DP bus connectors, a tested SITOP power supply, and at least one spare IM 153-2 interface module provides a comprehensive first-response kit that can restore most PROFIBUS-related outages within a single shift.

Strategic Replacement Solutions

The 6ES7972-0AB01-0XA0 is a direct replacement for earlier Siemens PROFIBUS repeater variants used in legacy S7-300 and S7-400 installations that may have been in continuous service for 10–20 years. As original equipment ages, diagnostic accuracy degrades, bus termination impedance drifts, and the risk of intermittent communication faults increases — often manifesting as sporadic OB86 (rack failure) or OB122 (I/O access error) interrupts in the CPU diagnostic buffer.

Replacing an aging repeater with a new 6ES7972-0AB01-0XA0 restores full diagnostic visibility into the PROFIBUS segment topology, enabling the maintenance team to use STEP 7’s hardware diagnostics or TIA Portal’s network view to monitor bus health in real time. Because the module is fully backward-compatible with existing PROFIBUS DP wiring and device configurations, replacement requires no changes to the PLC program, no re-addressing of slave devices, and no modification to the bus topology — making it one of the lowest-risk, highest-impact maintenance investments available for aging SIMATIC S7 systems.

For plants considering a phased migration from S7-300/400 to S7-1500 or ET 200SP-based architectures, the 6ES7972-0AB01-0XA0 provides a cost-effective bridge solution: it maintains the existing PROFIBUS DP infrastructure while the migration is planned and budgeted, avoiding the capital expenditure of a full network overhaul during the transition period. This approach preserves system uptime, protects existing wiring investments, and gives engineering teams the time needed to validate new configurations before cutover.

Support FAQ

Q1: Is the 6ES7972-0AB01-0XA0 compatible with both S7-300 and S7-400 PROFIBUS DP systems?
Yes. The 6ES7972-0AB01-0XA0 is fully compatible with all SIMATIC S7-300 and S7-400 PROFIBUS DP master and slave configurations. It operates transparently on the bus at all standard PROFIBUS baud rates up to 12 Mbit/s and requires no special configuration in STEP 7 or TIA Portal beyond standard hardware detection.

Q2: How is the unit tested before shipment, and what does the 12-month warranty cover?
Every 6ES7972-0AB01-0XA0 unit is powered on and functionally tested prior to dispatch, including verification of supply voltage acceptance, PROFIBUS signal pass-through, and diagnostic LED operation. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded — contact [email protected] for warranty claims.

Q3: What is the recommended inventory strategy for this module in a multi-line plant?
For facilities with 3 or more PROFIBUS DP segments, we recommend maintaining a minimum of one spare 6ES7972-0AB01-0XA0 per 5 installed repeaters, with at least one unit always available in the on-site spare parts store. Given the module’s role as a single point of failure for an entire bus segment, the cost of a spare unit is negligible compared to the cost of a single unplanned production stoppage. Bulk procurement pricing is available — contact our sales team for volume quotations.

Q4: Can this repeater be used to replace a failed unit without modifying the existing PROFIBUS configuration?
Yes. The 6ES7972-0AB01-0XA0 is a plug-and-play replacement for any failed unit of the same part number. No changes to the STEP 7 or TIA Portal hardware configuration are required. Simply power down the affected segment, swap the module, reconnect the PROFIBUS DP cables and 24 V DC supply, and restore power. The CPU will automatically re-establish communication with all slave devices on the segment within one bus cycle.
