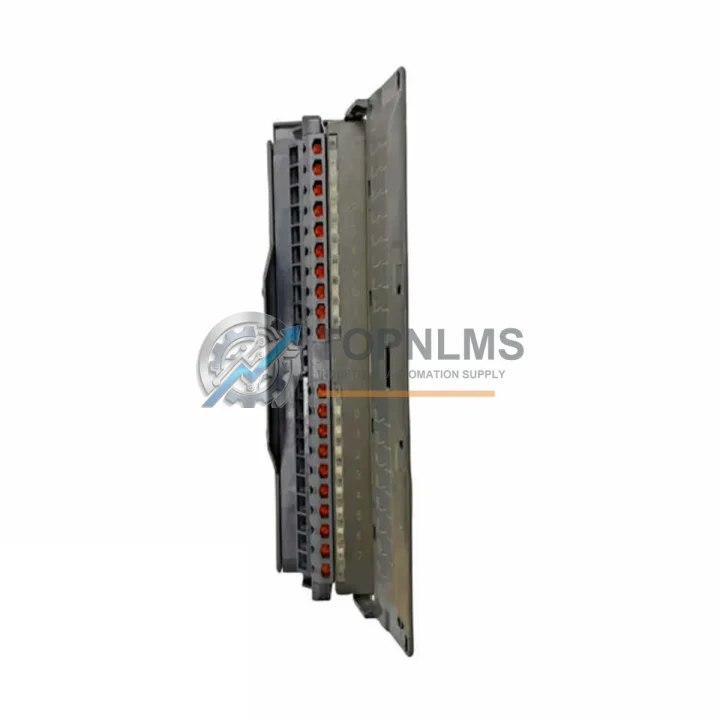

Siemens 6ES7321-1BH02-0AA0 Replacement for S7-300 SM321: Seamless Migration & Upgrade Solution

The Siemens 6ES7321-1BH02-0AA0 is a 16-channel digital input module (SM321) designed for the SIMATIC S7-300 programmable logic controller platform. As legacy S7-300 systems approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units or plan structured migration paths to current-generation platforms. This product page addresses both scenarios: direct drop-in replacement of the 6ES7321-1BH02-0AA0 within an existing S7-300 rack, and guided upgrade pathways to the SIMATIC S7-1500 or ET 200SP distributed I/O architecture.

Whether your facility operates a legacy S7-315, S7-317, or S7-319 CPU with multiple SM321 input modules installed across a central rack or expansion rack, sourcing a tested and warranted 6ES7321-1BH02-0AA0 is the fastest way to restore production continuity. Our stock is inspected, function-tested, and shipped with full documentation to support your maintenance team’s installation and commissioning process.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging S7-300 system to a modern control architecture involves more than swapping a single input module. The 6ES7321-1BH02-0AA0 typically operates alongside a range of companion components that must be evaluated as part of any retrofit or upgrade project.

In a standard S7-300 central rack, the SM321 module shares the backplane with the CPU — commonly an S7-315-2 DP (6ES7315-2AH14-0AB0) or S7-317-2 DP (6ES7317-2AK14-0AB0) — and draws its 24VDC logic supply from a dedicated PS307 power supply module (6ES7307-1EA01-0AA0). The front connector (6ES7392-1AM00-0AA0) carries all 16 field wiring terminations and can be unplugged and transferred to a replacement SM321 module without disturbing field cables, making like-for-like replacement the lowest-risk option for minimizing unplanned downtime.

For plants running PROFIBUS DP networks, the S7-300 CPU communicates with remote I/O stations via DP interface modules such as the IM153-2 (6ES7153-2BA02-0XB0), which connects ET 200M distributed I/O racks. If your site already uses ET 200M racks populated with SM321 modules, the 6ES7321-1BH02-0AA0 is a direct replacement in those remote stations as well, with no changes required to the DP network configuration or GSD file assignments.

When planning a phased migration toward the S7-1500 platform, engineers often begin by replacing the CPU while retaining existing S7-300 I/O racks through a PROFIBUS DP coupling — using the S7-1500 DP master interface alongside legacy SM321 modules during a transition period. This approach allows field wiring, signal isolation, and I/O channel assignments to remain unchanged while the control program is migrated and validated in TIA Portal. Signal isolators and terminal blocks from the existing control cabinet can typically be retained without modification.

For new installations or full rack replacements, the ET 200SP platform offers a compact alternative. A single IM155-6 PN ST interface module (6ES7155-6AU01-0BN0) can host multiple DI 16x24VDC BaseUnit assemblies, replacing an entire S7-300 expansion rack in a fraction of the panel space. The PROFINET connection back to the S7-1500 CPU eliminates the need for PROFIBUS DP cabling infrastructure. In this scenario, the SM321 16DI module is superseded, but the field wiring termination philosophy — 24VDC sourcing inputs, grouped commons — remains consistent, simplifying the rewiring process.

Ancillary components commonly required during S7-300 maintenance or migration include the MPI/PROFIBUS programming cable (6ES7972-0CB20-0XA0) for connecting a laptop running STEP 7 to the CPU’s MPI port, replacement IM360/IM361 interface modules (6ES7360-3AA01-0AA0 / 6ES7361-3CA01-0AA0) for multi-rack S7-300 configurations, and SIMATIC HMI panels such as the TP700 Comfort (6AV2124-0GC01-0AX0) for operator interface upgrades. Each of these components can be sourced through TOPNLMS with the same 12-month warranty and pre-shipment testing guarantee.

Retrofit Guidance FAQ

Q: Can I replace the 6ES7321-1BH02-0AA0 without modifying my STEP 7 program?
A: Yes. The SM321 16DI 24VDC module is a direct hardware replacement. The module occupies the same slot address in the hardware configuration. As long as the replacement unit is the same order number (6ES7321-1BH02-0AA0), no changes to the STEP 7 hardware configuration or symbol table are required. Simply power down the rack, remove the front connector, swap the module, reattach the front connector, and power up.

Q: Is the existing 24VDC field wiring compatible with the replacement module?
A: Yes. The 6ES7321-1BH02-0AA0 uses the standard 40-pin S7-300 front connector (6ES7392-1AM00-0AA0). All field wiring terminates on this connector, which is mechanically detachable from the module body. The replacement module accepts the same connector without any rewiring. Input signal polarity, common grouping (8 channels per common), and IEC Type 1 input characteristics are identical.

Q: What communication protocol does the SM321 use, and is it affected by the replacement?
A: The SM321 communicates via the S7-300 internal backplane bus (K-bus). It does not have an independent network address. Communication is managed entirely by the CPU through the rack’s backplane. Replacing the module does not affect PROFIBUS DP, MPI, or Industrial Ethernet configurations on the CPU or IM modules.

Q: My S7-300 rack has limited space. Will the replacement module fit?
A: The 6ES7321-1BH02-0AA0 has a standard S7-300 single-slot form factor (40 mm wide). It occupies exactly one slot in any S7-300 rack (UR1, UR2, ER1, or ER2). No additional mounting hardware or panel modifications are required.

Q: Can this module be used in an ET 200M remote I/O station?
A: Yes. The SM321 16DI 24VDC module is fully compatible with ET 200M racks connected via IM153-2 interface modules on a PROFIBUS DP network. The module’s GSD-based configuration in STEP 7 or TIA Portal remains unchanged.

Q: What if I need to migrate to S7-1500 in the future?
A: Siemens provides a Migration Tool within TIA Portal that can import STEP 7 Classic projects and assist with hardware reconfiguration. During the transition period, S7-1500 CPUs can communicate with legacy S7-300 I/O via PROFIBUS DP, allowing a phased migration without a full cutover. TOPNLMS can supply both legacy S7-300 spares and current-generation S7-1500 / ET 200SP components to support your migration roadmap.

Warranty Assurance

Every 6ES7321-1BH02-0AA0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification of all 16 input channels, backplane connector integrity check, and firmware version confirmation. Units are packed in anti-static ESD-safe packaging with individual serial number documentation.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. Response time for warranty inquiries is within 1 business day.

Shipping is available worldwide from our Xiamen warehouse. Standard lead time for in-stock units is 3–7 business days for international destinations. Express DHL/FedEx options are available for urgent replacement requirements. All export documentation, including commercial invoice, packing list, and certificate of origin, is provided with each shipment.

For bulk procurement, OEM partnerships, or system integrator pricing, please contact our sales team directly.
