Siemens 6ES7231-4HD32-0XB0 Replacement for S7-1200

Product Overview

Siemens 6ES7231-4HD32-0XB0 Replacement for S7-1200: Smooth Migration from Legacy Analog I/O Systems

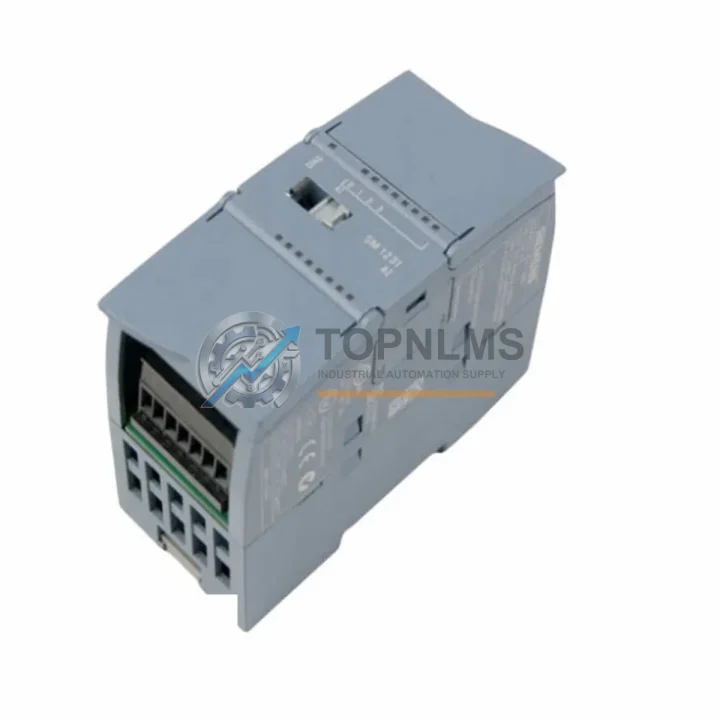

The Siemens 6ES7231-4HD32-0XB0 SM 1231 AI 4×16Bit analog input module is the definitive upgrade path for plant engineers and system integrators retiring legacy S7-200 EM 231 expansion modules, S7-300 SM 331 analog cards, and third-party analog I/O solutions from discontinued control platforms. Delivering 16-bit resolution across four independently configurable differential input channels — supporting ±10 V, ±5 V, ±2.5 V, 0–20 mA, and 4–20 mA — this module slots directly into any S7-1200 CPU rail and is fully managed through TIA Portal V13 SP1 or later, making it the preferred replacement for aging analog infrastructure in process, manufacturing, and utilities applications.

Wiring compatibility is the first concern in any brownfield retrofit. The SM 1231 uses a 20-pin removable screw terminal block with 2.5 mm² conductor capacity, mapping cleanly to standard shielded twisted-pair field wiring from legacy 4–20 mA loop-powered transmitters, pressure sensors, and flow meters. Engineers migrating from the S7-200 EM 231 analog expansion module will find that existing field cables can be re-terminated with minimal re-labelling, provided shield grounding is moved to the module terminal per IEC 61131-2 practice. For installations previously using the S7-300 SM 331 with 40-pin front connectors, a wiring adapter or re-termination to the SM 1231’s 20-pin block is required — a one-time effort that eliminates the ongoing cost of sourcing discontinued SM 331 spare parts. The module installs on the same DIN rail as the CPU 1214C, CPU 1215C, or CPU 1217C, occupying only 45 mm of horizontal rail space and fitting comfortably alongside the SM 1222 digital output module and SM 1223 mixed I/O module in compact cabinet layouts.

Program migration is a structured but manageable task. The SM 1231 returns raw analog values in the range –27,648 to +27,648 for bipolar input ranges and 0 to 27,648 for unipolar ranges — consistent with S7-300/400 conventions and directly compatible with TIA Portal’s NORM_X and SCALE_X instruction blocks. Engineers migrating from S7-200 MicroWIN programs will need to adjust scaling logic, as the EM 231 used a 0–32,000 count range. The hardware configuration in TIA Portal replaces the legacy STEP 7 Classic hardware catalog entry, and channel parameterization — input range, filter time, overflow response — is handled entirely within the device properties dialog, eliminating the need for separate analog parameter data blocks used in older S7-300 configurations.

Communication architecture is a critical migration decision point. The 6ES7231-4HD32-0XB0 communicates over the S7-1200’s integrated I/O bus, with analog data accessible to PROFINET-connected SCADA systems and HMI panels without any additional gateway hardware. Installations retaining a PROFIBUS DP field network can add the CM 1243-5 PROFIBUS DP Master module to the CPU rack, allowing the new analog input module to coexist with legacy PROFIBUS field devices — remote I/O stations, variable frequency drives, and intelligent transmitters — during a phased cutover that avoids a single-day full system replacement. For sites using Modbus RTU to communicate with legacy energy meters, motor protection relays, or third-party controllers, the CM 1241 RS485 serial communication module provides the protocol bridge, keeping existing Modbus device wiring intact while the analog I/O infrastructure is modernized. PROFINET-based HMI replacement is handled by a KTP700 Basic PN (6AV2123-2GB03-0AX0) or KTP900 Basic PN panel connected directly to the CPU’s onboard PROFINET port, replacing discontinued OP7, TP177, or MP277 operator panels that are no longer supported under current TIA Portal versions.

Power supply compatibility is straightforward. The SM 1231 draws 45 mA from the 5 VDC backplane bus (supplied by the CPU) and 4 mA from the 24 VDC field supply, well within the capacity of standard SITOP PSU100S 24V/5A (6EP1334-2BA20) power supply units already installed in most S7-1200 panels. No additional power supply upgrade is required for a single-module replacement, and a four-module I/O cluster — CPU plus three signal modules — remains within the SITOP 5A rating with margin for field sensor loop current. This predictable power budget simplifies cabinet modification planning and avoids the need for panel power audits before installation.

For broader analog I/O modernization projects, the 6ES7231-4HD32-0XB0 integrates naturally with the full S7-1200 signal module ecosystem. Temperature measurement channels are handled by the SM 1231 TC 4×Type J/K/T thermocouple input module, sharing the same TIA Portal hardware tree and CPU rail. Analog output signals for control valve positioners and drive speed references are provided by the SM 1232 AQ 2×14Bit analog output module. Where mixed analog and digital I/O density is required in a single slot, the SM 1234 AI 4/AQ 2×14Bit combined module reduces rail footprint. Drive integration for SINAMICS G120 or SINAMICS V20 variable frequency drives is achieved over PROFINET using the drive’s onboard PN interface, with the SM 1231 analog input serving as a manual speed reference or process feedback channel during commissioning and fallback operation. Signal isolation for high-noise environments — common in motor control centers and switchgear panels — is addressed by adding DIN-rail mounted signal isolators between field transmitters and the SM 1231 input terminals, a practice that also protects the module from ground loop currents in large plant installations.

From a procurement standpoint, sourcing the 6ES7231-4HD32-0XB0 through TOPNLMS provides verified stock with pre-shipment functional testing, original Siemens packaging, and CE/UL markings intact for incoming inspection records. Standard lead time from our Xiamen warehouse is 3–7 business days for most destinations, with express DHL and FedEx options for urgent line-down situations. Every unit ships with a packing list and test record. Our technical team is available at [email protected] and +86 18359293191 for pre-sales compatibility queries, order status, and warranty support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete migration to the 6ES7231-4HD32-0XB0 typically involves coordinating several related modules and components. On the digital I/O side, the SM 1222 DQ 8×Relay handles discrete output control for contactors, solenoid valves, and pilot lights, while the SM 1223 DI 8/DQ 8×24VDC consolidates mixed digital signals in a single slot — both mounting on the same CPU rail as the SM 1231 and sharing a unified TIA Portal hardware configuration. For temperature measurement alongside process analog signals, the SM 1231 TC 4×Type J/K/T thermocouple module adds four temperature input channels without requiring a separate CPU or rack. Analog output for control valve positioners and variable frequency drive speed references is provided by the SM 1232 AQ 2×14Bit module, completing a full analog I/O upgrade within a single DIN-rail section. Where PROFIBUS field devices must be retained during a phased migration, the CM 1243-5 PROFIBUS DP Master module bridges legacy instruments and drives into the new S7-1200 architecture, while the CM 1241 RS485 module maintains Modbus RTU links to energy meters and motor protection relays. Panel power is reliably supplied by the SITOP PSU100S 24V/5A (6EP1334-2BA20), which provides regulated 24 VDC with diagnostic output for the entire I/O cluster. Operator interface migration is completed with a KTP700 Basic PN (6AV2123-2GB03-0AX0) or KTP900 Basic PN touch panel connected via PROFINET, replacing discontinued OP and TP series panels. For high-noise environments such as motor control centers, DIN-rail signal isolators between field transmitters and the SM 1231 input terminals protect measurement integrity and eliminate ground loop interference — a low-cost addition that significantly improves long-term reliability in demanding industrial settings.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from my S7-200 EM 231 installation?
A: In most cases, yes. The SM 1231 uses a removable 20-pin terminal block with standard 2.5 mm² screw terminals. Existing shielded twisted-pair field cables can typically be re-terminated directly. Verify that shield grounding is connected at the module terminal rather than at the cabinet earth bar, as required by the SM 1231 installation guidelines.

Q: Do I need to rewrite my analog scaling blocks in the PLC program?
A: A partial update is required for S7-200 migrations. The SM 1231 uses the same –27,648 to +27,648 raw value convention as S7-300/400, so S7-300 program migrations require minimal scaling changes. S7-200 programs using the 0–32,000 EM 231 count range will need normalization and scaling function block updates in TIA Portal.

Q: Is the module compatible with PROFIBUS DP networks?
A: The SM 1231 communicates over the S7-1200 I/O bus, not PROFIBUS directly. To retain PROFIBUS connectivity for legacy field devices, add the CM 1243-5 PROFIBUS DP Master module to the CPU rack. Analog input data is then accessible to PROFIBUS master devices via the CPU’s data exchange mechanism.

Q: How much DIN-rail space does the module require?
A: The SM 1231 requires 45 mm of horizontal DIN-rail space. A typical upgrade assembly — CPU 1214C (110 mm) plus three signal modules (3 × 45 mm) — occupies approximately 245 mm, fitting within a standard 300 mm wide cabinet section without panel modification.

Q: What is the recommended commissioning sequence for a live system cutover?
A: Configure and test the new S7-1200 rack offline using TIA Portal simulation, then run the new and legacy systems in parallel for at least one production shift before final cutover. Verify analog channel scaling, alarm thresholds, and SCADA tag mapping before disconnecting the legacy module to ensure zero-gap transition.

Q: What physical installation clearances are required?
A: The SM 1231 requires a minimum 25 mm clearance above and below the module for ventilation and cable routing. No side clearance is required between adjacent signal modules on the same CPU rail.

Warranty Assurance

Every 6ES7231-4HD32-0XB0 unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Pre-shipment testing includes channel isolation verification, input range calibration check, and firmware revision confirmation against the current Siemens production standard. Units that fail incoming inspection are quarantined and not dispatched. In the event of a warranty claim, TOPNLMS dispatches a replacement unit within 5 business days of fault confirmation — with no requirement to return the defective unit before the replacement ships for critical line-down situations. All units ship in anti-static packaging with original Siemens labelling, CE/UL markings, packing list, and test record intact for your incoming inspection and quality documentation. Our after-sales team is reachable at [email protected] and +86 18359293191 for technical pre-sales queries, order status, and warranty processing.
