Siemens 6ES7214-1AG40-0XB0 Ruggedized PLC CPU Module for Harsh Environments

Product Overview

Siemens 6ES7214-1AG40-0XB0 Ruggedized PLC CPU Module for Harsh Environments

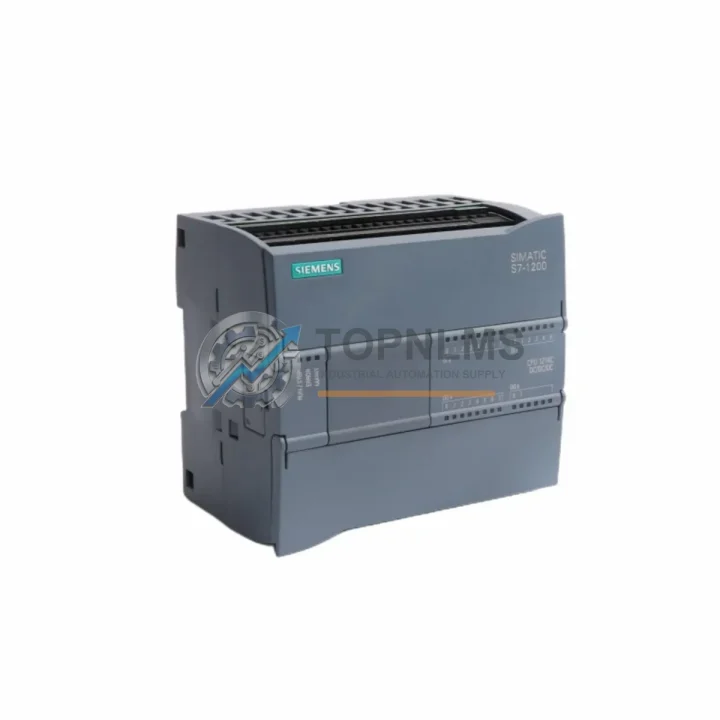

The Siemens 6ES7214-1AG40-0XB0 is a high-performance compact CPU module from the SIMATIC S7-1200 series, engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed as the CPU 1214C with a DC/DC/DC power configuration, this controller integrates seamlessly into control architectures where uptime is non-negotiable — from continuous process lines to safety-critical infrastructure. Whether deployed in high-temperature enclosures, vibration-prone machinery, or environments with significant electromagnetic interference, the 6ES7214-1AG40-0XB0 maintains stable, deterministic control performance that industrial engineers depend on.

Built to IEC 61131-3 programming standards and compliant with CE, UL, and cULus certifications, this CPU module is a cornerstone component for engineers specifying rugged automation solutions across oil and gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing sectors. Its compact form factor belies a robust internal architecture capable of handling complex ladder logic, function block diagrams, and structured text programs with consistent scan-cycle precision.

Rugged Specifications Table

Comprehensive Protection Solutions

The 6ES7214-1AG40-0XB0 CPU is rarely deployed in isolation. In a fully integrated SIMATIC S7-1200 control cabinet, it operates alongside a range of complementary modules that collectively ensure system-wide protection and operational continuity. The SM 1221 digital input module (6ES7221-1BF32-0XB0) and SM 1222 digital output module (6ES7222-1HF32-0XB0) extend the I/O capacity of the CPU, enabling precise field-device interfacing even in high-noise environments. For analog signal acquisition in process-intensive applications, the SM 1231 analog input module (6ES7231-4HD32-0XB0) provides 4-channel, 16-bit resolution measurement with strong common-mode rejection.

Power integrity is maintained through the SITOP PSU100S 24 V / 10 A power supply (6EP1334-2BA20), a regulated DIN-rail unit designed to sustain stable DC bus voltage even under fluctuating load conditions or mains disturbances common in heavy industrial facilities. Communication resilience is addressed by the CM 1241 RS485 communication module (6ES7241-1CH32-0XB0), which enables MODBUS RTU and USS protocol connectivity to variable frequency drives, remote I/O stations, and third-party field devices over shielded twisted-pair cabling.

For safety-critical applications, the SIRIUS 3SK1 safety relay module can be integrated into the same control panel to provide hardwired emergency-stop and safety-gate monitoring independent of the PLC program — a critical layer of protection in machinery directive-compliant installations. The 6ES7288-3AE04-0AA0 analog expansion module (compatible via the S7-200 SMART cross-platform strategy) and SIMATIC HMI KTP700 Basic (6AV2123-2GB03-0AX0) operator panel round out a complete, field-proven control solution. Terminal block assemblies from the SIMATIC S7-1200 bus connector series and Phoenix Contact PTFIX distribution blocks ensure clean, vibration-resistant wiring within the enclosure — a detail that directly impacts long-term reliability in mobile or high-vibration plant environments.

Application in Critical Infrastructure

In oil and gas upstream operations, the 6ES7214-1AG40-0XB0 is deployed in wellhead control panels and pipeline SCADA outstations where ambient temperatures fluctuate widely, power quality is inconsistent, and maintenance access is infrequent. Its wide storage temperature range (−40 °C to +70 °C) and robust EMC immunity make it a preferred choice for remote automation enclosures exposed to desert heat or arctic cold.

In mining and mineral processing, this CPU module controls conveyor drive sequencing, crusher interlock logic, and slurry pump automation — applications characterized by severe vibration, airborne particulate contamination, and high-current motor switching that generates significant conducted and radiated interference. The S7-1200’s proven EMI immunity under EN 61000-6-2 ensures that control logic remains unaffected by these disturbances.

In power generation and substation automation, the module integrates with protection relay systems and bay controllers via PROFINET or MODBUS TCP, providing fast-response interlocking and alarm management. Water treatment facilities rely on the CPU 1214C for dosing pump sequencing, filtration cycle control, and SCADA data aggregation — environments where continuous 24/7 operation and long mean-time-between-failure (MTBF) are procurement requirements, not aspirations.

In metallurgy and steel production, the 6ES7214-1AG40-0XB0 manages furnace temperature control loops, rolling mill synchronization, and cooling water interlock systems — all in the presence of intense radiated heat, electromagnetic fields from large induction equipment, and mechanical shock from heavy press operations. Its shock resistance rating (25 g, 6 ms per IEC 60068-2-27) is not a laboratory specification — it is a field-validated performance benchmark.

Security & Quality FAQ

Q1: What warranty coverage is provided for the 6ES7214-1AG40-0XB0?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each module undergoes pre-shipment functional testing including power-on verification, I/O channel continuity checks, and firmware version confirmation. If a unit fails within the warranty period under normal operating conditions, we provide replacement or full refund — no bureaucratic delays.

Q2: How do you verify authenticity and compatibility before shipment?
Every 6ES7214-1AG40-0XB0 unit is inspected for genuine Siemens labeling, firmware revision, and hardware revision markings consistent with the AG40 production batch. Compatibility is confirmed against the SIMATIC S7-1200 system manual for firmware V4.x and above. We do not supply grey-market or refurbished units without explicit disclosure — our sourcing is traceable and documented.

Q3: Is long-term supply availability guaranteed for ongoing production line maintenance?
Yes. TOPNLMS maintains buffer stock of high-demand SIMATIC S7-1200 CPU modules including the 6ES7214-1AG40-0XB0 to support customers with ongoing spare-parts programs, planned maintenance shutdowns, and emergency replacement requirements. We can accommodate blanket purchase orders and scheduled delivery programs for facilities requiring predictable spare-part availability.

Q4: What are the shipping and lead time expectations?
In-stock units are dispatched within 1–3 business days from our Xiamen, China facility. International shipments are handled via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking and commercial invoice documentation for customs clearance. For urgent plant-down situations, same-day dispatch is available upon request before 14:00 CST.
